Ukrainian Railway series ВЛ40У

Ukraine 2004 48 produced

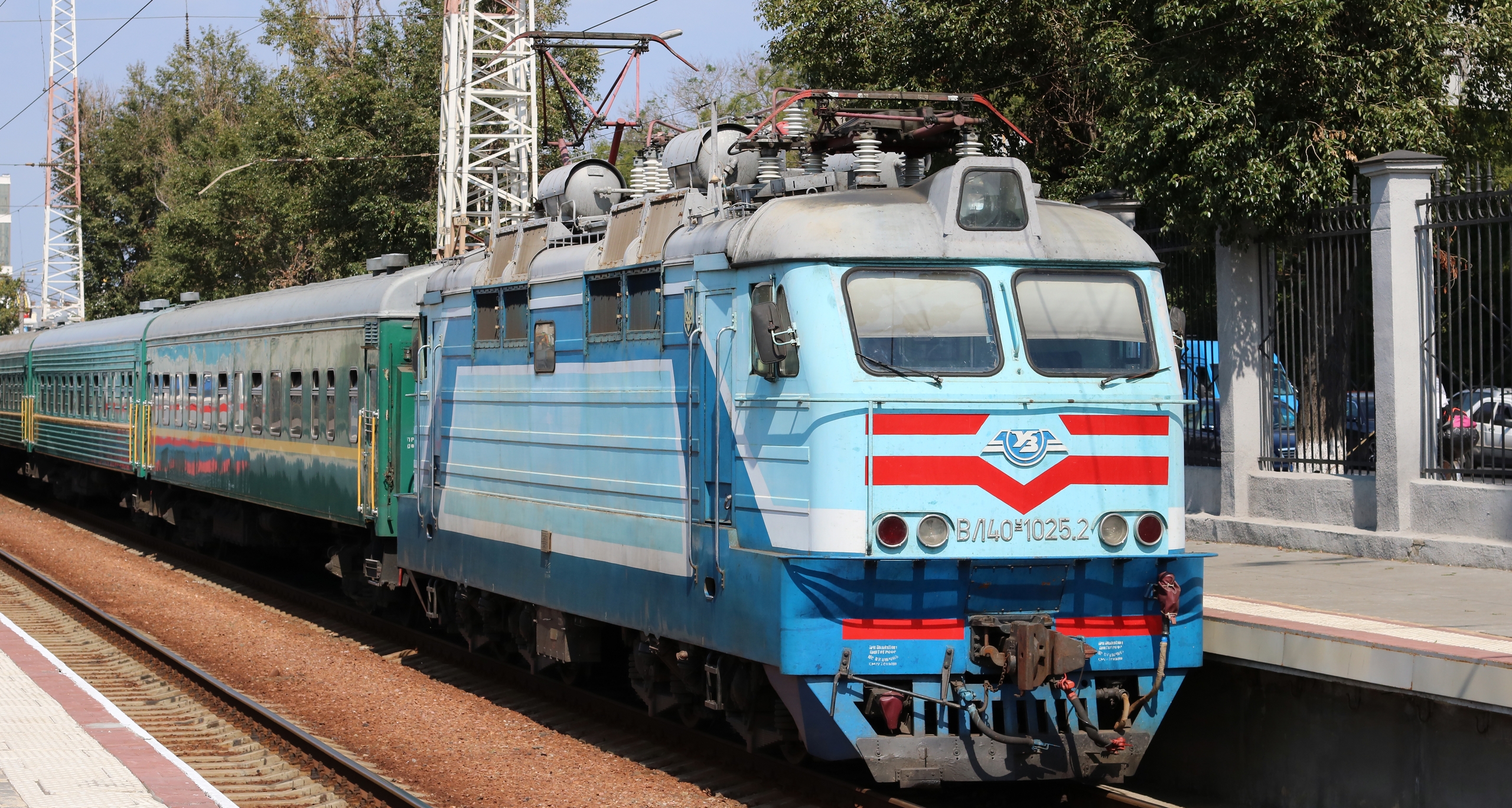

ВЛ40У-1025 in September 2017 at Odessa George Chernilevsky CC BY-SA 4.0

In order to solve their shortage of passenger locomotives, Ukrainian Railways started to rebuild halves of their ВЛ80T two-section locomotives into separate locomotives in 2004. They equipped each half with two new cabs similar to those of more modern locomotives and with updated control equipment. The railway's own shops at Zaporizhzhia and Lviv created a total of 48 new locomotives of the new type ВЛ40У. They are being used on flatter main lines, as they do not have enough power for steeper lines.

Technical data

General

Built
ab 2004
Manufacturers
Zaporizhzhia, Lviv
Wheel arrangement
B-B
Gauge
1,520 mm (Russian broad gauge)

Dimensions and weights

Length
16.42 m
Service weight
92 t
Adhesive weight
92 t
Axle load
23 t

Power

Power source
electric - AC
Continuous power
2,960 kW (4,024 PS)
Top speed
110 km/h

Calculated values

Power-to-weight ratio
32.2 kW/t
Adhesive weight/Total
1 : 1.00
