Translok DH 440
DB AG 350 001
go back
Germany | 1993
3 produced

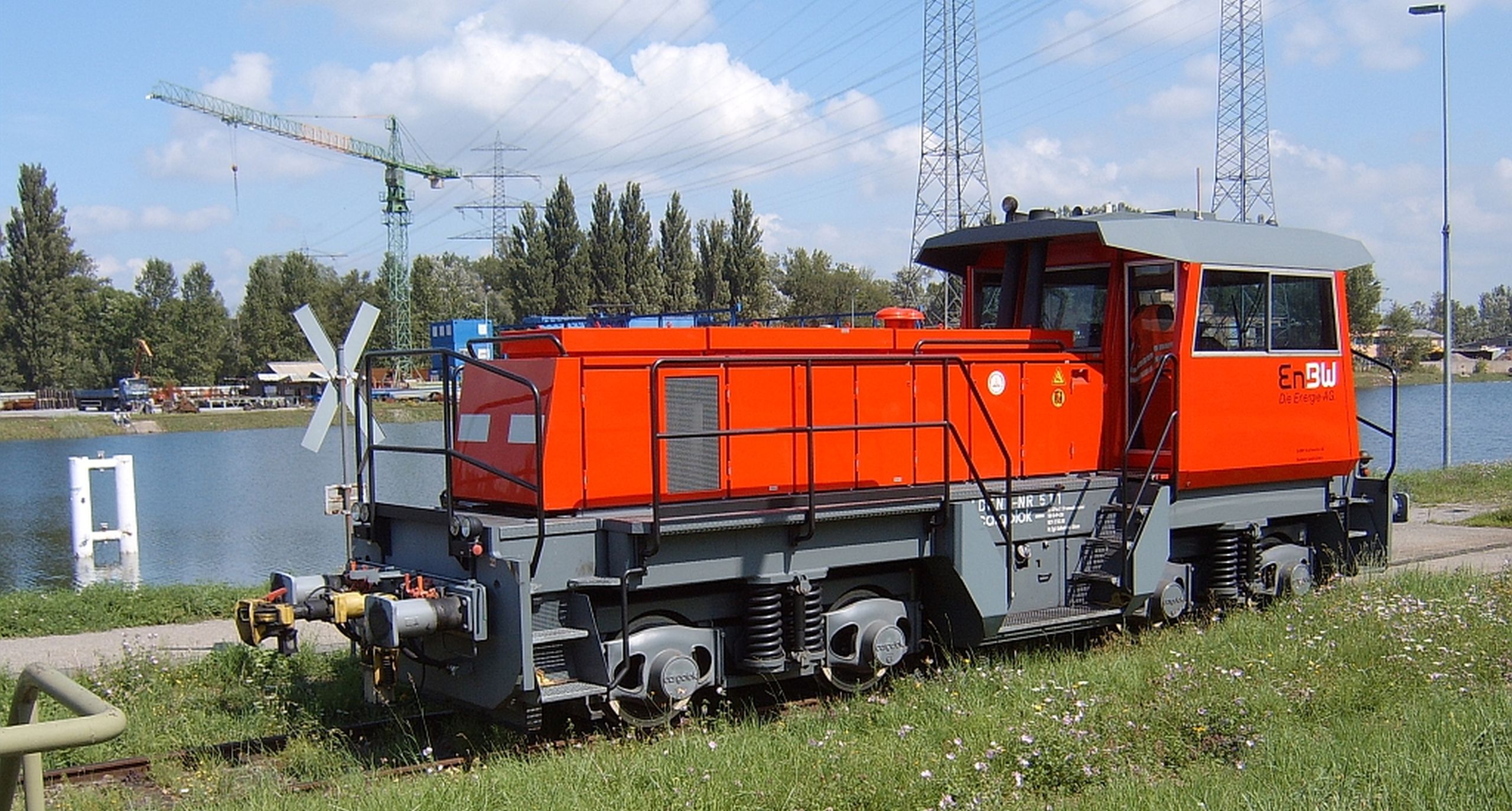

EnBW 350 001 in August 2005 at Karlsruhe
EnBW 350 001 in August 2005 at Karlsruhe
Joachim Lutz

The company of Allrad-Rangiertechnik in North Rhine-Westphalia was a manufacturer of road-rail vehicles which had the distinction that each wheel was powered by a separate hydraulic motor. In the nineties, they also started to offer the DH 440 “cargo-Lok” as a conventional shunting locomotive that also used the same propulsion technology. It had a Deutz diesel engine that provided 370 kW. As many parts as possible had been taken from truck building.

Three prototypes were delivered to Deutsche Bahn, to the Augsburger Localbahn and to the Swiss Varo Energy AG. Due to many problems which were found during testing, no additional locomotives were ordered. The project was cancelled in 1999 when the owner of the company died and Allrad-Rangiertechnik became part of Translok.

General
Built1993
ManufacturerAllrad-Rangiertechnik
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length35 ft 9 1/8 in
Service weight123,459 lbs
Adhesive weight123,459 lbs
Axle load30,865 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed31 mph
Starting effort18,434 lbf
EngineDeutz
Engine type6-cyl. diesel
Engine output496 hp (370 kW)
Calculated Values
diesel locomotive
switcher
prototype
last changed: 09/2026
