China Railway SS9
China | 1998 | 214 produced

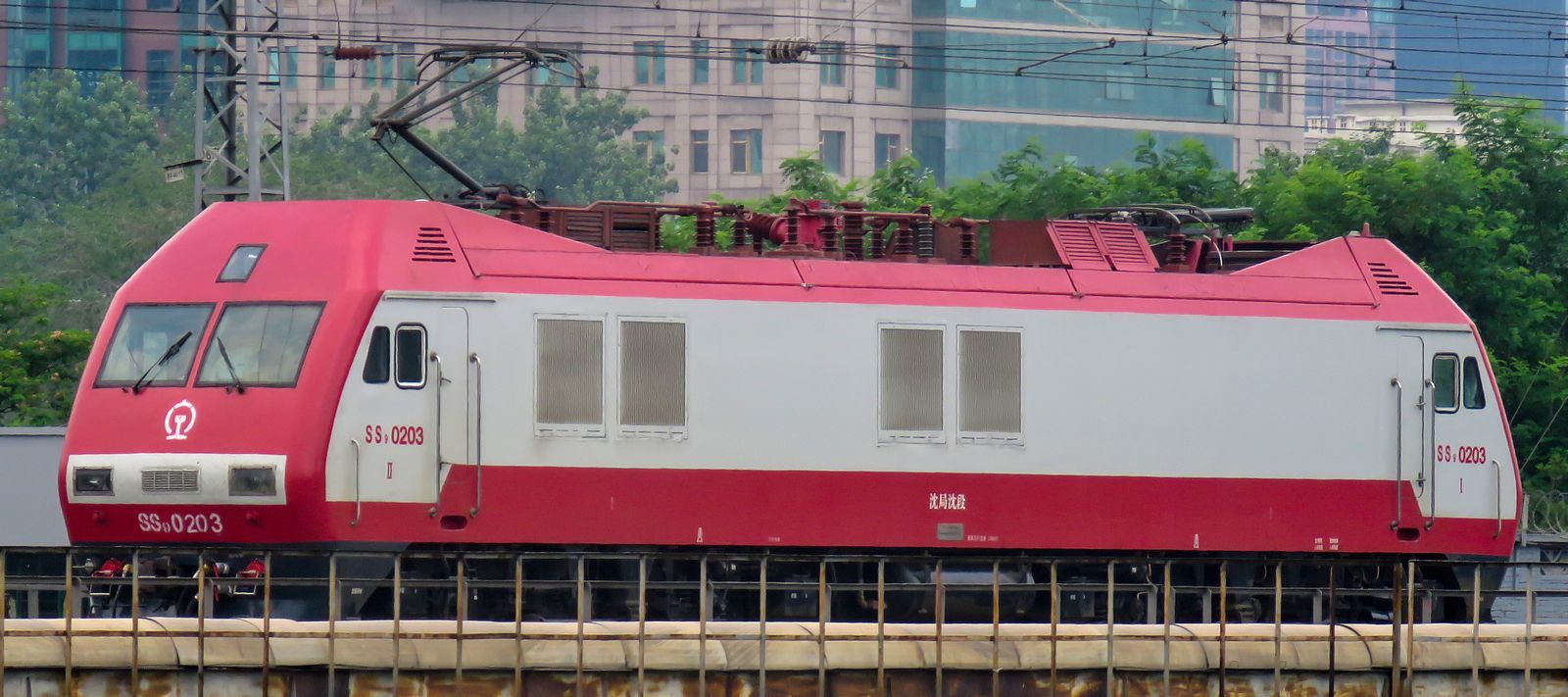

SS9-0203 in June 2018 in Beijing
SS9-0203 in June 2018 in Beijing
N509FZ
General
Built1998-2006
ManufacturerZhuzhou Electric Locomotive Works
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length72 ft 10 5/8 in
Service weight277,782 lbs
Adhesive weight277,782 lbs
Axle load47,399 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power7,242 hp (5,400 kW)
Continuous power6,437 hp (4,800 kW)
Top speed106 mph
Starting effort64,295 lbf
Calculated Values
electric locomotive
passenger
last changed: 09 2023
