Stadler Rail Euro DuFour
Swiss Federal Railways Re 494 and Rea 494
go back
Switzerland | 2026
more than 36 produced

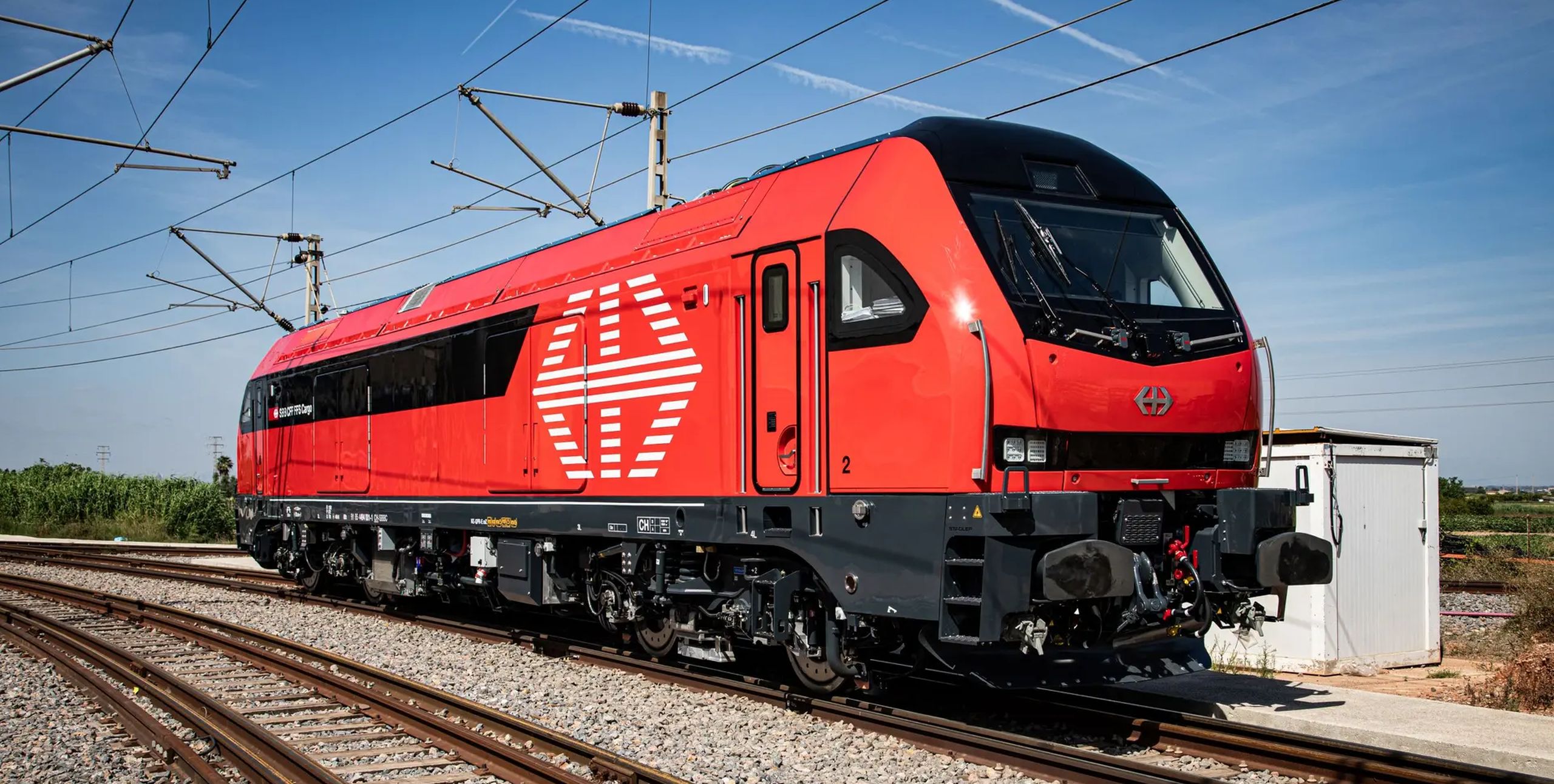

Image of locomotive
Stadler

The Euro DuFour is a four-axle electric locomotive that can be equipped with either a battery pack with an output of 2,000 kW or a 1,000 kW diesel engine to bridge non-electrified tracks. Under overhead lines it can operate on all four standard voltages in Europe and deliver up to 7,000 kW. The locomotive body is constructed as a lightweight monocoque and the bogies feature an integrated steering system to reduce the impact on the rails in tight curves. The top speed can be configured as 160 or 230 km/h depending on the role.

The first customer was SBB Cargo who plans to replace all older locomotives with the Euro DuFour over long term. The first order came in 2024 and included 36 locomotives of which 22 will be equipped with a battery pack for shunting. The pure electric locomotives will be called Re 494 and the battery variant will be Rea 494. Additionally, there are options for 93 more. By now, no orders have been placed for the diesel variant.

VariantElectricElectric + batteryElectric + diesel
General
Builtsince 2026
ManufacturerStadler
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length65 ft 7 3/8 in
Wheelbase46 ft 3 1/8 in
Rigid wheelbase9 ft 6 3/16 in
Service weight176,370 lbs185,188 lbs198,416 lbs
Adhesive weight176,370 lbs185,188 lbs198,416 lbs
Axle load44,092 lbs46,297 lbs49,604 lbs
Boiler
VariantElectricElectric + batteryElectric + diesel
Power Plant
Power
Power sourceelectric - AC/DCelectric - battery + AC/DCelectric - AC/DC + diesel-electric
Electric system15,000 V 16,7 Hz, 25,000 V 50 Hz, 1,500 V, 3,000 V
Continuous power9,387 hp (7,000 kW)
Top speed143 mph99 mph
Starting effort78,683 lbf
Engine output2,682 hp (2,000 kW)1,341 hp (1,000 kW)
Calculated Values
diesel locomotive
electric locomotive
dual power
Batterie
last mile diesel
passenger
freight
three-phase AC
last changed: 08/2026
