Fairbanks-Morse P-12-42
New Haven class EDER-7 and Boston & Maine No. 3100 and 3101
go back
United States | 1957
4 produced

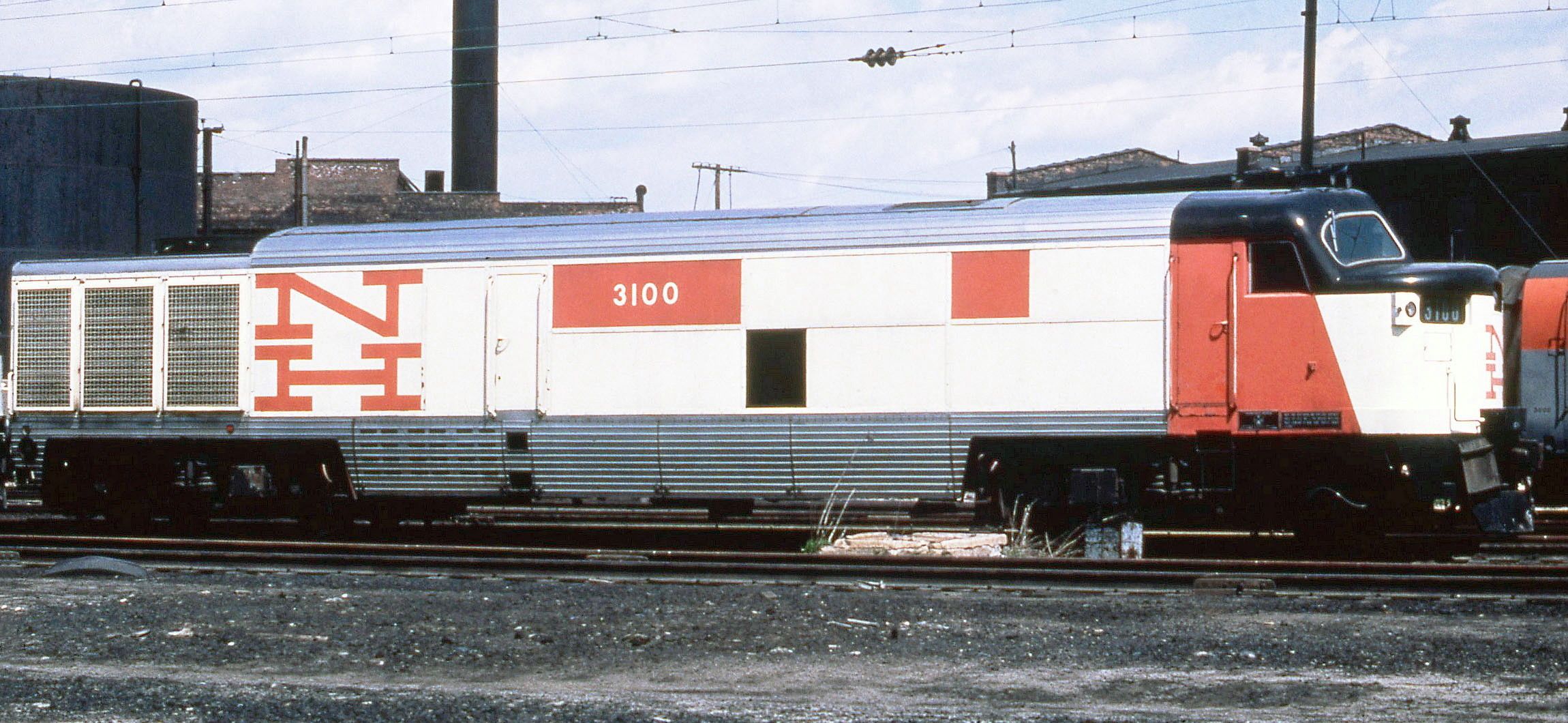

New Haven No. 3100 at New Haven, Connecticut
New Haven No. 3100 at New Haven, Connecticut
Mac Seabree Collection

In the late fifties, Fairbanks-Morse tried to establish a new type of lightweight diesel locomotives for passenger service. Power came from FM's opposed piston diesel engine that delivered 1,600 hp in this case. The prime mover was to be operated at constant RPM, so 400 hp could be used to generate electricity for the train and 1,200 hp were available for traction. The locomotives were optionally offered with contact shoes for operation in non-diesel areas like New York's Grand Central Terminal. The idea was to put one of these locomotives onto each end of a lightweight Talgo train that was to be built in the USA.

The New Haven ordered two for their “John Quincy Adams” train which were classed EDER-7 and got the numbers 3100 and 3101. They had contact shoes, while the two locomotives of the Boston & Maine were diesel-only and numbered 1 and 2. These were used for the train called “Speed Merchant”. The B&M used these units until 1964, but the NH stored their locomotives after a short time and sold their Talgo train to Spain. They were replaced by the EMD FL9 with conventional coaches.

General
Built1957-1958
ManufacturerFairbanks-Morse
Wheel arr.B-2
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length60 ft
Service weight200,000 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC + diesel-electric
Electric system660 V
Continuous power1,200 hp (895 kW)
Top speed117 mph
Starting effort50,000 lbf
EngineFairbanks-Morse 38D-8 1/8
Engine type8-cyl. opposed diesel
Engine output1,600 hp (1,193 kW)
Calculated Values
diesel locomotive
electric locomotive
dual power
passenger
third rail
