State Railway Company Ie

State Railway Company class 25, Imperial-Royal State Railways class 506, and Czechoslovak State Railways class 264.3

Austria 1897 1 produced
PD

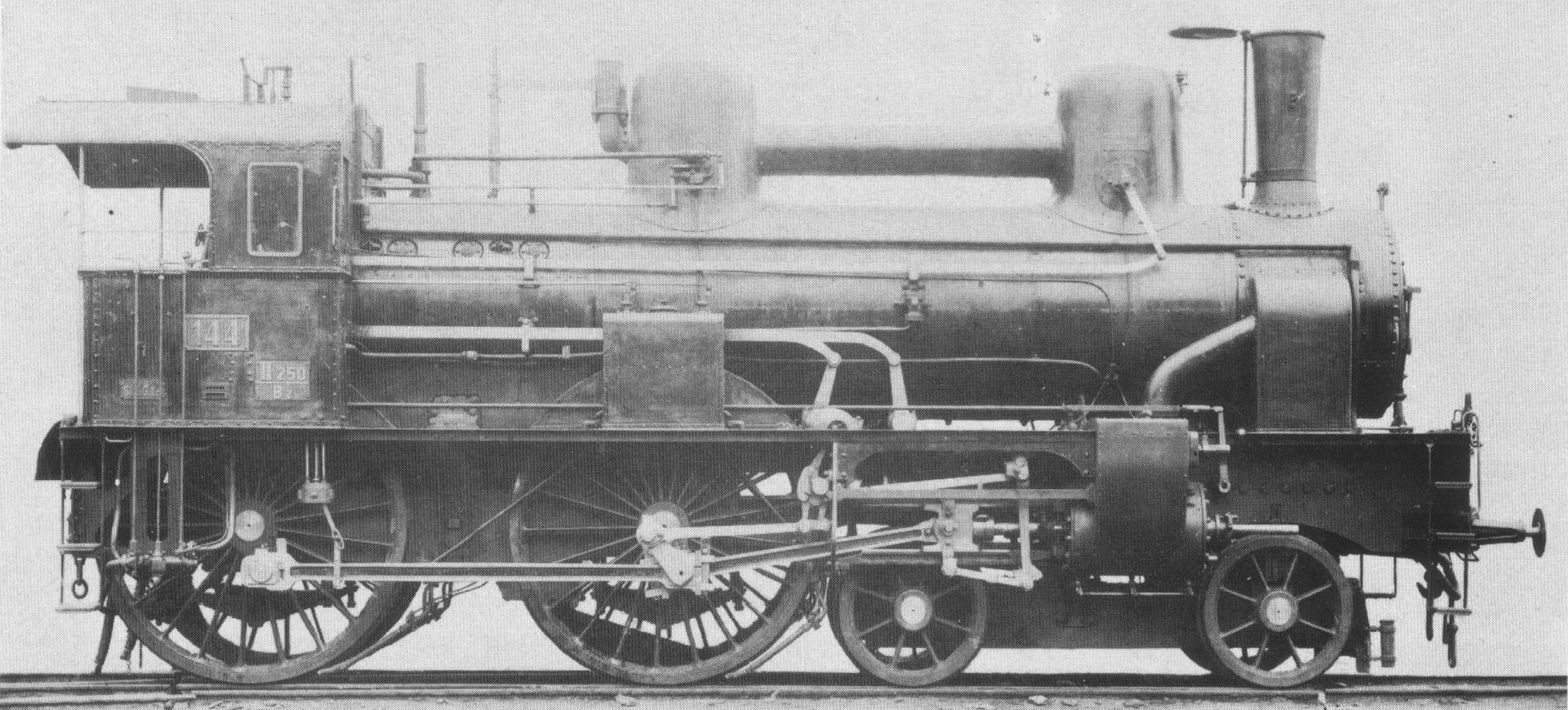

At a time when other railways were changing from two-cylinder simples to two-cylinder compounds, the StEG built a three-cylinder compound 4-4-0 in their own shops. It was completed in 1897 and originally numbered 144. But in the same year, the new scheme made it class 25, with the number 2501. It had drivers of 2,120 mm and a long driving wheelbase of 2,800 mm to ensure good running characteristics. However, its compound system was not convincing so that it was soon used as a two-cylinder simple without its central cylinder working. When the StEG was nationalized in 1907, this single locomotive became kkStB class 506. After World War I, it was still in service in Czechoslovakia. The ČSD used it as 264.301 until 1926.

Technical data

General

Built
1897
Manufacturers
StEG
Wheel arrangement
4-4-0 (American)
Gauge
1,435 mm (Standard gauge)

Dimensions and weights

Length loco
9.96 m
Wheelbase
7.00 m
Rigid wheelbase
2.80 m
Empty weight
47.6 t
Service weight
53.4 t
Adhesive weight
28 t
Axle load
14 t
Total weight
85.4 t
Water capacity
13,500 l
Fuel capacity
5 t (coal)

Boiler

Grate area
2.9 m²
Firebox surface
12 m²
Tube heating surface
153 m²
Evaporative heating surface
165 m²
Total heating surface
165.0 m²

Power plant

Driver diameter
2,120 mm
Boiler pressure
13 bar
Expansion type
compound
Cylinders
three, HP: 470 x 650 mm and LP: 500 x 650 mm

Power

Power source
steam
Estimated power
700 kW (952 PS)
Starting effort
59.6 kN
Starting effort simple
71.5 kN

Calculated values

Factor of adhesion
1 : 3.84
Optimal speed
72 km/h
Power-to-weight ratio
13.1 kW/t
Heating Surface Equivalent
225.0 m²
Cylinder volume/HSE
1 : 1,177.23
Adhesive weight/Total
1 : 1.91
Tractive force/Heating surface
1 : 9.05
Grate area/Heating surface
1 : 56.90
Firebox/Tube surface
1 : 12.75
