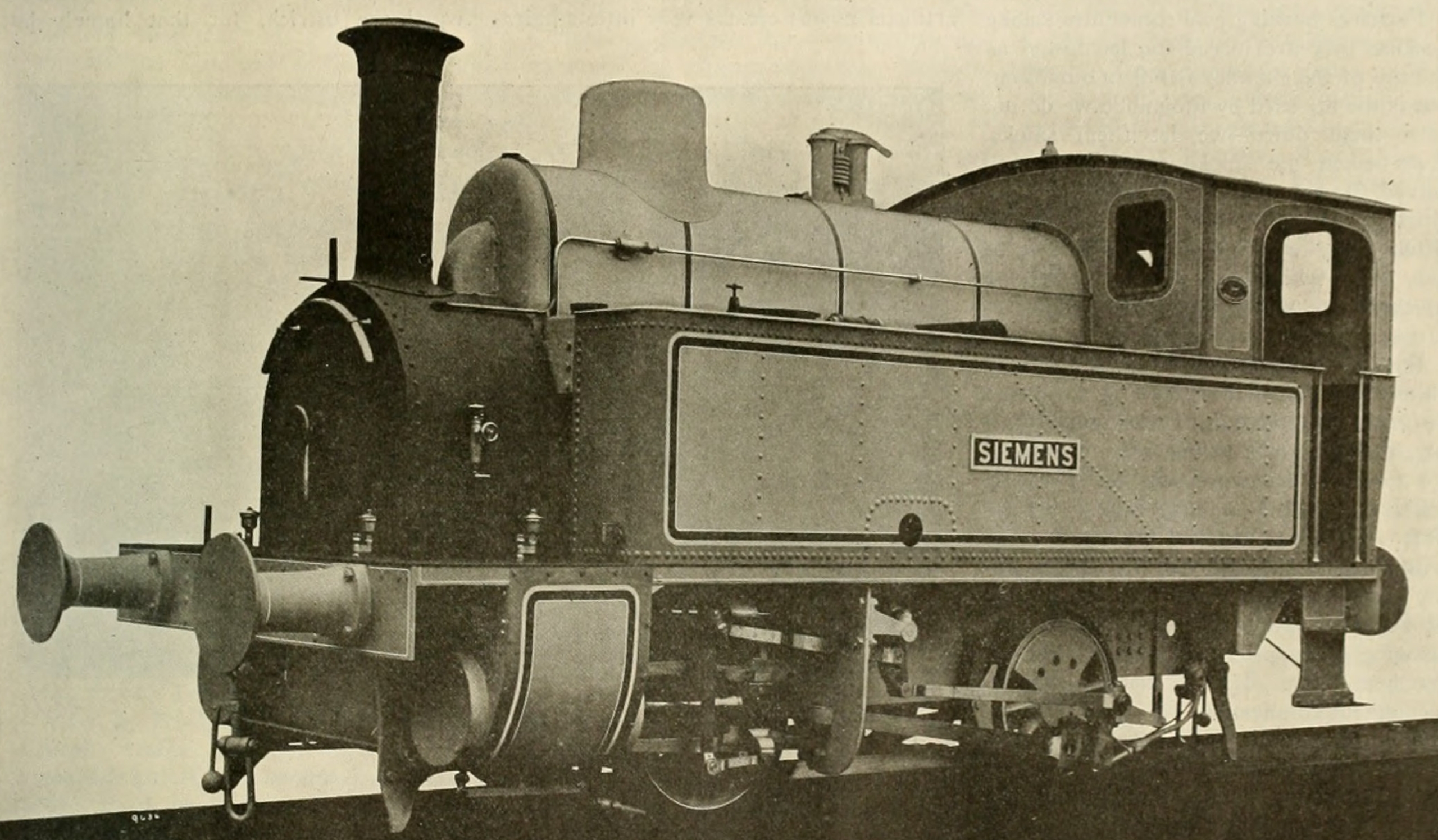

British Mannesmann Tube Co. “Siemens”
Great Britain 1908
This locomotive was the first and most likely only example in Britan with a Brotan boiler. This type of boiler was developed in Austria and featured a firebox with walls made of water tubes and a steam collecting drum at the top. It was ordered by the British Mannesman Tube Company and used their design of seamless tubes. Construction took place at Beyer, Peacock & Co. in 1908. The locomotive had only two axles with drivers of three feet and one inch. Its cylinders measured 14 inches in diameter and 20 inches of stroke. The valve gear was of the Walschaerts type.
Technical data
General
- Built
- 1908
- Manufacturers
- Beyer, Peacock & Co.
- Wheel arrangement
- 0-4-0WT (Four-coupled)
- Gauge
- 1,435 mm (Standard gauge)
Dimensions and weights
- Rigid wheelbase
- 2.29 m
- Total wheelbase
- 2.29 m
- Service weight
- 31 t
- Adhesive weight
- 31 t
- Water capacity
- 3,184 l
Boiler
- Grate area
- 0.855 m²
- Firebox surface
- 7.154 m²
- Tube heating surface
- 62.152 m²
- Evaporative heating surface
- 69.306 m²
- Total heating surface
- 69.3 m²
Power plant
- Driver diameter
- 940 mm
- Boiler pressure
- 12.4 bar
- Expansion type
- simple expansion
- Cylinders
- two, 356 x 508 mm
Power
- Power source
- steam
- Estimated power
- 224 kW (305 PS)
- Starting effort
- 72.1 kN
Calculated values
- Factor of adhesion
- 1 : 4.22
- Optimal speed
- 19 km/h
- Power-to-weight ratio
- 7.2 kW/t
- Heating Surface Equivalent
- 105.1 m²
- Cylinder volume/HSE
- 1 : 960.29
- Adhesive weight/Total
- 1 : 1.00
- Tractive force/Heating surface
- 1 : 21.73
- Grate area/Heating surface
- 1 : 81.06
- Firebox/Tube surface
- 1 : 8.69
