JR Freight class M250
go back
Japan | 2002
2 produced
M250 in service for the Sagawa Express
M250 in service for the Sagawa Express
Rs1421

The M250 was designed for moving light parcels faster than regular freight trains could to. Therefore it is an electric multiple unit that can carry containers at a speed of up to 130 km/h. Each set consists of 16 cars, of which the first two on each end are being powered by four 220 kW three-phase traction motors each. Each of the motors has its own inverter. These cars can only carry a single 31-foot container and have crew and equipment rooms on both ends. For the first time in any vehicle of JR Freight, the cabs had a combined power and brake lever. The twelve flat cars in the middle of the train can carry two 31-foot containers each, what makes a total of 28 containers per train. Kawasaki, Nippon Sharyō and Toshiba built two full sets in 2002 and 2003, along with a total of ten spare cars. They are officially being dubbed “Super Rail Cargo” and are being operated by Sagawa Express between Tokyo and Osaka.

General
Built2002-2003
ManufacturerKawasaki, Nippon Sharyō, Toshiba
Wheel arr.B-B+B-B+2-2+2-2+2-2+2-2+2-2+2-2+2-2+2-2+2-2+2-2+2-2+2-2+B-B+B-B
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length669 ft 11 3/8 in
Length loco66 ft 7 3/16 in
Empty weight895,076 lbs
Service weight1,604,963 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Hourly power4,720 hp (3,520 kW)
Top speed81 mph
Calculated Values
EMU
freight railcar
three-phase AC
last changed: 01/2026
Lokalbahn AG No. 895
German Reichsbahn ET 194
go back
Germany | 1930
only one produced
No. 895 around 1935 in Bad Wörishofen
No. 895 around 1935 in Bad Wörishofen
Eisenbahn-Journal, September 1992

One of the secondary lines in Bavaria operated by the LAG was the one between Türkheim and Bad Wörishofen. This line had already been electrified with 550 V DC when it was opened in 1896. After the original two passenger railcars, the LAG built a two-axle freight railcar from an old baggage car. The electric equipment came from SSW. Like its predecessors, it had two traction motors with 55 kW each and reached a top speed of 40 km/h. The Reichsbahn numbered it ET 194 11. It was in use until 1939 when electric service was discontinued. After this, it came to the Bad Aibling - Feilnbach line, but was only stored until it was finally scrapped in 1947.

General
Built1930
Manufacturermechanical part: LAG, electrical part: SSW
Wheel arr.B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length26 ft 0 3/16 in
Wheelbase11 ft 9 3/4 in
Rigid wheelbase11 ft 9 3/4 in
Service weight31,306 lbs
Adhesive weight31,306 lbs
Axle load20,944 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system550 V
Continuous power110 hp (82 kW)
Top speed25 mph
Starting effort5,395 lbf
Calculated Values
EMU
baggage railcar
secondary line
last changed: 03/2025
Swiss Federal Railways RFe 4/4
later De 4/4
go back
Switzerland | 1940
3 produced

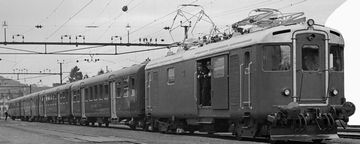

An unmarked RFe 4/4 shortly after delivery in 1940
An unmarked RFe 4/4 shortly after delivery in 1940
SBB Historic

With the introduction of the light steel wagons, the SBB planned to operate the city express train between Geneva and Rorschach with short, light trains. For this purpose, three baggage railcars were initially ordered, which had an output of almost 1,000 kW and a top speed of 125 km/h. Thanks to the BBC spring drive, good suspension properties could be achieved at higher speeds. Since the space required for the electrical equipment was limited due to the relatively low output, there was sufficient space in the car body for the luggage compartment.

During the Second World War the volume of traffic increased sharply and it was not to be expected that it would decrease again after the end of the war. Although the RFe 4/4 had multiple controls and gangways, operation with two or three baggage railcars distributed across the train was not optimal. Thus, the development of a pure, more powerful electric locomotive was commissioned, from which the Re 4/4 I emerged.

Thus, no further orders followed and the three pieces were sold in 1944. Both new operators underwent a conversion of the railcars, during which some problems that had arisen were fixed and the maximum speed was reduced to 90 km/h with a new gear ratio. The weight had increased by 3.5 tonnes. With the conversion, the designation was changed to Fe 4/4 and from 1962 it changed to De 4/4.

The first example with the number 601 ended up on the Bodensee-Toggenburg railway and was used there until 1977. Then it came to the Sihltal-Zürich-Uetliberg-Bahn. It has been used as a historic vehicle since it was sold to the Oensingen-Balsthal-Bahn in 1994.

The other two examples, numbered 602 and 603, were sold to the Swiss Southeast Railway in 1944. Two suitable control cars were built there in order to be able to use them together with a motor car and a trailer as a shuttle train. The last use took place in 1993 and 1994 respectively. While the 602 was scrapped in 1997, the 603 is now owned by Swisstrain together with the 601 and serves as a spare parts donor for them.

Variantas builtrebuilt De 4/4
General
Built1940
ManufacturerSIG, SLM, BBC, Oerlikon, SAAS
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length51 ft 10 1/16 in
Wheelbase41 ft 0 1/8 in
Rigid wheelbase8 ft 10 5/16 in
Service weight111,333 lbs125,663 lbs
Adhesive weight111,333 lbs125,663 lbs
Axle load27,778 lbs31,526 lbs
Boiler
Variantas builtrebuilt De 4/4
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power1,322 hp (986 kW)
Continuous power1,281 hp (955 kW)
Top speed78 mph56 mph
Calculated Values
EMU
baggage railcar
last changed: 06/2022
