French State Railway (État) 42.101 to 140
French State Railway 3-141 TD 101 to 140
go back
France | 1932
40 produced

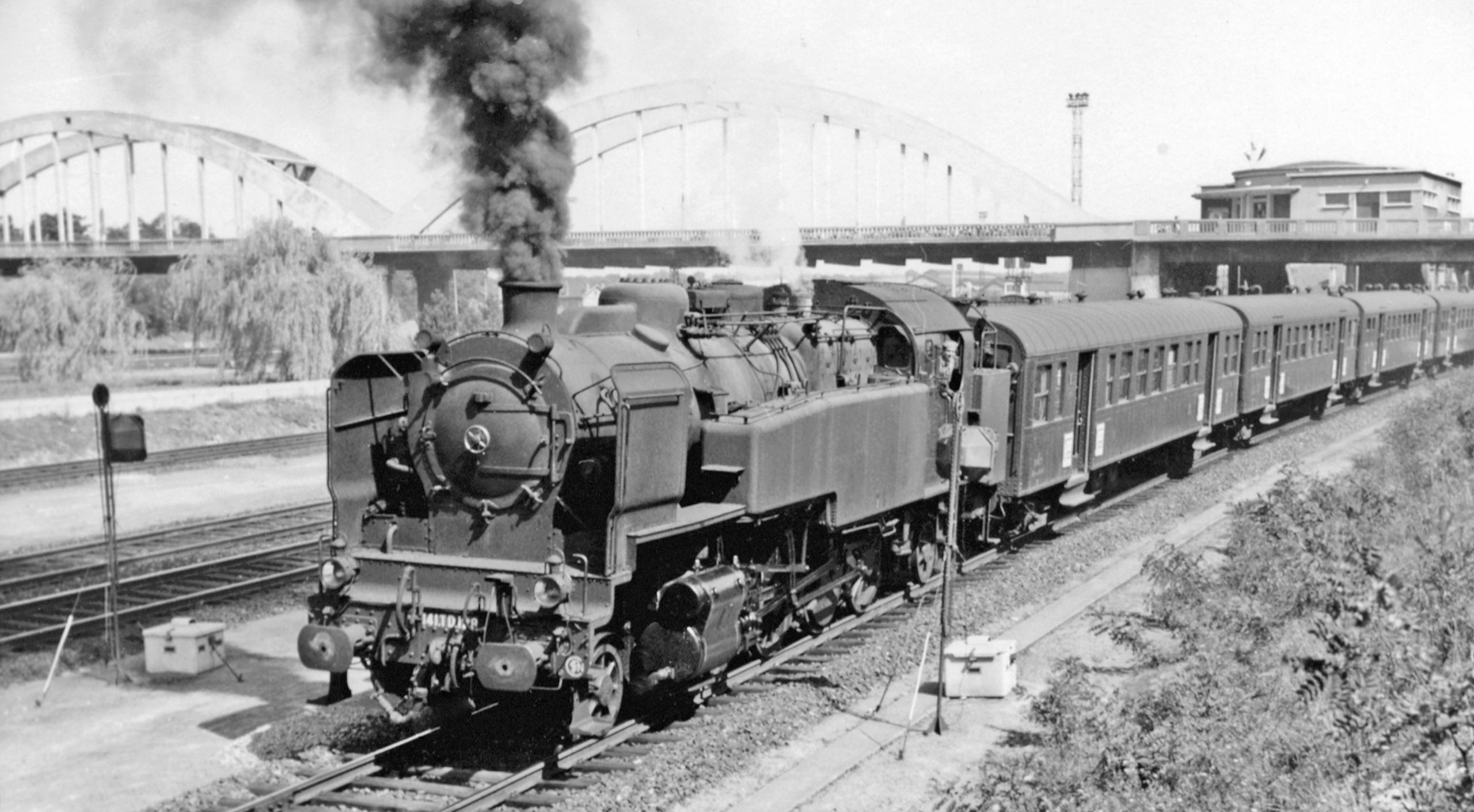

141 TD 128 in 1959 at Achères
141 TD 128 in 1959 at Achères
Ben Brooksbank

To increase their hauling power in suburban service from Paris Saint-Lazare, the État received 40 three-cylinder Mikado tank locomotives in 1932 and 1933. 20 each had been built by Schneider and Batignolles-Châtillon. They were inspired from the Est 141.701 to 141.742 (the later SNCF 141 TC) and had to enforce the two-cylinder 42.001 to 42.020 Mikado tanks. The new locomotives were numbered 42.101 to 42.140. In the SNCF they became 3-141 TD 101 to 140.

Their boiler had a Belpaire firebox with narrow grate and two arch tubes. The blast pipe was of the three-nozzle type and was later exchanged against the Kylchap type. They had a very good acceleration thanks to the combination of three cylinders and relatively small drivers of only 1,420 mm. From the start, they had push-pull controls to operate with Talbot coaches with a driving trailer. After passenger traffic had been taken over by electric trains on some lines, they also had to haul freight trains on electrified lines. The last steam train from Saint-Lazare was hauled by 141 TD 119 in February 1967.

General
Built1932-1933
ManufacturerSchneider, Batignolles-Châtillon
Wheel arr.2-8-2T (Mikado)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length49 ft 2 9/16 in
Empty weight185,188 lbs
Service weight234,792 lbs
Adhesive weight165,346 lbs
Axle load41,337 lbs
Water capacity3,302 us gal
Fuel capacity8,818 lbs (coal)
Boiler
Grate area30.1 sq ft
Firebox area186.2 sq ft
Tube heating area1,503 sq ft
Evaporative heating area1,689.2 sq ft
Superheater area387.3 sq ft
Total heating area2,076.5 sq ft
Power Plant
Driver diameter55.9 in
Boiler pressure232 psi
Expansion typesimple
Cylindersthree, 20 1/16 x 26 in
Power
Power sourcesteam
Indicated power1,538 hp (1,147 kW)
Top speed59 mph
Starting effort55,452 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
