Memphis, El Paso and Pacific No. 1 to 10
Spanish State Railways 030-2108 to 2112
go back
Spain | 1870
10 produced
Image of locomotive

These ten locomotives were built in 1870 in France for service in the USA, but were ultimately used in Spain. They had been ordered by the Memphis, El Paso and Pacific Railroad that started to build a line from the eastern Border of Texas to San Diego on the Pacific in the 1860s. They had the works numbers 1253 to 1262 and were to be named after rivers. When Koechlin in Alsace had shipped the first two, they learnt that the customer was in serious financial problems. So the locomotives were loaded off from the ship in Bordeaux and Koechlin started to search for new customers.

Although built for North America, they were designed after typical European or French practice. They had plate frames and a very large steam dome. The outside valve gear was of the Gooch type. Due to their Stephenson long boiler design, they had long overhangs which meant that the running characteristics were not very good at speed. The coupler frame for the tender was mounted between the second and third driving axles to reduce flange wear. Sources state an indicated output of 499 hp, but continuous power is more likely to have been slightly below 400 hp. Built in broad gauge, possible customers were on the Iberian Peninsula.

Originally built to burn wood, they had to be converted to burn coal as usual in Europe. Four locomotives were sold to the Tarragona a Barcelona y Francia that later became part of the Madrid a Zaragoza y Alicante. There they were already withdrawn by 1906 since there were no tasks really suitable for them. Maybe this was because they had drivers too large for heavy freight service, but the boilers and running characteristics were too weak for fast passenger service.

Three were bought by the Asturias, Galicia y Leon and two by the Lerida a Reus y Tarragona. Both of these companies later became part of the Norte. The tenth locomotive maybe have come to the Torralba–Soria, but there are no records to prove this. Maybe this locomotive was not built at all after the original customer became bankrupt. All five locomotives owned by the Norte later became RENFE 030-2108 to 030-2112. They were officially withdrawn in 1964, after a life of 94 years.

General
Built1870
ManufacturerKoechlin
Wheel arr.0-6-0 (Six-coupled)
Gauge5 ft 5 11/16 in (Iberian broad gauge)
Dimensions and Weights
Length48 ft 8 3/4 in
Wheelbase11 ft 5 in
Rigid wheelbase11 ft 5 in
Total wheelbase33 ft 11 1/16 in
Empty weight79,291 lbs
Service weight87,744 lbs
Total weight142,793 lbs
Axle load30,865 lbs
Water capacity2,193 us gal
Fuel capacity13,228 lbs (coal)
Boiler
Grate area16.8 sq ft
Firebox area98.5 sq ft
Tube heating area1,323.4 sq ft
Evaporative heating area1,421.9 sq ft
Total heating area1,421.9 sq ft
Power Plant
Driver diameter59.8 in
Boiler pressure116 psi
Expansion typesimple
Cylinderstwo, 18 1/8 x 25 9/16 in
Power
Power sourcesteam
Estimated power375 hp (280 kW)
Starting effort13,829 lbf
Calculated Values
steam locomotive
freight
last changed: 01/2026
Image of locomotive
Texas & Pacific class B-6
go back
United States | 1902
7 produced

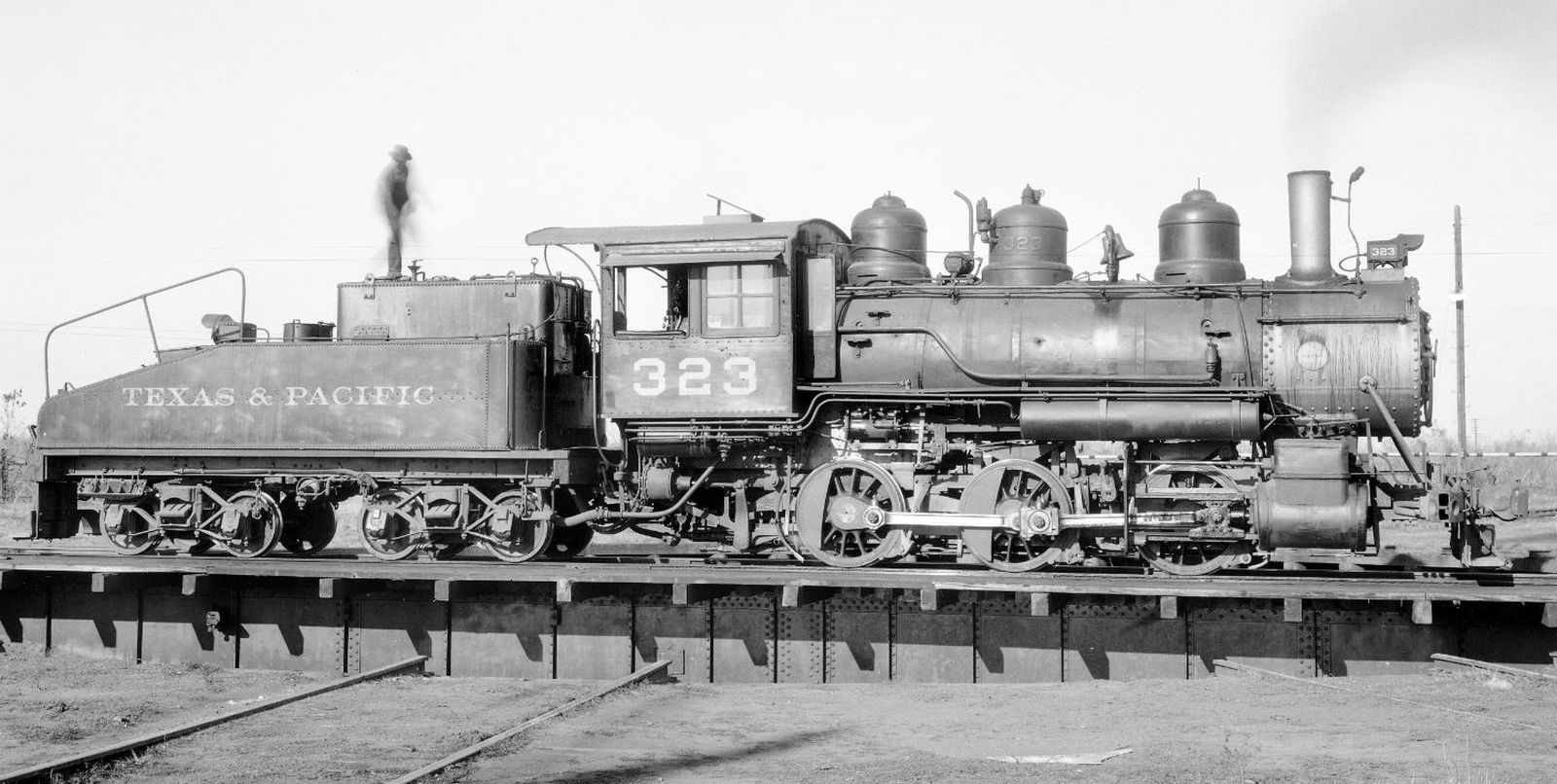

No. 323 in December 1947 at Addis, Louisiana

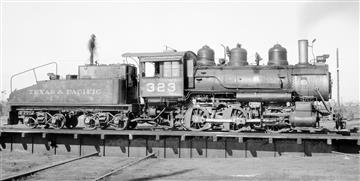

No. 323 in December 1947 at Addis, Louisiana
C.W. Witbeck

The class B-6 consisted of seven 0-6-0 switchers built by ALCO-Cooke for the Texas & Pacific. Their numbers were 317 to 323. They were introduced with a boiler pressure of 200 psi that was reduced to 175 psi in 1916. Three were equipped for oil burning in 1916 and 1917, so the six tons of coal in the tender were replaced by 1,600 gallons of oil. At the same time, the T&P built 28 0-6-0 switchers of the class B-5 in their own works.

General
Built1902
ManufacturerALCO
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length54 ft 7 3/4 in
Wheelbase12 ft
Rigid wheelbase12 ft
Total wheelbase39 ft 8 in
Service weight130,000 lbs
Adhesive weight130,000 lbs
Total weight216,000 lbs
Axle load32,500 lbs
Water capacity3,600 us gal
Fuel capacity12,000 lbs (coal)
Boiler
Grate area31.5 sq ft
Firebox area119 sq ft
Tube heating area1,548 sq ft
Evaporative heating area1,667 sq ft
Total heating area1,667 sq ft
Power Plant
Driver diameter52 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 20 x 26 in
Power
Power sourcesteam
Estimated power800 hp (597 kW)
Starting effort34,000 lbf
Calculated Values
steam locomotive
switcher
last changed: 10/2025
Texas & Pacific class E-1
go back
United States | 1906
2 produced
Image of locomotive
Railway and Locomotive Engineering, August 1906

In 1906, the Texas & Pacific manufactured two examples of the Class E-1 in their own works in Marshall, Texas, which would remain their only Atlantic locomotives. The boiler was relatively small compared to the cylinder volume, but it operated at a relatively high pressure for the time of 220 psi. A special feature of the chassis was that the compensating levers also included the trailing axle in addition to the driving axles, which is why this was also loaded with a high load of 58,000 pounds. This resulted in a tail-heaviness that led to unsatisfactory running characteristics. In addition, the tractive effort was no longer quite sufficient at this time for modern steel passenger cars.

For these reasons, the two locomotives underwent a complete rebuild as early as 1917. To increase traction, the drivers were reduced from 79 to 75 inches. Boiler pressure was reduced to 185 psi, but this was offset by increasing the cylinder diameter from 20 to 22 inches. The cylinders were now supplied by piston valves instead of slide valves. The boiler now contained a relatively large superheater and was oil-fired. The two locomotives survived in this form for a little over ten years until they were retired in December 1928 and January 1929.

Variantas builtrebuilt E-1s
General
Built19061917
ManufacturerTexas & Pacific
Wheel arr.4-4-2 (Atlantic)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase27 ft 7 in
Rigid wheelbase7 ft
Total wheelbase56 ft 10 1/2 in
Service weight204,000 lbs214,000 lbs
Adhesive weight116,000 lbs124,000 lbs
Total weight336,000 lbs329,000 lbs
Axle load58,000 lbs62,000 lbs
Water capacity6,500 us gal
Fuel capacity20,000 lbs (coal)3,000 us gal (oil)
Boiler
Grate area45.3 sq ft45 sq ft
Firebox area160 sq ft180 sq ft
Tube heating area2,731 sq ft2,290 sq ft
Evaporative heating area2,891 sq ft2,470 sq ft
Superheater area525 sq ft
Total heating area2,891 sq ft2,995 sq ft
Variantas builtrebuilt E-1s
Power Plant
Driver diameter79 in75 in
Boiler pressure220 psi185 psi
Expansion typesimple
Cylinderstwo, 20 x 28 intwo, 22 x 28 in
Power
Power sourcesteam
Estimated power1,600 hp (1,193 kW)1,700 hp (1,268 kW)
Starting effort26,511 lbf28,414 lbf
Calculated Values
steam locomotive
express
last changed: 09/2022
Texas & Pacific class I-1
go back
United States | 1925
70 produced
Image of locomotive
collection Richard Driver

The first locomotives that were built from the start with the 2-10-4 wheel arrangement were the ten members of the class I-1 of the Texas and Pacific from 1925. The goal in the development was to create a ten-coupled freight locomotive with a larger firebox to provide greater power at higher speeds. Since the Santa Fe had just rebuilt the first locomotive with this wheel arrangement from a different one, this wheel arrangement was now called “Texas”.

They had oil burning and a grate with an area of 100 square feet or 9.29 m². The area of the firebox was increased with a combustion chamber and two thermic syphons. There was also a booster in the trailing bogie and an Elesco feed water heater.

The ten I-1s had a driver diameter of 63.5 inches (1,613 mm) and a boiler pressure of 250 psi (17.25 bars). Between 1927 and 1929, four batches of 15 each were built, designated I-1a to I-1d. They now had a driver diameter of only 63 inches and a boiler pressure of 255 psi. They were also 4,000 pounds heavier, or another 5,000 pounds on the I-1d.

Although their service life was already coming to an end in 1948, three were equipped with Timken roller bearings on all axles and designated Class I-2. By the early 1950s all but the 610 and 638 were scrapped. While the 638 was also scrapped two years later, the 610 was preserved. It pulled the American Freedom Train in the 1970s and has not been operational since 1982. Today she can be found in Palestine, Texas

VariantI-1I-1a to d
General
Built19251927-1929
ManufacturerLima
Wheel arr.2-10-4 (Texas)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase46 ft 8 1/2 in
Rigid wheelbase22 ft
Total wheelbase86 ft 9 in
Service weight448,000 lbs452,000 lbs
Adhesive weight300,000 lbs303,000 lbs
Total weight725,166 lbs729,166 lbs
Axle load60,000 lbs60,600 lbs
Water capacity14,000 us gal
Fuel capacity5,000 us gal (oil)
Boiler
Grate area100 sq ft
Firebox area473 sq ft
Tube heating area4,640 sq ft
Evaporative heating area5,113 sq ft
Superheater area2,100 sq ft
Total heating area7,213 sq ft
VariantI-1I-1a to d
Power Plant
Driver diameter63.5 in63 in
Boiler pressure250 psi255 psi
Expansion typesimple
Cylinderstwo, 29 x 32 in
Power
Power sourcesteam
Estimated power4,450 hp (3,318 kW)4,500 hp (3,356 kW)
Starting effort90,060 lbf92,590 lbf
Booster13,300 lbf
Calculated Values
steam locomotive
freight
last changed: 01/2024
