Steam Locomotives of the Glasgow & South Western (GSWR)
go back
Glasgow & South Western class 361
go back
Great Britain | 1900
34 produced
Rebuilt locomotive
Rebuilt locomotive
Locomotive Magazine, September 1921

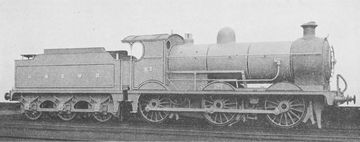

These locomotives were a reinforced version of the standard goods locos that James Manson had had built at Kilmarnock a few years earlier. They had larger cylinders and a larger wheel diameter. Modern features were a steam-powered reverser and steam-powered sanders. The first 20 were built by Neilson, Reid & Co., twelve more in 1907 by North British and a further two in 1910 by G&SWR's own workshops at Kilmarnock.

In 1920 Robert Whitelegg had these locomotives rebuilt with new boilers. Since he wanted to standardize the boiler types, these were the same as those on newly rebuilt passenger locomotives with a 4-4-0 wheel arrangement. They received a new ab, but no superheater.

Variantas builtrebuilt
General
Built1900, 1907, 19101920
ManufacturerNeilson, Reid & Co.Kilmarnock
Axle config0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length48 ft 9 1/4 in
Wheelbase16 ft 10 in
Rigid wheelbase16 ft 10 in
Service weight95,984 lbs106,960 lbs
Adhesive weight95,984 lbs106,960 lbs
Total weight168,000 lbs177,520 lbs
Axle load35,056 lbs37,520 lbs
Water capacity3,002 us gal
Fuel capacity11,200 lbs (coal)
Boiler
Grate area18 sq ft18.4 sq ft
Firebox area111 sq ft125 sq ft
Tube heating area1,097 sq ft1,236 sq ft
Evaporative heating area1,208 sq ft1,361 sq ft
Total heating area1,208 sq ft1,361 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter61.5 in
Boiler pressure165 psi170 psi
Expansion typesimple
Cylinderstwo, 18 x 26 in
Power
Power sourcesteam
Estimated power625 hp (466 kW)700 hp (522 kW)
Starting effort19,211 lbf19,793 lbf
Calculated Values
steam locomotive
freight
James Manson
last changed: 03/2023
Sectional drawing as built
Sectional drawing as built
Locomotive Magazine, September 1921
Glasgow & South Western class 540
go back
Great Britain | 1922
6 produced
No. 545
No. 545
flickr/Historical Railway Images

At a time when the Glasgow & South Western needed a much more powerful express locomotive, Robert Whitelegg had just come from the London, Tilbury & Southend as new Chief Mechanical Engineer. He had been an advocate of heavy tank locomotives in suburban and commuter service and had introduced Britain's first 4-6-4T at the LT&SR with his class 2100. Now he even chose this wheel arrangement for his new express locomotive.

Only six were built by North British in 1922. They were the most powerful locomotives of the G&SWR and served as their flagship, incorporating the latest practices in steam locomotive design. The railway successfully marketed them as the “Baltic Class”, while the crews called them “Big Pugs”, since they were tank locomotives

Shortly after their introduction, they became part of the LMS. With increasing traffic on the former G&SWR network, the LMS introduced a larger number of smaller tender locomotives for express service. Since there was now little to do for these large tank locomotives, they were withdrawn in 1935 and 1936 once their boiler was due for renewal.

General
Built1922
ManufacturerNorth British
Axle config4-6-4T (Hudson)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase39 ft
Rigid wheelbase13 ft 2 in
Service weight221,920 lbs
Adhesive weight120,960 lbs
Axle load40,320 lbs
Water capacity2,882 us gal
Fuel capacity8,960 lbs (coal)
Boiler
Grate area30 sq ft
Firebox area156 sq ft
Tube heating area1,574 sq ft
Evaporative heating area1,730 sq ft
Superheater area255 sq ft
Total heating area1,985 sq ft
Power Plant
Driver diameter72 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 22 x 26 in
Power
Power sourcesteam
Estimated power1,400 hp (1,044 kW)
Starting effort26,741 lbf
Calculated Values
steam locomotive
tank locomotive
express
passenger
last changed: 04/2025
