Staatsspoorwegen class 500
later class BB10
go back
Indonesia | 1899
16 produced

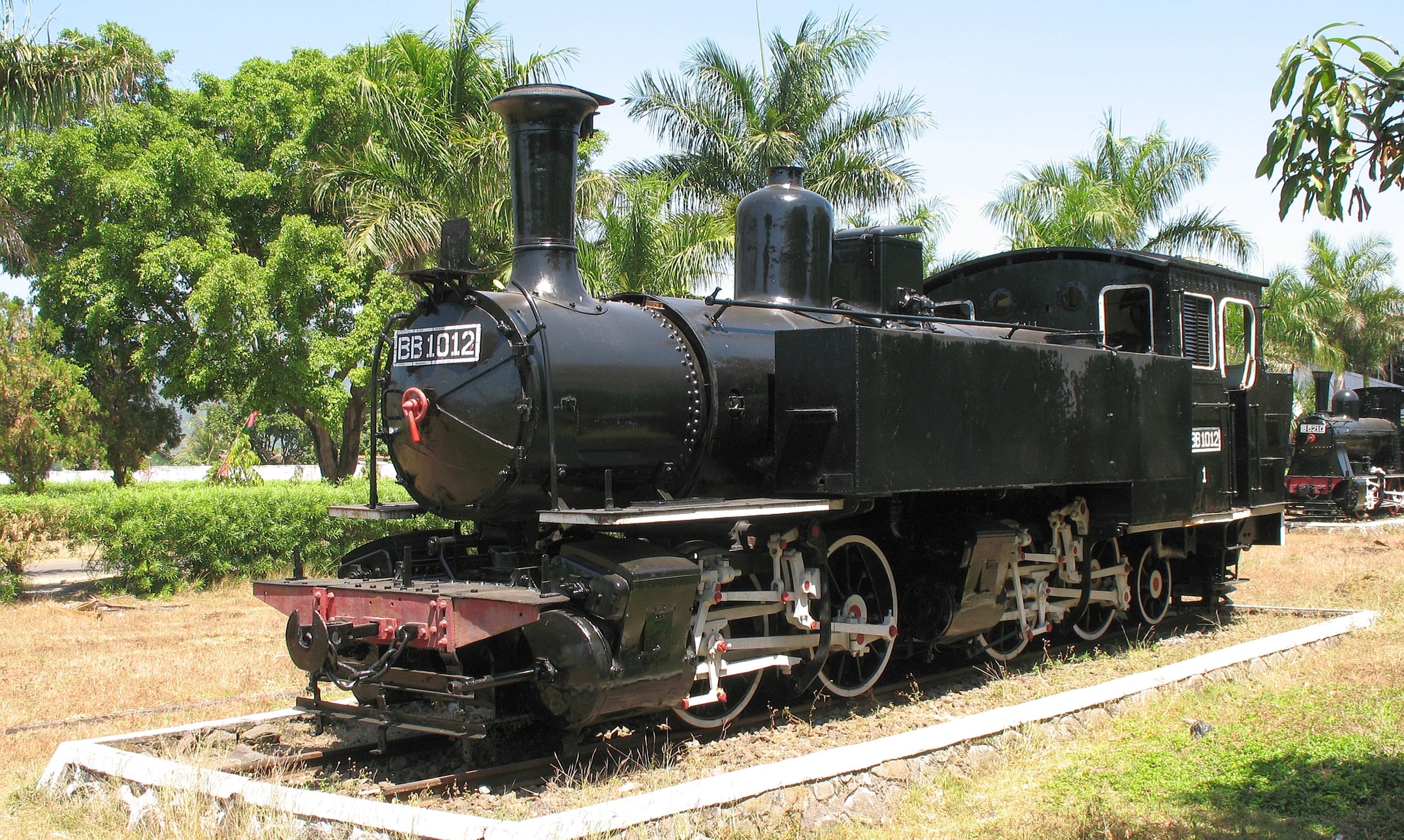

BB10 12 in the Indonesian Railways Museum at Ambarawa
BB10 12 in the Indonesian Railways Museum at Ambarawa
Joachim Lutz

The locomotive later known as BB10 was the first Mallet in service in Indonesia. Mainly built for the hilly and winding Bogor-Bandung line, it was a tank locomotive with two two-axle driver groups and a trailing axle. The first eight were delivered by Hartmann of Chemnitz in 1899 and were numbered 501 to 508. Originally coal-fired, they had an output of 465 hp

Hartmann delivered four more in 1907 which were numbered 509 to 512 and were intended for work on other lines. Another four came from BMAG of Berlin in 1908 which became numbers 513 to 516. Later they were converted to burn oil and the Japanese gave them the designation BB10. Only BB10 12 was preserved and is on display in the Indonesian Railway Museum at Ambarawa.

General
Built1899-1908
ManufacturerHartmann, BMAG
Wheel arr.0-4-4-2T
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length34 ft 7 3/4 in
Wheelbase19 ft 8 1/4 in
Rigid wheelbase4 ft 7 1/8 in
Empty weight71,121 lbs
Service weight94,314 lbs
Adhesive weight77,823 lbs
Axle load19,709 lbs
Water capacity1,057 us gal
Fuel capacity2,976 lbs (coal)
Boiler
Grate area15.6 sq ft
Firebox area83.3 sq ft
Tube heating area1,008.6 sq ft
Evaporative heating area1,091.9 sq ft
Total heating area1,091.9 sq ft
Power Plant
Driver diameter43.4 in
Boiler pressure174 psi
Expansion typecompound
Cylindersfour, HP: 11 13/16 x 20 1/16 in
and LP: 18 1/8 x 20 1/16 in
Power
Power sourcesteam
Indicated power459 hp (342 kW)
Top speed31 mph
Starting effort13,398 lbf
with start valve16,078 lbf
Calculated Values
Dampflok:Tenderlok
Mallet
passenger
freight
