R. Connor Lumber Co. No. 4 and 15 (Shay B-42-2)
go back
United States | 1919
2 produced

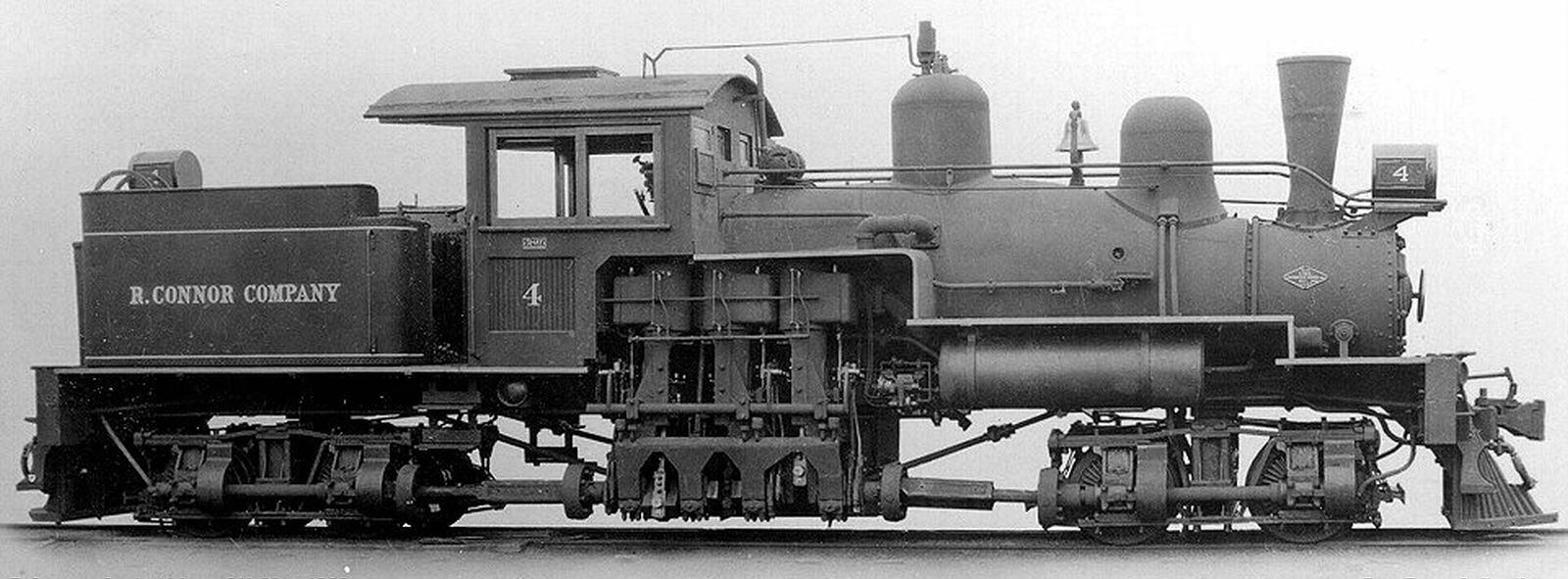

Image of locomotive
collection Don Ross

Of seven Shays operated by R. Connor & Co. of Marathon County, Wisconsin, two were of the two-truck 42-ton class. They were built in 1919 with works number 3039 and in 1920 with works number 3121. With an actual recorded empty weight of 75,700 and 76,200 pounds and an estimated service weight in excess or 90,000 pounds, they were among the heavier, later members of the 42-ton class. They were operated as Marathon County Railway numbers 4 and 15, but from June of 1928 the company was called Connor Land & LumberCompany. They were stored out of service in 1934.

General
Built1919, 1920
ManufacturerLima
Wheel arr.0-4-4-0T (Shay)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Empty weight75,700 lbs
Water capacity1,550 us gal
Fuel capacity4,000 lbs (coal)
Boiler
Power Plant
Driver diameter29.5 in
Boiler pressure180 psi
Expansion typesimple
Cylindersthree, 10 x 12 in
Power
Power sourcesteam
Top speed17 mph
Starting effort16,886 lbf
Calculated Values
steam locomotive
Shay
geared steam locomotive
narrow gauge
freight
last changed: 09/2025
