Siems, Carey-H. S. Kerbaugh Corp. No. 700 to 702 (Shay C-70-3)
go back
United States | 1918
3 produced

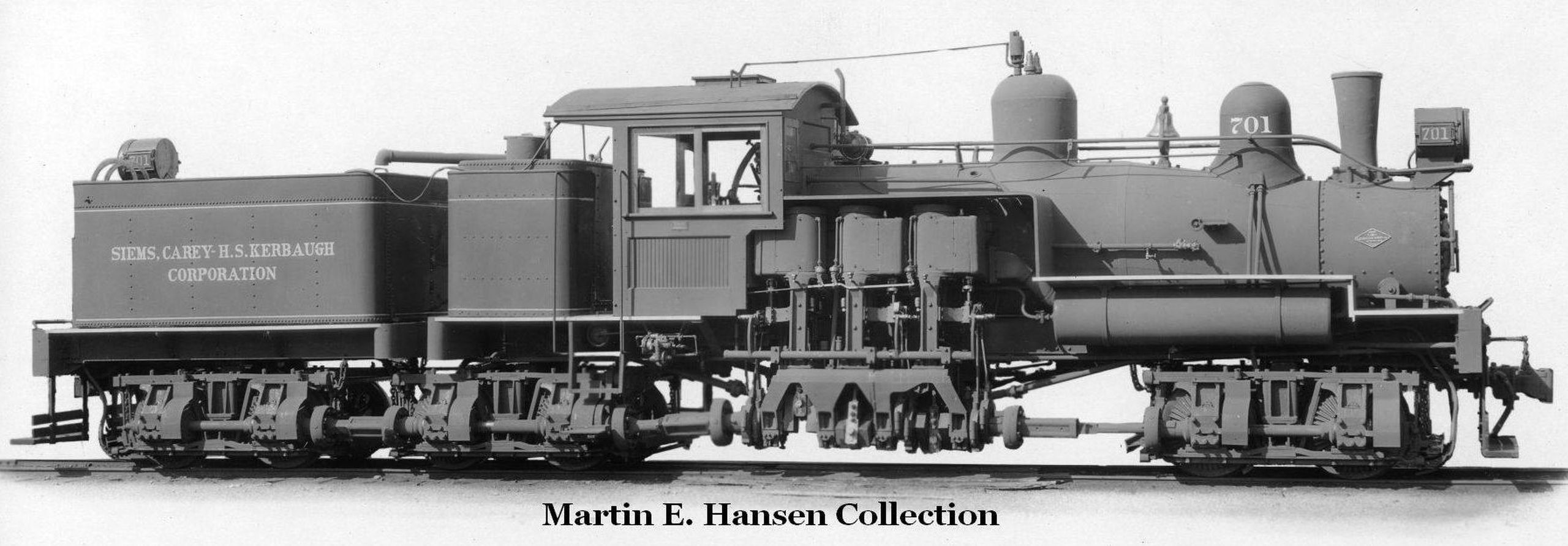

Image of locomotive
collection Martin E. Hansen

Numbers 700 to 702 of Siems, Carey-H. S. Kerbaugh Corp. were three 70-ton three-truck Shays delivered in October 1918. The sole purpose of the company was to build a camp for the US Army at Siemscarey, Washington. Originally they had ordered six 42-ton two-truck Shays, but the order was changed to the model C-70-3. The end of the war meant that work on the camp was halted and the last three Shays were directly sent to Vancouver Barracks in Washington. Also the first three were brought there and now all were sold to different operators.

All spent most of their lives in Washington and Oregon. No. 701 shown in the photos had the biggest number of owners and was operated in logging and steel production until 1939 when it had to be abandoned after a fire. It was recovered and refurbished three years later and now came to Diamond Match Co. in Stirling City, California. There it was in operation until 1953 and then scrapped.

General
Built1918
ManufacturerLima
Wheel arr.0-4-4-4-0T (Shay)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Empty weight128,100 lbs
Service weight155,520 lbs
Adhesive weight155,520 lbs
Water capacity3,000 us gal
Fuel capacity1,200 us gal (oil)
Boiler
Power Plant
Driver diameter36 in
Boiler pressure200 psi
Expansion typesimple
Cylindersthree, 12 x 15 in
Power
Power sourcesteam
Top speed19 mph
Starting effort30,375 lbf
Calculated Values
steam locomotive
Shay
geared steam locomotive
freight
last changed: 01/2026
No. 701 at its last operator as Diamond Match Co. No.106
No. 701 at its last operator as Diamond Match Co. No.106
collection Martin E. Hansen
