Japanese Government Railways class C11
go back
Japan | 1932
381 produced

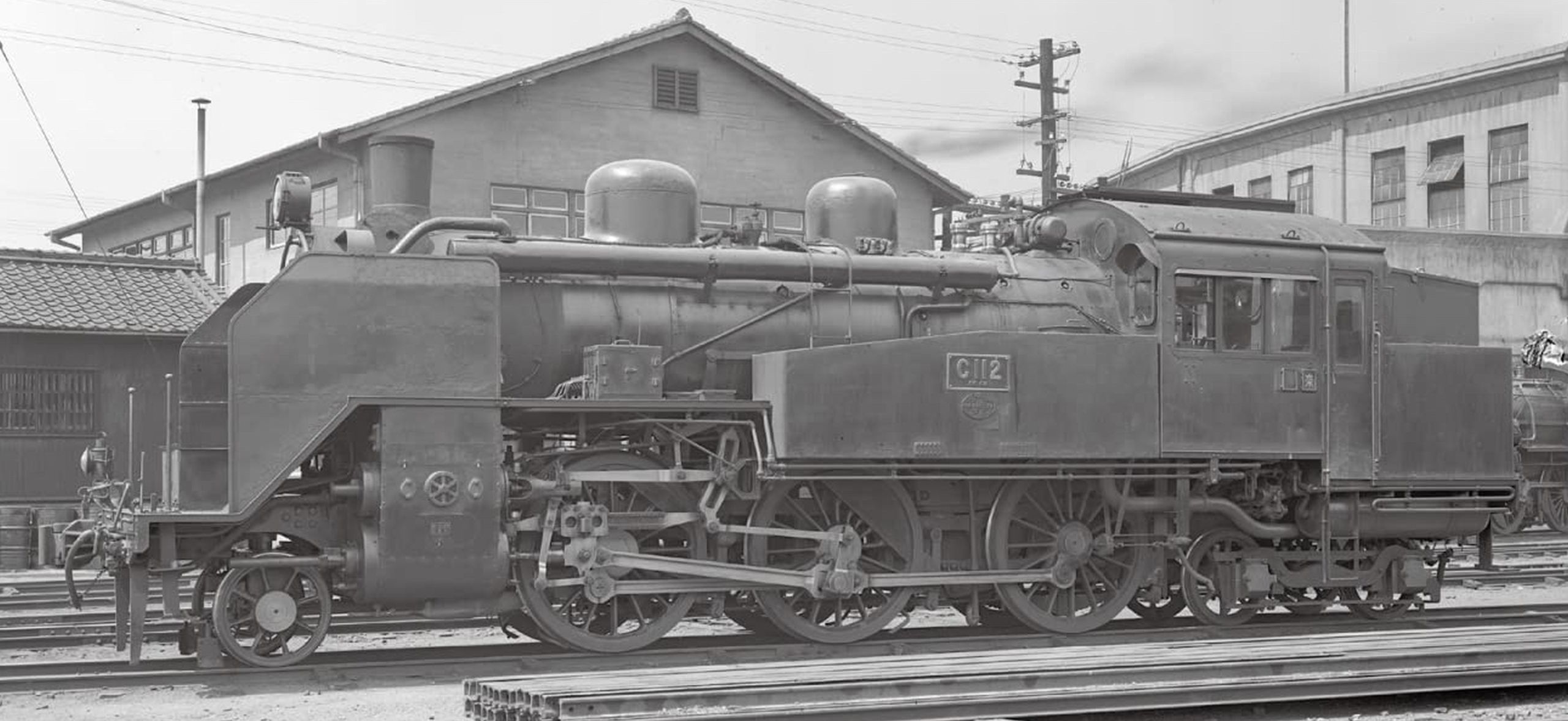

C11 2 in March 1938 at Nara
C11 2 in March 1938 at Nara
Katsusaburo Nishio

The C11 was a 2-6-4T tank locomotive designed by Hideo Shiima for service on secondary lines. It was closely based on the C10, but had a reduced weight thanks to the increased use of welding. Production started in 1932 at several companies and by 1947, a total of 381 had been completed. The first batches had a boiler pressure of 14 bars, but this was raised to 15 bars from 1935. Starting with C11 141 built in 1940, the water tanks had been enlarged, leading to an increased adhesive weight. From 1943, the smoke deflectors were made from wood to save steel. The class could mainly be seen in commuter service and the first ones were withdrawn in 1960 due to the introduction of diesel railcars. But until the end of the sixties, some of the remaining locomotives were even used in express service. A total of 52 have been preserved, six of which are still in working condition.

Variant1-140141-381
General
Built1932-1947
ManufacturerHitachi, Kisha Seizō, Kawasaki, Nippon Sharyō
Wheel arr.2-6-4T (Adriatic)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length41 ft 6 1/16 in
Wheelbase34 ft 7 3/4 in
Rigid wheelbase13 ft 5 7/16 in
Service weight145,174 lbs150,046 lbs
Adhesive weight81,483 lbs86,840 lbs
Axle load27,337 lbs29,134 lbs
Water capacity1,796 us gal
Fuel capacity6,614 lbs (coal)
Boiler
Grate area17.2 sq ft
Firebox area107.6 sq ft
Tube heating area680.3 sq ft
Evaporative heating area787.9 sq ft
Superheater area320.8 sq ft
Total heating area1,108.7 sq ft
Variant1-140141-381
Power Plant
Driver diameter59.8 in
Boiler pressure203 psi218 psi
Expansion typesimple
Cylinderstwo, 18 1/8 x 24 in
Power
Power sourcesteam
Indicated power772 hp (576 kW)
Top speed59 mph
Starting effort22,722 lbf24,345 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
last changed: 05/2026

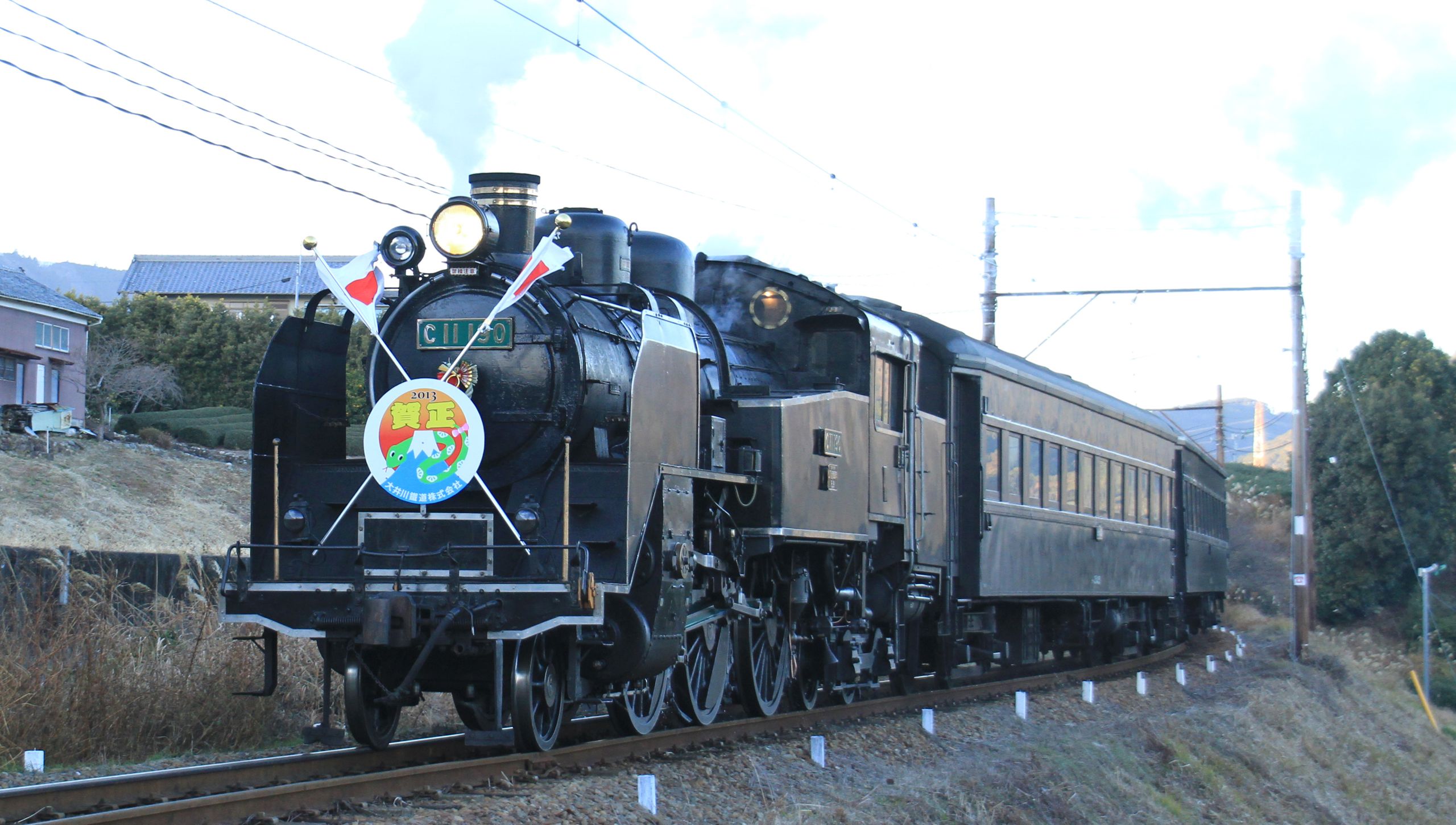

C11 190 on the Oigawa Railway in January 2013
C11 190 on the Oigawa Railway in January 2013
Utsuda
