Paris-Lyon-Méditerranée No. 1998 and 1999
go back
France | 1858
2 produced

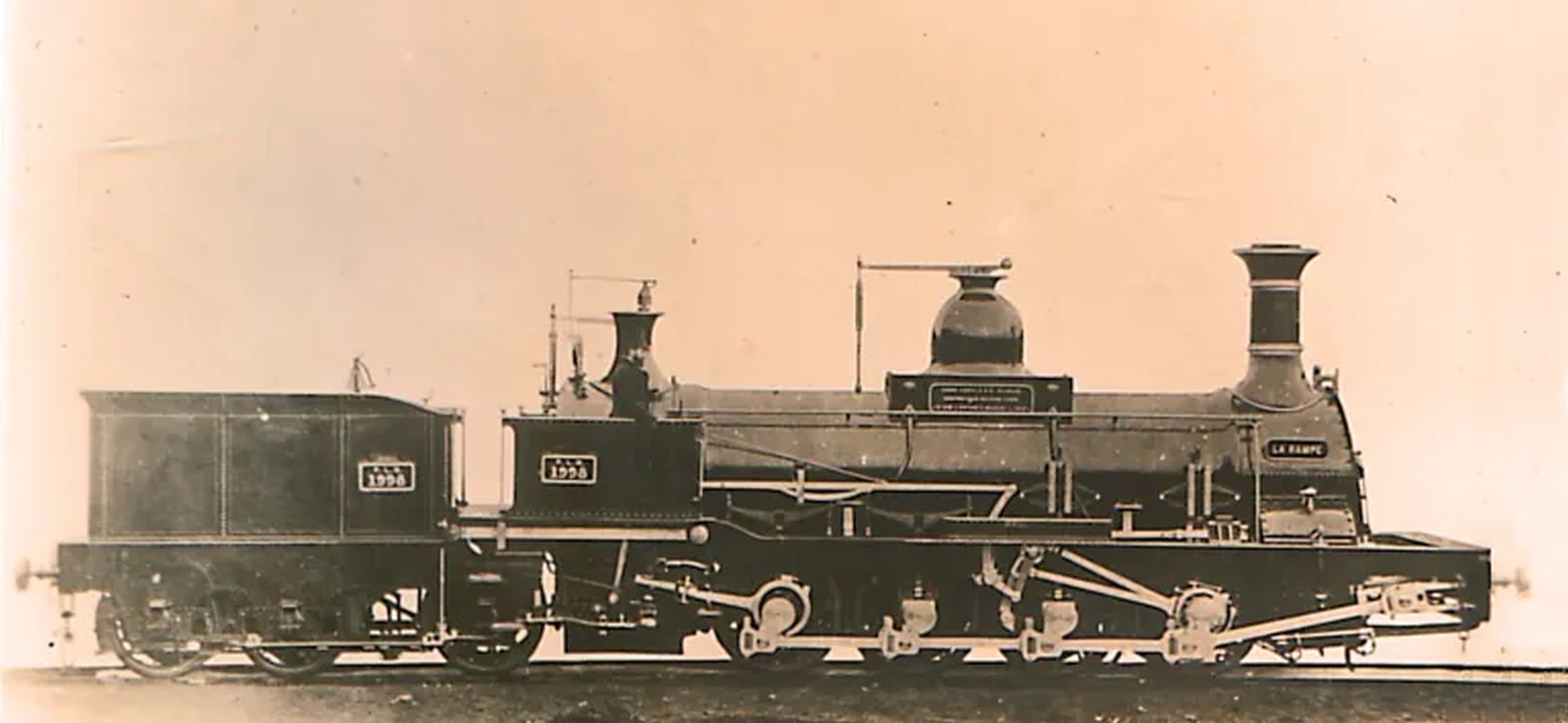

Image of locomotive

In 1859, Koechlin of Mulhouse built two Engerth locomotives for the PLM which were numbered 1998 and 1999. 1998 was named “La Rampe”, what gave an indication that they were intended for steep inclines. They had four driving axles and a three-axle tender whose first axle also supported the firebox. To allow the best running characteristics in curves, two running axles each were mounted in a bogie with Beugniot levers so that each group had a lateral play of 40 mm. They weighed around 50 tonnes and had a driver diameter of 1,200 mm. Their cylinders measured 540 by 560 mm.

General
Built1858
ManufacturerKoechlin
Wheel arr.0-8-6T (Engerth)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase12 ft 9 9/16 in
Rigid wheelbase0 ft 0 in
Total wheelbase31 ft 5 15/16 in
Service weight16,281 lbs
Adhesive weight111,333 lbs
Axle load28,219 lbs
Water capacity1,981 us gal
Fuel capacity5,512 lbs (coal)
Boiler
Grate area11.7 sq ft
Firebox area100.4 sq ft
Tube heating area1,761 sq ft
Evaporative heating area1,861.4 sq ft
Total heating area1,861.4 sq ft
Power Plant
Driver diameter47.2 in
Boiler pressure102 psi
Expansion typesimple
Cylinderstwo, 21 1/4 x 22 1/16 in
Power
Power sourcesteam
Estimated power302 hp (225 kW)
Starting effort18,198 lbf
Calculated Values
steam locomotive
freight
tank locomotive
supporting tender
Engerth supporting tender
Beugniot
