FC Supé á San Nicolas Manning Wardle 4-2-0ST
go back
Peru | 1868
only one produced

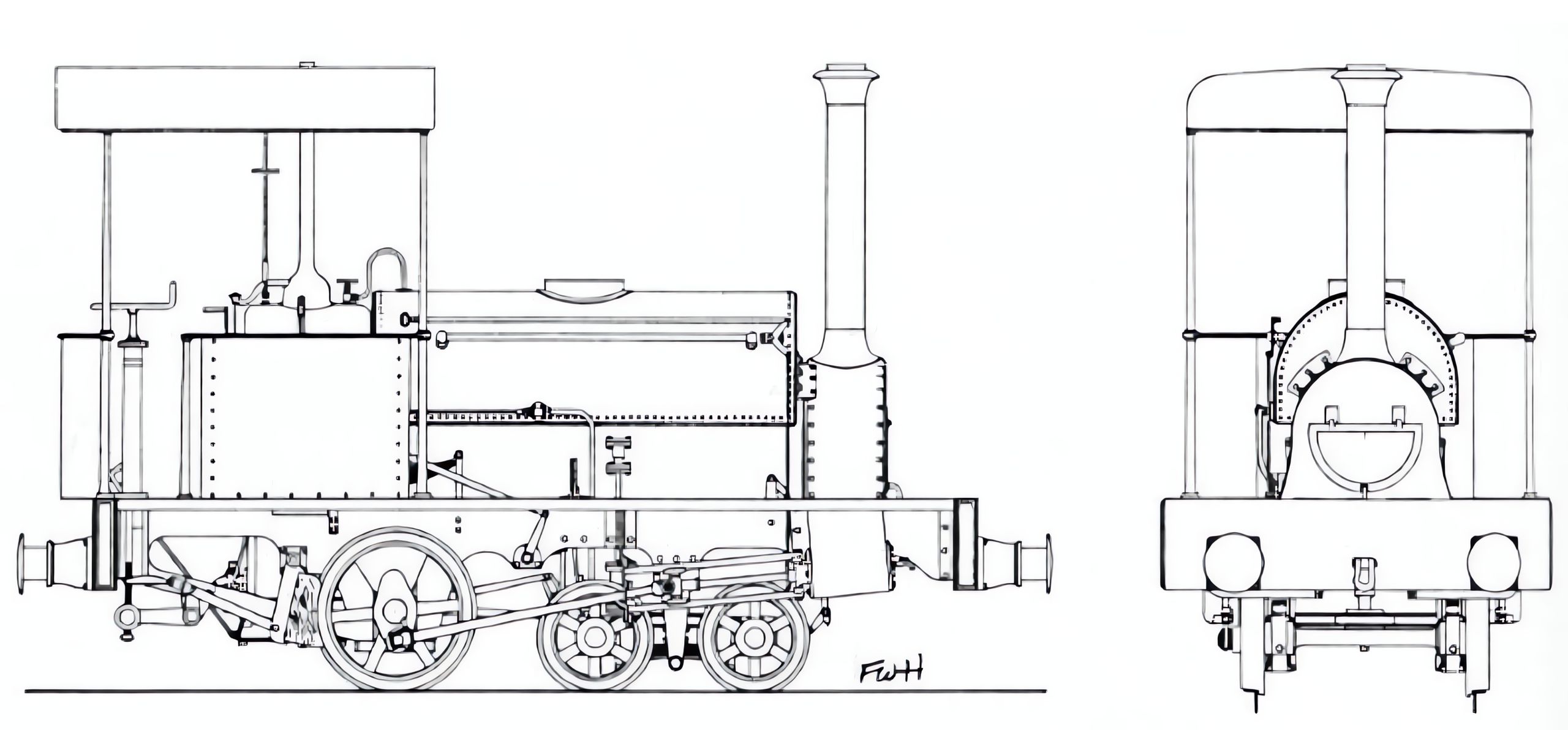

Image of locomotive
Martin Coombs / www.railwaysofthefarsouth.co.uk

Some locomotives used on haciendas in Peru were of the 4-2-0 wheel arrangement to run through extremely sharp curves. One of these with a saddle tank, built by Manning Wardle in 1868 with works number 246, could later be found on the Ferrocarril de Supé á San Nicolas. Since this railway was only founded in 1898 by the Sociedad Agrícola San Nicolas, the original customer is hard to determine. The railway used another side tank locomotive with the same wheel arrangement that had been built by Black Hawthorn in 1891.

General
Built1868
ManufacturerManning Wardle
Axle config4-2-0 (Jervis)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Fuel capacitycoal
Boiler
Power Plant
Driver diameter30 in
Expansion typesimple
Cylinderstwo, 5 1/4 x 11 in
Power
Power sourcesteam
Calculated Values
steam locomotive
tank locomotive
narrow gauge
secondary line
freight
passenger
last changed: 07/2025

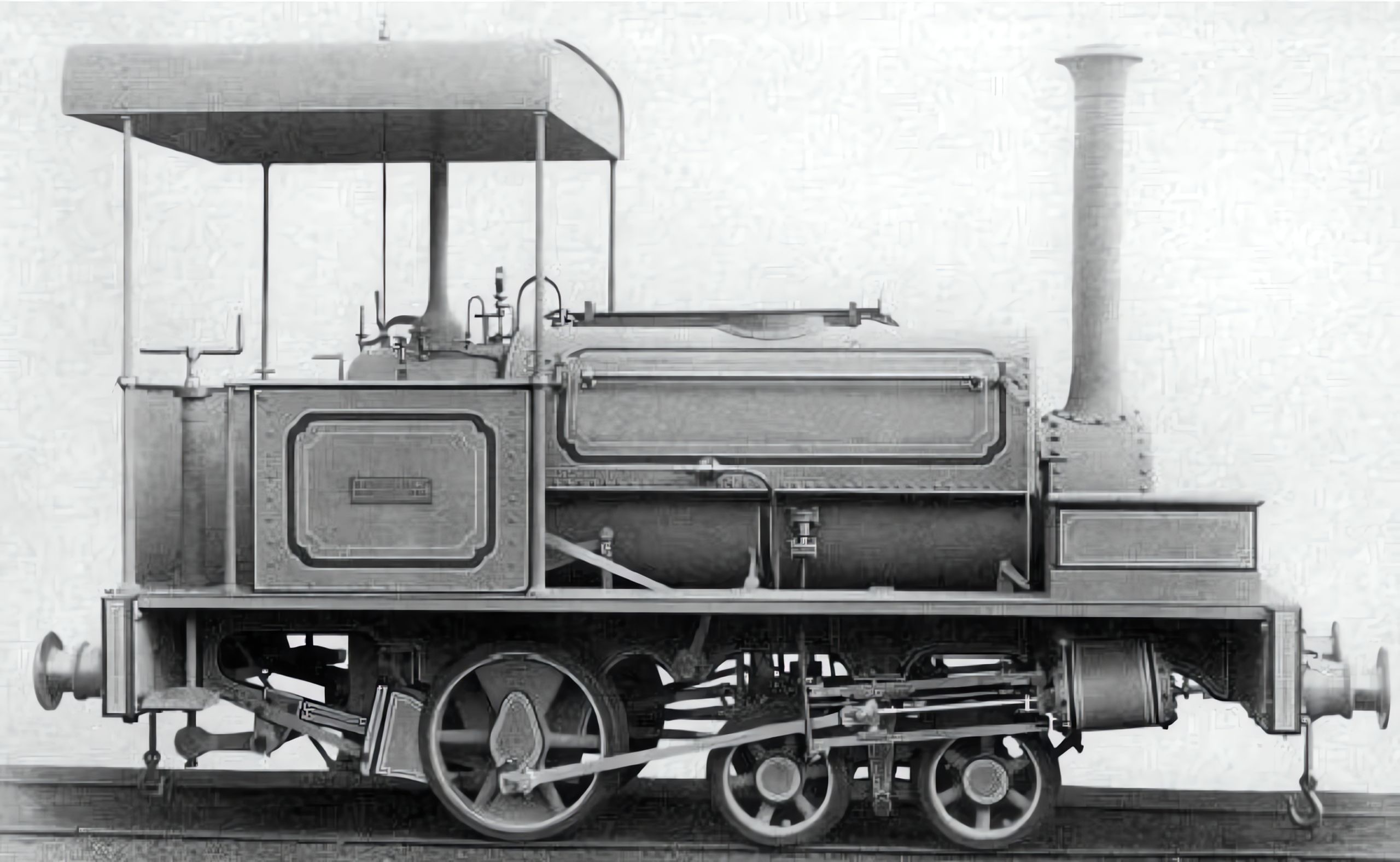

Image of locomotive
Frad Harman, Locomotives built by Manning Wardle & Co. vol. 1
