Egyptian National Railways EE-BRCW articulated diesel multiple units
go back
Egypt | 1950
19 produced

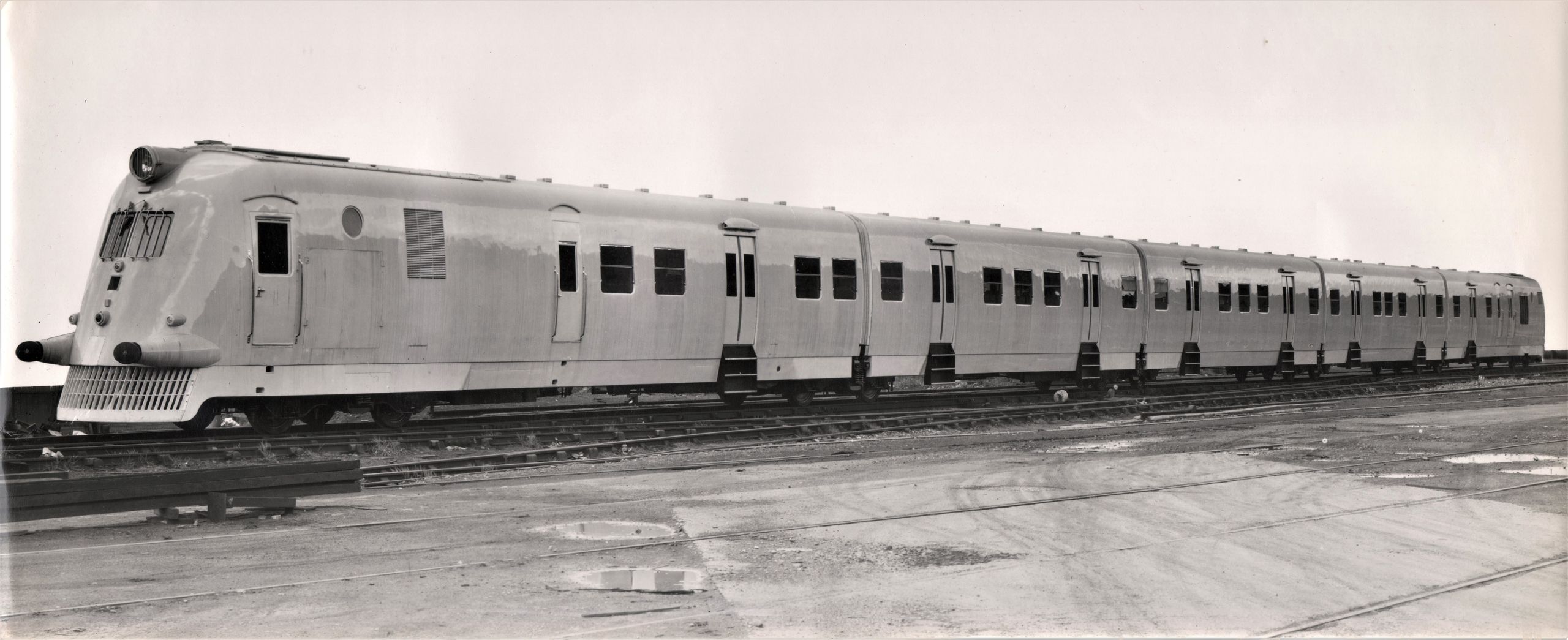

Five-car variant
Five-car variant
flickr / Historical Railway Images

In 1950, English Electric and Birmingham Railway Carriage and Wagon Company built a total of 19 articulated diesel-electric multiple units for the Egyptian National Railways. The engines, generators, traction motors and control equipment all came from EE, while the bodies and bogies were built by BRCW. Like the later Southern Region DEMUs, called “Thumpers”, they had a turbocharged four-cylinder diesel engine in a compartment behind the cabs. There was a three-car variant with one 400-hp engine on one end and a five-car variant with a total of two engines of the same output on both ends.

They were of lightweight construction and equipped for a dusty climate. Ten sets of the five-car variant were delivered for service between Cairo and Alexandria. They covered the distance of 130 miles or 210 km in two hours and ten minutes. They had compartments of first and second class, with the first class compartment fully air-conditioned. This variant also included a dining car with refrigerator. Nine sets of the three-car variant were used in suburban service which had compartments of second and third class.

Variantthree-carfive-car
General
Built1950
ManufacturerEnglish Electric, BRCW
Wheel arr.B-2-2-2 B-2-2-2-2-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats176172
Dimensions and Weights
Length162 ft 9 in255 ft 3 in
Rigid wheelbase8 ft 7 in
Total wheelbase138 ft 9 in231 ft 3 in
Empty weight174,904 lbs334,768 lbs
Service weight202,630 lbs
Adhesive weight67,487 lbs137,984 lbs
Axle load33,743 lbs34,496 lbs
Boiler
Variantthree-carfive-car
Power Plant
Power
Power sourcediesel-electric
Top speed75 mph
Starting effort9,000 lbf18,000 lbf
EngineEnglish Electric 4SRKT
Engine type4-cyl. diesel2x 4-cyl. diesel
Fuel960 us gal480 us gal
Engine output400 hp (298 kW)800 hp (597 kW)
Calculated Values
DMU
regional
long distance
last changed: 09/2025
Schematic drawing of the three-car variant
Schematic drawing of the three-car variant
flickr / Historical Railway Images
