Queensland Railways class 6D11½ (crane)
go back
Australia | 1902
2 produced

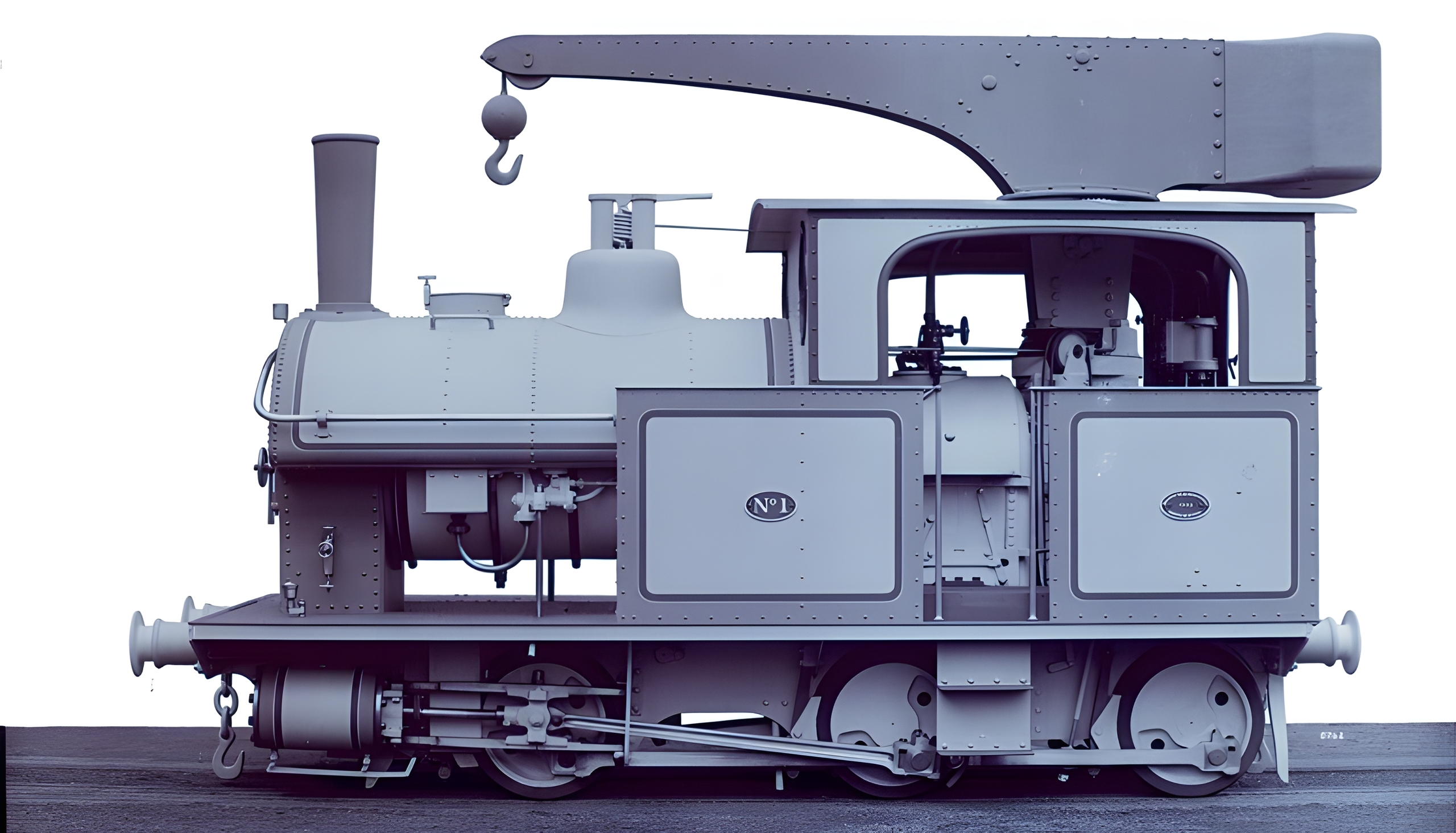

Image of locomotive
National Science & Industry Museum

In 1902, Beyer, Peacock & Co. built two 0-6-0T crane locomotives for the Queensland Government Railways with the works numbers 4317 and 4318. They had a saddle tank and the base of the crane was mounted in the cab, directly behind the firebox. While they had a long overhang at the front, the last axle was mounted on the extreme end of the locomotive. So the base of the crane was located between the second and third axles so carry the weight between them. Their owner designated them 6D11½, where the 6 stood for the number of driving wheels and the D stood for a tank locomotive. Finally, 11½ was the cylinder diameter in inches. Both lost their cranes in 1911 and 1912 and they were now used as shunters. With the removal of the cranes, the water tanks could be enlarged from 250 to 570 imperial gallons. Their withdrawals were in April and September of 1927.

General
Built1902
ManufacturerBeyer, Peacock & Co.
Wheel arr.0-6-0ST (Six-coupled)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Fuel capacitycoal
Boiler
Power Plant
Expansion typesimple
Power
Power sourcesteam
Calculated Values
steam locomotive
tank locomotive
switcher
crane
last changed: 04/2026
