Gotland No. 1 to 3
go back
Sweden | 1878
3 produced
Image of locomotive
Locomotive Magazine, March 1920

The Gotland Railway opened its 57 km long line in 1878 with a gauge of 891 millimeters (2 feet 11 inches) and ordered three small tank locomotives from NoHAB in Trollhättän. An axle load of just over five tonnes had to suffice on the narrow-gauge railway. The locomotives were given the names “Wisby”, “Polhem” and “Gotland” and were completed shortly before the opening of the line.

One of the three locomotives was presented at the Paris Exhibition in 1878 and was NoHAB's first showpiece there. According to Locomotive Magazine, apart from their Belpaire firebox, the locomotives were not distinguished by any special technical features, but by the high-quality execution of details. In addition to the successful execution of the valve gear, this also included a good weight balance thanks to the unevenly distributed wheelbases.

When the SJ took over operations on the Gotland Railway in 1948, the three locomotives were no longer used. Numbers 1 and 2 were then scrapped in 1952. Number 3 “Gotland” was donated to the Swedish Railway Museum in 1956 and has belonged to Gotlands Hesselby Jernväg since 1992.

General
Built1878
ManufacturerNoHAB
Axle config0-6-0T (Six-coupled)
Gauge2 ft 11 1/16 in (Swedish three feet)
Dimensions and Weights
Empty weight27,668 lbs
Service weight34,833 lbs
Adhesive weight34,833 lbs
Axle load11,662 lbs
Water capacity436 us gal
Fuel capacity1,482 lbs (coal)
Boiler
Grate area6.2 sq ft
Firebox area44.7 sq ft
Tube heating area418.2 sq ft
Evaporative heating area462.8 sq ft
Total heating area462.8 sq ft
Power Plant
Driver diameter39 in
Boiler pressure145 psi
Expansion typesimple
Cylinderstwo, 11 x 16 in
Power
Power sourcesteam
Estimated power148 hp (110 kW)
Starting effort6,092 lbf
Calculated Values
steam locomotive
passenger
freight
tank locomotive
narrow gauge
last changed: 09/2022
Swedish State Railways B (II)
go back
Sweden | 1909
99 produced
B 1367 in August 2004 in Sveg
B 1367 in August 2004 in Sveg
wassen

Under the impression of the Prussian P 8, the class A (II) Atlantic was developed into the B (II) with the wheel arrangement 4-6-0. The SJ had 96 locomotives built between 1909 and 1919. With the advancing electrification in the 1930s, some locomotives were sold to private railways, which later came back to the SJ after nationalization. The SVB (Stockholm-Västerås-Bergslagens Järnvägar) even had three more locomotives built in 1943 and 1944. The locomotives were retired by 1972 and kept as a strategic reserve until the 1990s. For this reason, many are still preserved today. So far there is only a short text for this vehicle. In the future it will be described in more detail.

Variantstandardtype A tender
General
Built1909-1919, 1943-1944
ManufacturerNoHAB, Motala Verkstad, VoMNoHAB, ASJ
Axle config4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length63 ft 11 5/16 in
Wheelbase37 ft 4 1/16 in
Rigid wheelbase13 ft 11 5/16 in
Empty weight140,434 lbs
Service weight154,764 lbs
Adhesive weight105,160 lbs
Total weight227,076 lbs257,500 lbs
Axle load35,053 lbs
Water capacity3,698 us gal5,283 us gal
Fuel capacity11,464 lbs (coal)13,228 lbs (coal)
Boiler
Grate area28 sq ft
Firebox area136.7 sq ft
Tube heating area1,702.8 sq ft
Evaporative heating area1,839.6 sq ft
Superheater area545.7 sq ft
Total heating area2,385.3 sq ft
Variantstandardtype A tender
Power Plant
Driver diameter68.9 in
Boiler pressure171 psi
Expansion typesimple
Cylinderstwo, 23 1/4 x 24 7/16 in
Power
Power sourcesteam
Estimated power1,106 hp (825 kW)
Top speed56 mph
Starting effort27,799 lbf
Calculated Values
steam locomotive
passenger
express
last changed: 05/2023
Image of locomotive
Locomotive Magazine, December 1912
Swedish State Railways EII
go back
Sweden | 1907
133 produced

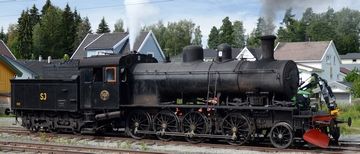

E2 No. 1122 in August 2015 on the Krøderbanen
E2 No. 1122 in August 2015 on the Krøderbanen
Peulle

In the search for a heavy mixed traffic locomotive for lines in the north with a low axle load limit, the SJ introduced the EII in 1907. It had four driving axles and no carrying axles to get the maximum adhesive weight. The driver diameter of 1,388 mm allowed for a top speed of 65 km/h, what was enough for passenger trains in this region. Additionally, they were the first SJ locomotives with inside cylinders. Between 1907 and 1920, 130 were built for the SJ. One of these had received peat firing for trials.

Another company that ordered three of the same locomotives new in 1917 was the Kalmar nya järnvägsaktiebolag (KJ). In 1925 and 1926, the Ostkustbanan (OKB) bought 14 from the SJ. Also the Uddevalla–Vänersborg–Herrljunga Järnväg (UVHJ) and the Skåne-Smålands Järnväg (SSJ) bought one each in 1936 and 1937, respectively. All of these had re-joined the SJ by 1940 when all private railways had been nationalized.

As early as in 1935, the SJ had started to equip these locomotives with a leading axle. In this process, the boiler was also relocated for the right weight distribution and the top speed was increased to 70 km/h. Additionally, some locomotives got a larger four-axle bogie tender instead of the three-axle one. By 1951, a total of 90 had been rebuilt and renamed to E2.

After they had become too slow for passenger trains, they were only used in freight and shunting service on branch lines. All had been withdrawn from active service in 1972, but some were kept as reserves until 1990. Today more than 30 are still existing, with a few of them still operational.

VariantEIIrebuild E2
General
Built1907-19201937-1951
ManufacturerNoHAB, Motala Verkstad, Nya AB Atlas, Vagn- & Maskinfabriksaktiebolaget Falun
Axle config0-8-0 (Eight-coupled) 2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length54 ft 7 1/2 in57 ft 10 7/8 in
Wheelbase16 ft 4 7/8 in23 ft 1 9/16 in
Rigid wheelbase16 ft 4 7/8 in
Empty weight100,310 lbs116,845 lbs
Service weight110,231 lbs126,766 lbs
Adhesive weight110,231 lbs
Total weight182,322 lbs200,620 lbs
Axle load27,558 lbs
Water capacity3,698 us gal
Fuel capacity11,464 lbs (coal)
Boiler
Grate area22.4 sq ft
Firebox area115.2 sq ft
Tube heating area1,102.9 sq ft1,108.3 sq ft
Evaporative heating area1,218 sq ft1,223.4 sq ft
Superheater area352 sq ft344.1 sq ft
Total heating area1,570 sq ft1,567.5 sq ft
VariantEIIrebuild E2
Power Plant
Driver diameter54.6 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 19 11/16 x 25 3/16 in
Power
Power sourcesteam
Estimated power872 hp (650 kW)
Top speed40 mph43 mph
Starting effort26,426 lbf
Calculated Values
steam locomotive
freight
passenger
last changed: 05/2025
