Cambrian Railways No. 2 “Ruthin”
go back
Great Britain | 1860
only one produced

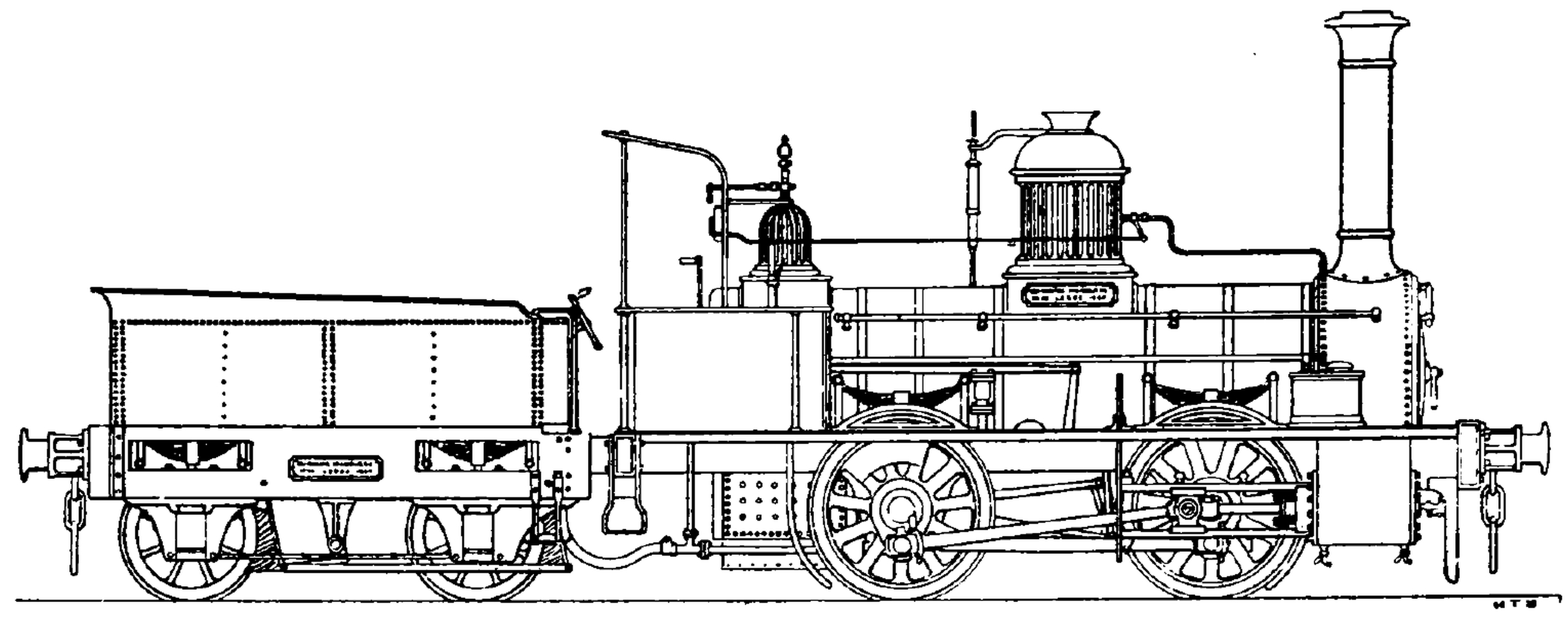

Image of locomotive
Locomotive Magazine, October 1913

One of the locomotives ordered by Thomas Savin for the construction of the Cambrian Railways network was No. 2 “Ruthin”. Delivered in 1860 by Manning, Wardle & Co., it was actually the railway's third locomotive after No. 3 “Milford” that had already been delivered by Sharp, Stewart & Co. in 1859. Designed for subsequent goods traffic, it had only two coupled axles and no leading or trailing axles. The driving wheels had a diameter of four feet and the cylinders measured 14 by 18 inches. It was withdrawn and scrapped in 1873.

General
Built1860
ManufacturerManning, Wardle & Co.
Wheel arr.0-4-0 (Four-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase7 ft
Rigid wheelbase7 ft
Water capacity901 us gal
Fuel capacitycoal
Boiler
Grate area8.5 sq ft
Firebox area50 sq ft
Tube heating area575 sq ft
Evaporative heating area625 sq ft
Total heating area625 sq ft
Power Plant
Driver diameter48 in
Boiler pressure120 psi
Expansion typesimple
Cylinderstwo, 14 x 18 in
Power
Power sourcesteam
Estimated power175 hp (130 kW)
Starting effort7,497 lbf
Calculated Values
steam locomotive
freight
last changed: 04/2026
