Great Northern (US) class Q-1
go back
United States | 1923
30 produced

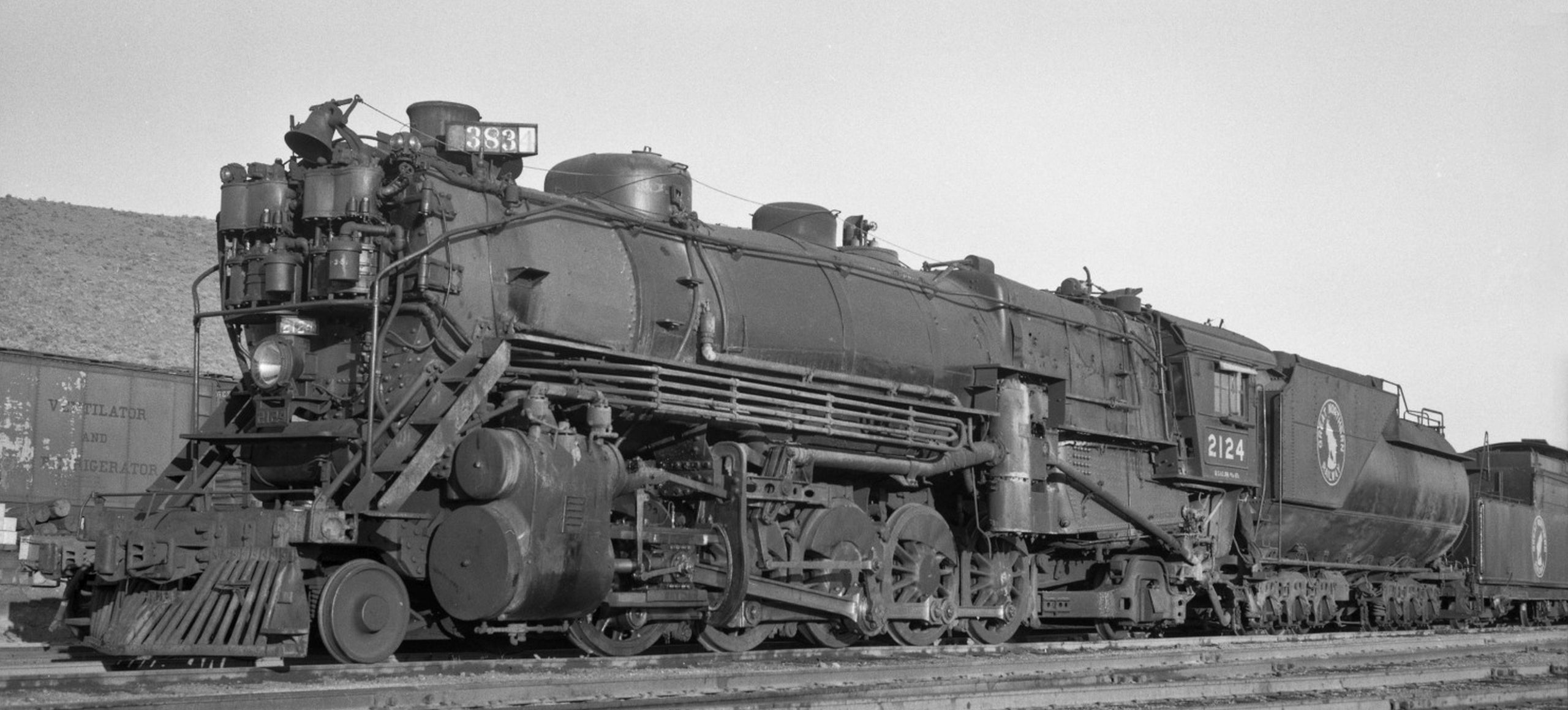

No. 2124 in May 1952 at Klamath Falls, Oregon
No. 2124 in May 1952 at Klamath Falls, Oregon
Martin E. Hansen collection

The first 30 2-10-2 locomotives ordered by the Great Northern were built by Baldwin in 1923. They were designated class Q-1 and numbered 2100 to 2129. Being one of the heaviest locomotives with this wheel arrangement, they weighed nearly 430,000 pounds. The firebox was of the Belpaire type and had a long combustion chamber. With cylinders of 31 by 32 inches and drivers of 63 inches, starting tractive effort was more than 87,000 pounds. 25 of the 30 class members had a trailing truck booster that added an additional 12,200 pounds

On Marias Pass in Montana between Whitefish and Cut Bank, they were rated at 3,000 tons. They burned oil, but a small number was later converted to coal. The oil burners originally had Vanderbilt tenders with 15,000 gallons of water and 5,000 gallons of oil. Later most got new ones with 17,000 and 5,800 gallons. Two even got tenders which carried 22,000 gallons of water. All survived into the fifties and the last three were retired in 1957.

VariantStandard variant2115, 2119
General
Built1923
ManufacturerBaldwin
Wheel arr.2-10-2 (Santa Fé)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length97 ft 10 3/8 in103 ft 1 1/8
Wheelbase32 ft 10 in
Rigid wheelbase22 ft
Total wheelbase86 ft 2 1/2 in92 ft 3 7/8 ft
Service weight428,340 lbs422,340 lbs
Adhesive weight342,490 lbs
Total weight752,840 lbs795,120 lbs
Axle load69,840 lbs
Water capacity17,000 us gal22,000 us gal
Fuel capacity5,800 us gal (oil)
Boiler
Grate area88 sq ft
Firebox area409 sq ft
Tube heating area5,129 sq ft
Evaporative heating area5,538 sq ft
Superheater area1,518 sq ft
Total heating area7,056 sq ft
VariantStandard variant2115, 2119
Power Plant
Driver diameter63 in
Boiler pressure210 psi
Expansion typesimple
Cylinderstwo, 31 x 32 in
Power
Power sourcesteam
Estimated power3,800 hp (2,834 kW)
Starting effort87,131 lbf
Booster12,200 lbf
Calculated Values
steam locomotive
freight
booster
last changed: 03/2026

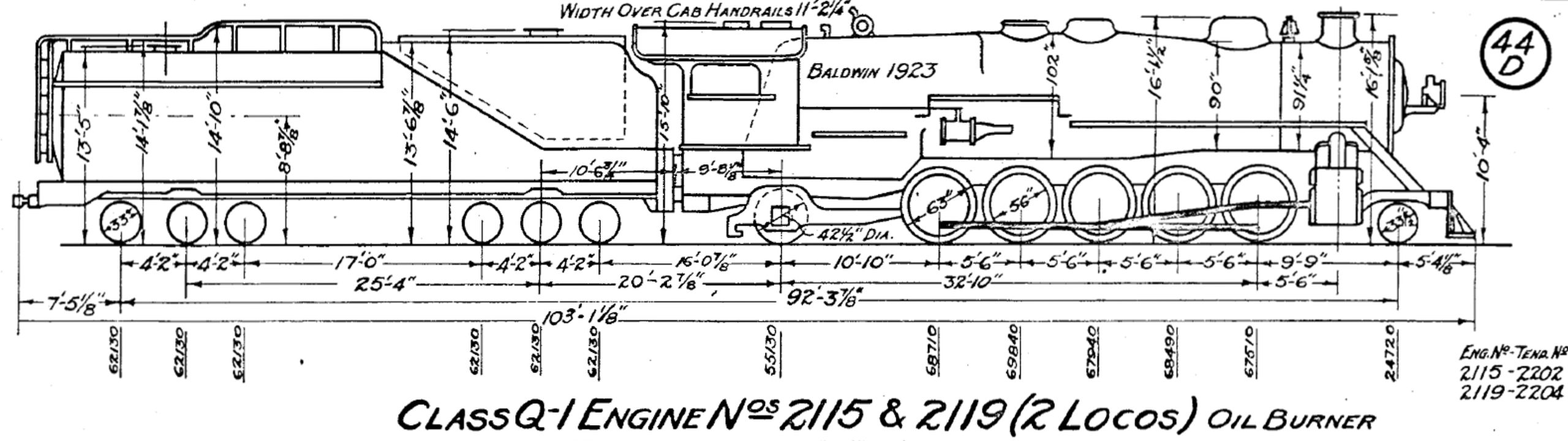

Image of locomotive
Great Northern diagram book, 1946
