Vienna-Raab Railway “Wien II” to “Altmannsdorf”
go back
Austria-Hungary | 1840
6 produced

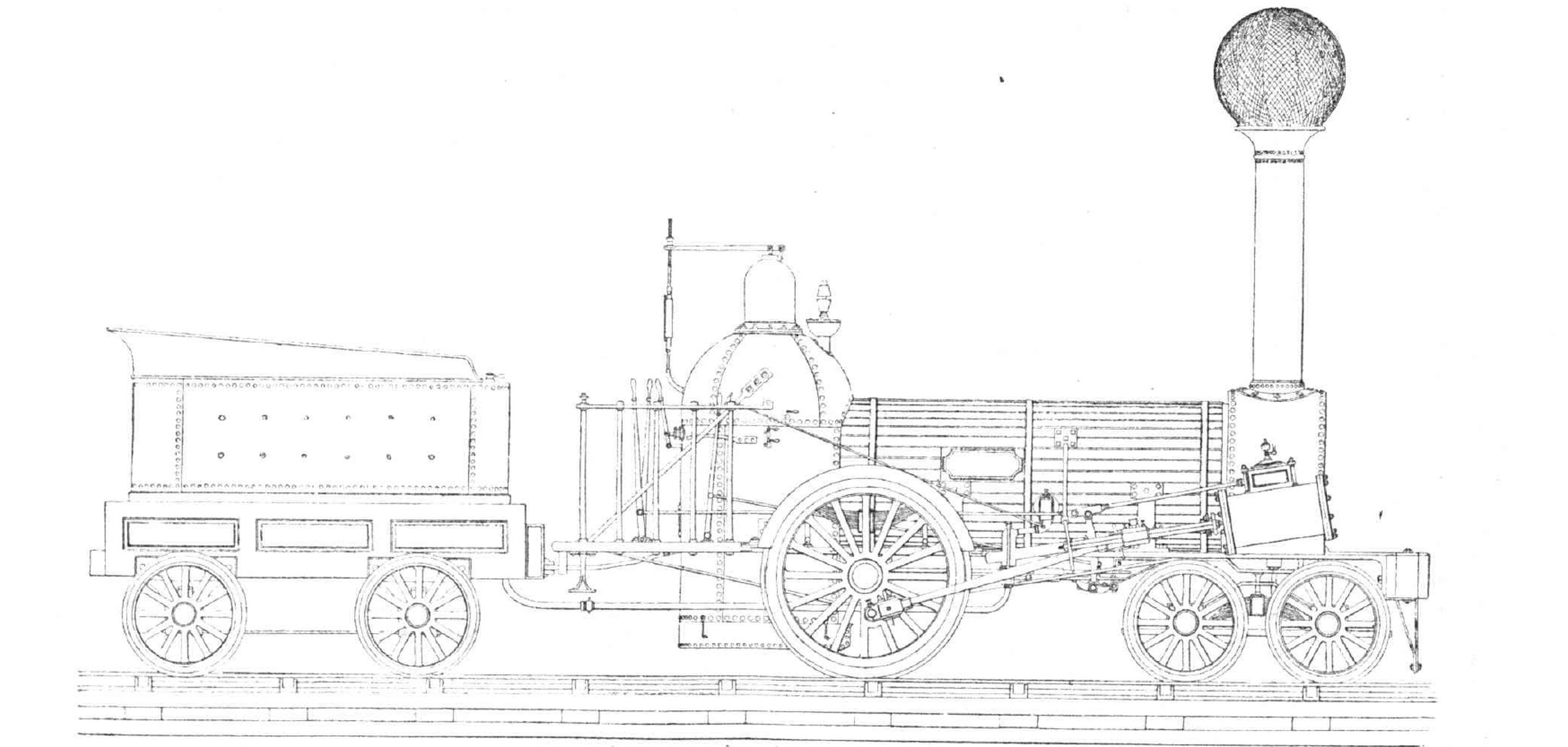

Image of locomotive
Die Lokomotive, July 1917

The “Wien II” of the Vienna-Raab Railway was the first locomotive built in the factory led by John Haswell, later known as the factory of the StEG. It was completed in 1840 and had still been constructed in the same fashion as Norris locomotives, with a 4-2-0 wheel arrangement and an overhanging firebox. It had outside cylinders since the builder was not yet able to manufacture crank axles. It was followed by five similar locomotives called “Hietzing”, “Schönbrunn”, “Belvedere”, “Liechtenstein” and “Altmannsdorf”. Their dimensions, especially in the boiler, were not identical. While the first one had 75 tubes, the others either had 70 or 78. “Schönbrunn” had a boiler explosion in 1847, but the others passed on to the SStB in 1853. They were withdrawn in 1857.

General
Built1840-1841
ManufacturerStEG
Wheel arr.4-2-0 (Jervis)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length loco18 ft 8 3/16 in
Wheelbase9 ft 4 in
Rigid wheelbase9 ft 4 in
Empty weight32,187 lbs
Service weight37,038 lbs
Adhesive weight23,369 lbs
Axle load23,369 lbs
Fuel capacitycoal
Boiler
Grate area8.5 sq ft
Firebox area33.4 sq ft
Tube heating area327.2 sq ft
Evaporative heating area360.6 sq ft
Total heating area360.6 sq ft
Power Plant
Driver diameter49.8 in
Boiler pressure80 psi
Expansion typesimple
Cylinderstwo, 10 5/8 x 17 5/8 in
Power
Power sourcesteam
Estimated power54 hp (40 kW)
Starting effort2,717 lbf
Calculated Values
steam locomotive
passenger
