Stockton & Darlington No. 41 “Dart”
go back
Great Britain | 1840
only one produced

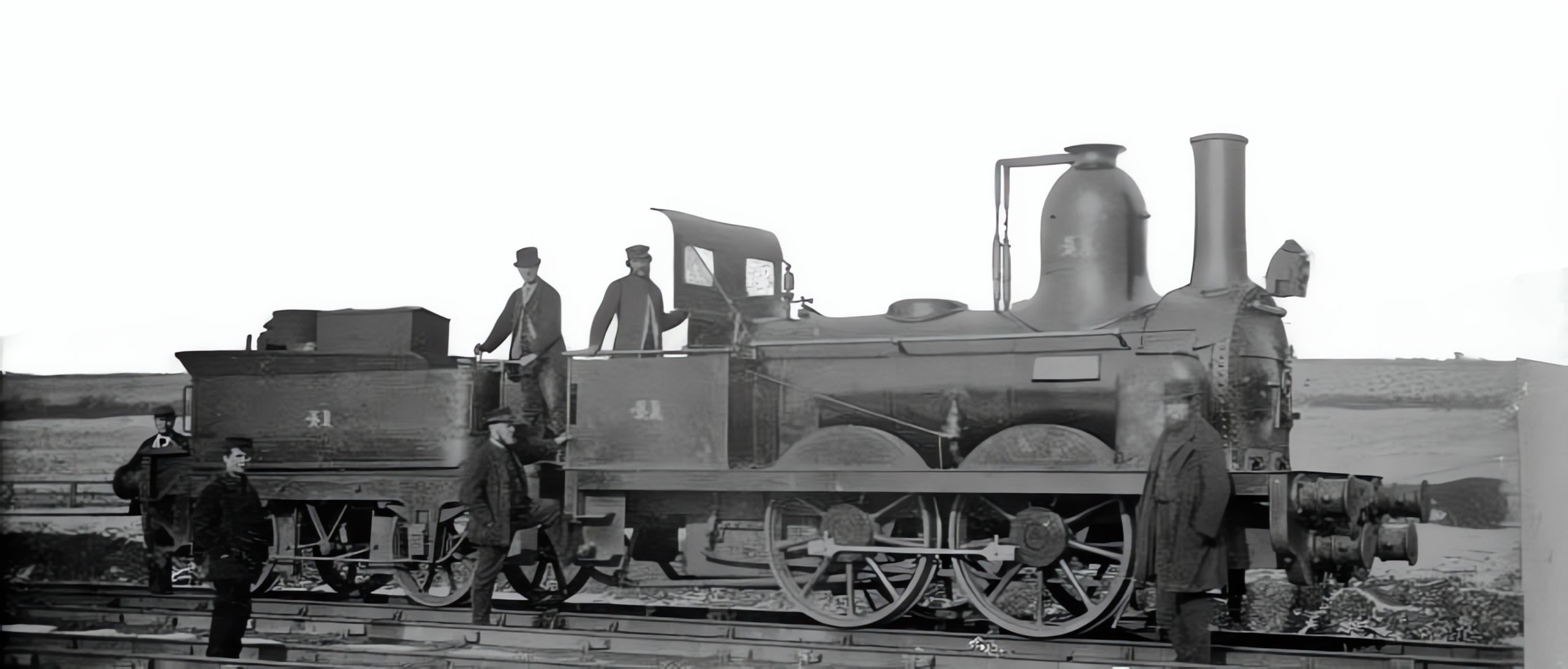

Image of locomotive
LNWR Society archivee

Number 41 “Dart” of the Stockton & Darlington Railway was an 0-4-0 locomotive built by Timothy Hackworth at Shildon. It had inside frames with outside auxiliary frames, inside cylinders and valve gear and outside coupling rods. When built, it had wheels of three and a half feet, cylinders of 12 by 18 inches and a boiler pressure of 60 psi. When displayed at the S&D's 50th anniversary in 1875, it had been rebuilt to cylinders of 13 by 16 inches and 100 psi

Variantas builtrebuilt
General
Built1840
ManufacturerShildon
Axle config0-4-0 (Four-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase4 ft 10 in
Rigid wheelbase4 ft 10 in
Fuel capacitycoal
Boiler
Grate area11.5 sq ft
Evaporative heating area602 sq ft
Total heating area602 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter54 in
Boiler pressure60 psi100 psi
Expansion typesimple
Cylinderstwo, 12 x 18 intwo, 13 x 16 in
Power
Power sourcesteam
Starting effort2,448 lbf4,256 lbf
Calculated Values
steam locomotive
freight
passenger
Timothy Hackworth
