Louisville & Nashville class M-1
go back
United States | 1942
42 produced

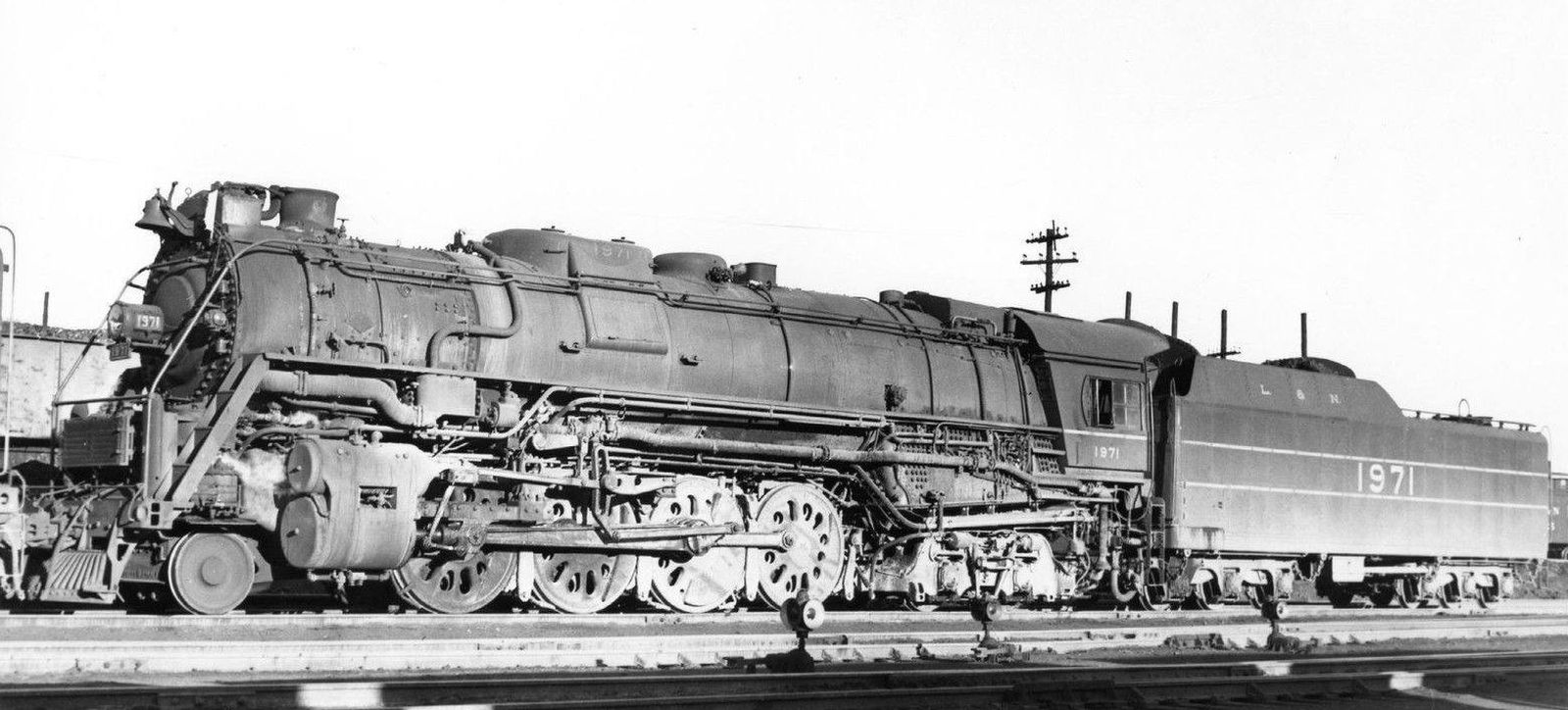

Image of locomotive

The L&N used a total of 42 Berkshires which were commonly known as “Big Emmas”. They were similar to the Berkshires designed by the Van Sweringens for the Nickel Plate Road and also used by other railroads, but they were an independent design that was first built by Baldwin. Designed to take advantage of all modern features used in steam locomotives, they were more complex and more expensive than the other locomotives of the same wheel arrangement. In 1942, 14 were delivered by Baldwin, followed by six more two years later. Lima delivered 22 in 1949 which were somewhat heavier.

The boilers had a combustion chamber, thermic syphons, arch tubes and a Worthington feed water heater. Extensive use of roller bearings in many places reduced friction and consumption. The Lima locomotives were delivered with boosters and the Baldwin locomotives were later retrofitted. Altogether, they were more powerful, but more economical than the previous Mikados. In the result, they could haul coal trains of up to 9,500 tons. Since the Berkshire was a good all-rounder, some were used in passenger service. The first ones were already retired and replaced by diesel locomotives in 1950, only one year after the Lima batch was delivered. The last ones were gone in 1956 and all locomotives were scrapped, only two tenders survived.

General
Built1942, 1949
ManufacturerBaldwin, Lima
Wheel arr.2-8-4 (Berkshire)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase42 ft 4 in
Rigid wheelbase18 ft 3 in
Total wheelbase93 ft 5 in
Service weight447,200 lbs
Adhesive weight268,200 lbs
Total weight831,400 lbs
Axle load68,170 lbs
Water capacity22,000 us gal
Fuel capacity50,000 lbs (coal)
Boiler
Grate area90.2 sq ft
Firebox area463.3 sq ft
Tube heating area4,207.7 sq ft
Evaporative heating area4,671 sq ft
Superheater area1,908 sq ft
Total heating area6,579 sq ft
Power Plant
Driver diameter69 in
Boiler pressure265 psi
Expansion typesimple
Cylinderstwo, 25 x 32 in
Power
Power sourcesteam
Estimated power4,600 hp (3,430 kW)
Starting effort65,290 lbf
Booster14,100 lbf
Calculated Values
steam locomotive
freight
passenger
booster
last changed: 11/2025
