FC Palpa á Chancay Dübs 0-4-0
go back
Peru | 1874
3 produced

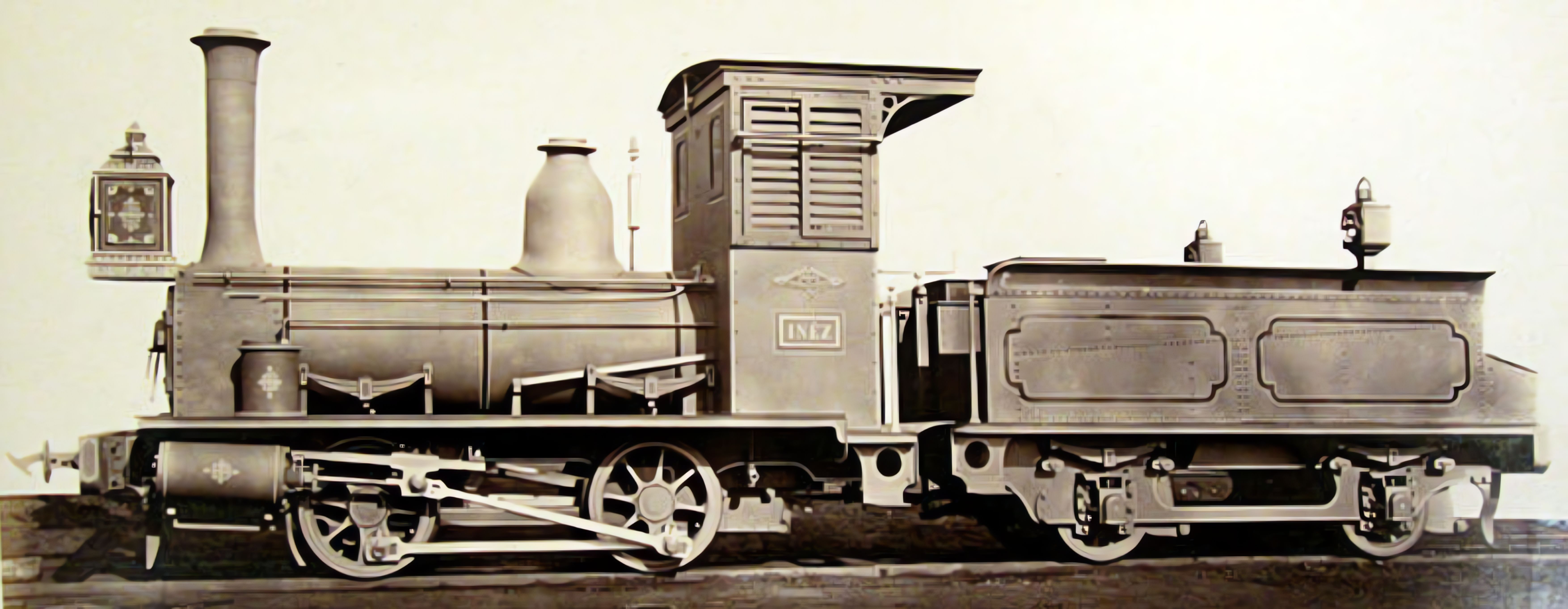

Inés
Inés
Martin Coombs / www.railwaysofthefarsouth.co.uk

The Ferrocarril Palpa á Chancay was founded in 1873 by Don Ceferino Elguera who wanted to construct a 25 km long line between his Hacienda at Palpa and the port at Chancay. Among the first four locomotives were three 0-4-0 tender locomotives built in 1874 by Dübs which carried the names “Raymondi”, “Inés” and “José Payán”. They were ordered through the London Banking Association.

Records suggest that the fourth locomotive named “Palpa” was similar, but five tonnes heavier. Since the lists of Dübs only show three locomotives delivered to this line, it has to be assumed that this one was of a different design and supplied by another manufacturer. Later the line became part of the Ferrocarril y Muelle de Chancay and ceased operation not later than 1927.

General
Built1874
ManufacturerDübs
Axle config0-4-0 (Four-coupled)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Empty weight20,160 lbs
Total weight55,104 lbs
Fuel capacitycoal
Boiler
Power Plant
Driver diameter30 in
Expansion typesimple
Cylinderstwo, 9 x 18 in
Power
Power sourcesteam
Calculated Values
steam locomotive
freight
narrow gauge
last changed: 06/2025
