Paris-Orléans No. 265 to 390
French State Railway 121 A
go back
France | 1876
126 produced

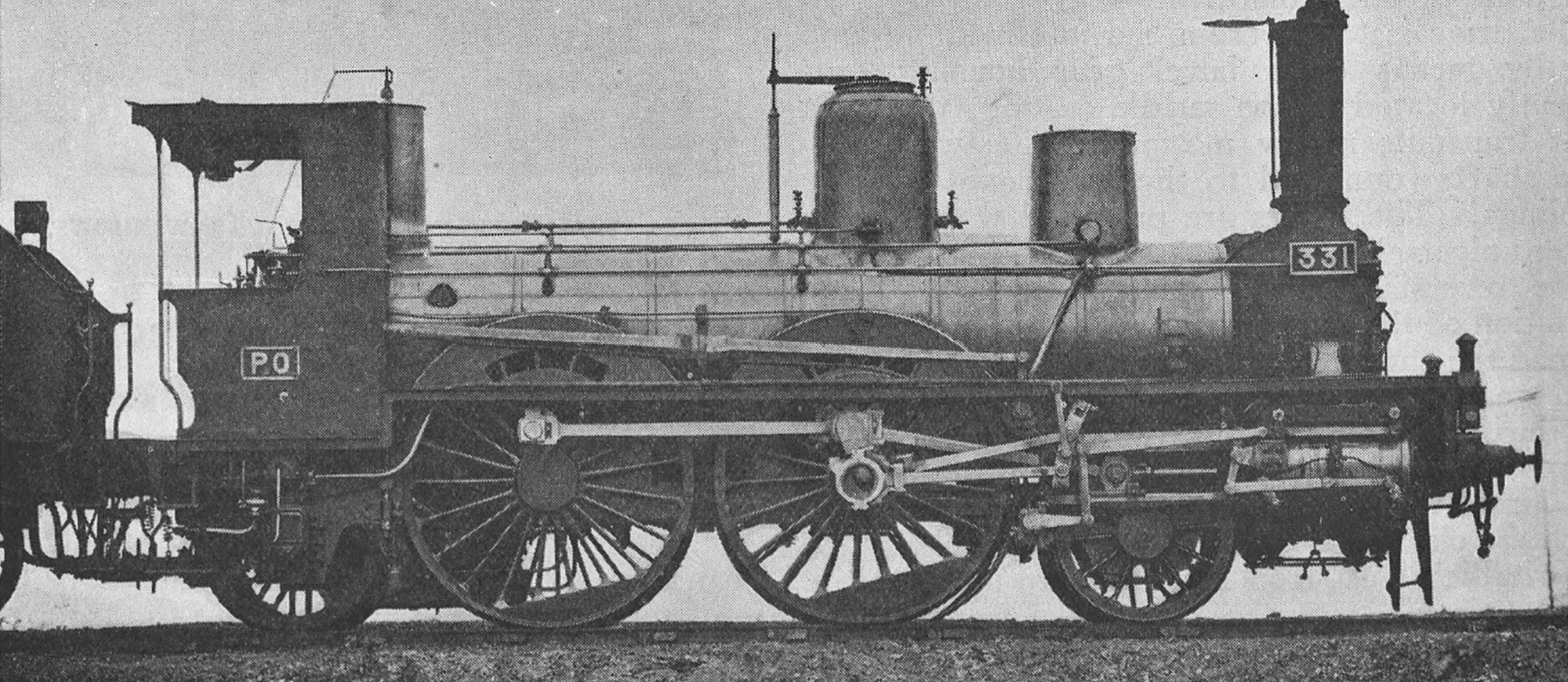

No. 331, built in 1882 by Sharp, Stewart & Co.
No. 331, built in 1882 by Sharp, Stewart & Co.
Locomotive Magazine, September 1933

After Victor Forquenot had created his first 2-4-2 express locomotives by adding a trailing axle to his 2-4-0, he ordered new locomotives of this wheel arrangement to be built in 1876. They were designed for lines with inclines of 1 to 1.6 percent and curves with a radius between 300 and 500 metres. Driver diameter was 2,000 mm with the shortest possible wheelbase of 2,100 mm. To increase running stability, the coupling between the locomotive and tender was tightened with springs.

Production was carried out in a total of five places between 1876 and 1884. With 56 locomotives, SACM built the most. 20 each came from the PO's workshops at Tours, from Sharp, Stewart & Co. and from Saint-Léonard. Only ten were delivered from Carels. This resulted in a total of 126, which were numbered 265 to 390. No. 331 was later used to test the Durant and Lencauchez valve gear. Some passed on to the SNCF as 121 A, the last ones were used until the end of World War II.

General
Built1876-1884
ManufacturerSACM, Tours, Sharp, Stewart & Co., Saint-Léonard, Carels
Wheel arr.2-4-2 (Columbia)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase18 ft 8 7/16 in
Rigid wheelbase6 ft 10 11/16 in
Total wheelbase37 ft 0 7/8 in
Service weight93,917 lbs
Adhesive weight55,997 lbs
Total weight149,032 lbs
Water capacity2,642 us gal
Fuel capacity6,614 lbs (coal)
Boiler
Grate area17.4 sq ft
Firebox area114.1 sq ft
Tube heating area1,423.4 sq ft
Evaporative heating area1,537.5 sq ft
Total heating area1,537.5 sq ft
Power Plant
Driver diameter78.7 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 17 5/16 x 25 9/16 in
Power
Power sourcesteam
Estimated power536 hp (400 kW)
Starting effort10,819 lbf
Calculated Values
steam locomotive
express
last changed: 04/2026

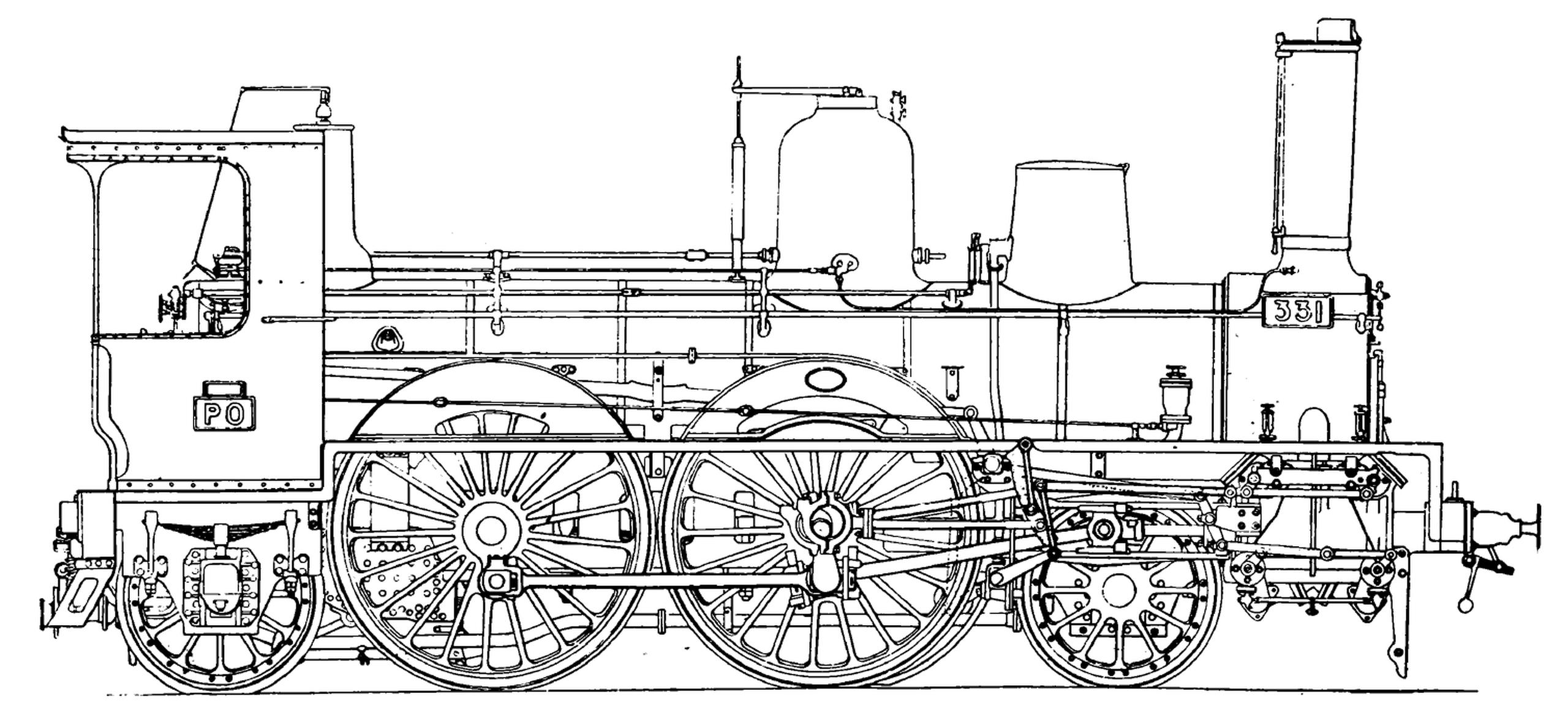

Image of locomotive
Locomotive Magazine, December 1914
