San'yō Railway type 8
Japanese Government Railways class 5060
go back
Japan | 1895
only one produced

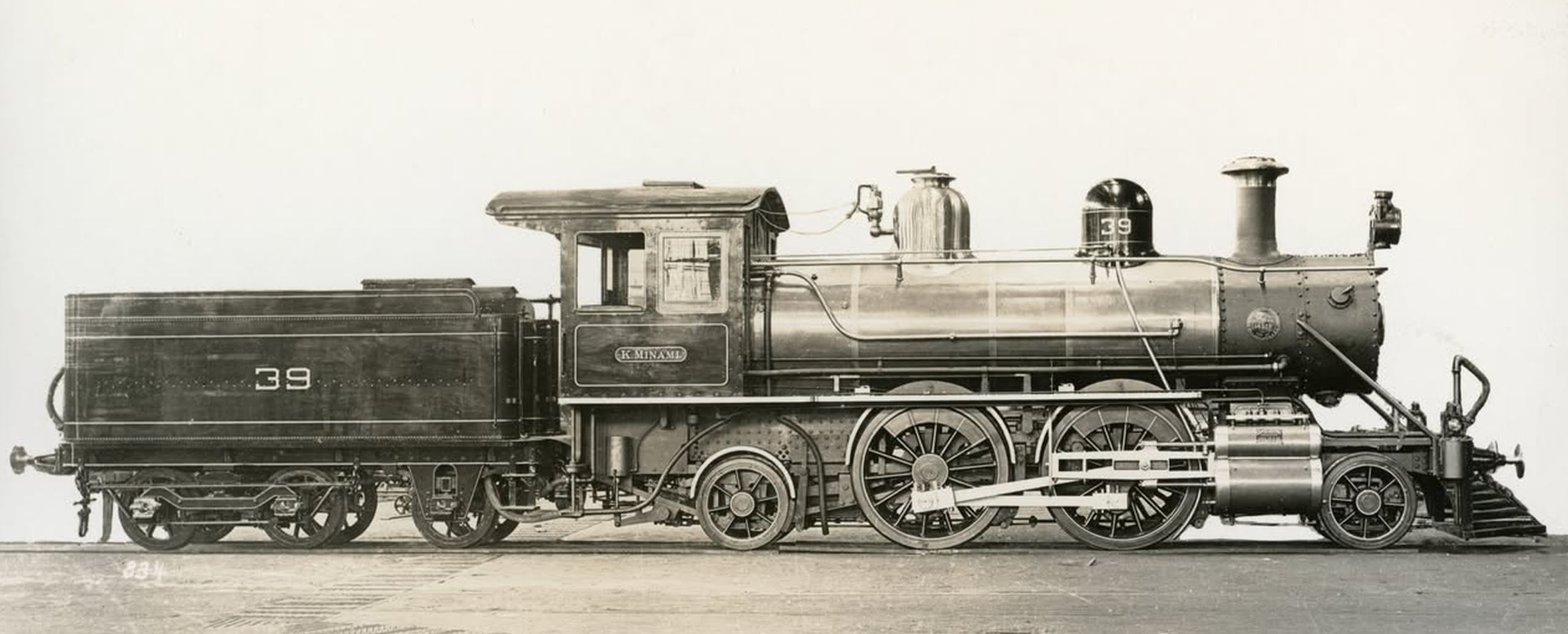

Image of locomotive
H.L. Broadbelt collection

No. 39 of the San'yō Railway was a single 2-4-2 passenger locomotive built by Baldwin in 1895. The manufacturer designated it type 8-14/28 1/4C and it originally carried a name plate “K. Minami” after the chief engineer of the railway. It was a four-cylinder Vauclain compound with high pressure cylinders above the low pressure cylinders. The leading axle was mounted in a flexible Bissel truck, while the trailing one only had some lateral play. After the railway was nationalized in 1906, the new scheme of 1909 made the single locomotive class 5060. In later years it was used in freight service and its withdrawal came in 1919.

General
Built1895
ManufacturerBaldwin
Wheel arr.2-4-2 (Columbia)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length48 ft 3 in
Wheelbase12 ft
Rigid wheelbase6 ft
Total wheelbase19 ft 8 in
Empty weight74,600 lbs
Service weight81,400 lbs
Adhesive weight50,200 lbs
Axle load24,500 lbs
Water capacity2,400 us gal
Fuel capacity5,600 lbs (coal)
Boiler
Grate area13.5 sq ft
Firebox area86.9 sq ft
Tube heating area802.1 sq ft
Evaporative heating area889 sq ft
Total heating area889 sq ft
Power Plant
Driver diameter60 in
Boiler pressure180 psi
Expansion typecompound
Cylindersfour, HP: 10 x 22 in
and LP: 17 x 22 in
Power
Power sourcesteam
Estimated power350 hp (261 kW)
Starting effort8,336 lbf
with start valve10,003 lbf
Calculated Values
steam locomotive
passenger
Vauclain compound
