Indian Railways class YL
go back
India | 1952
264 produced

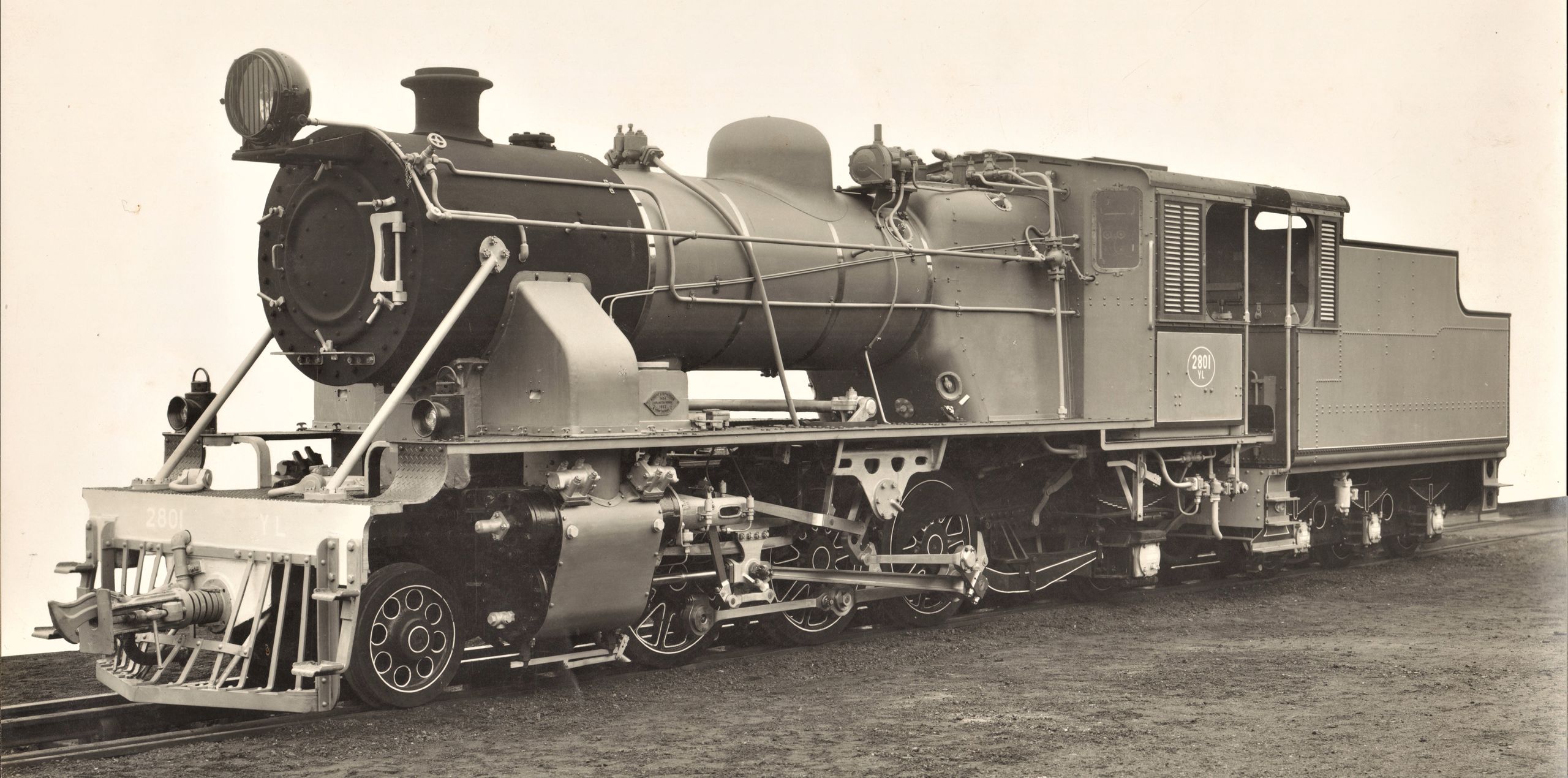

Image of locomotive
flickr/Historical Railway Images

The YL was an IRS design for mixed traffic on metre gauge. It appeared in the early fifties and was a successor of the 2-6-2 class YF of the twenties. It still had a low axle load of only eight tons for a wide route availability. The boiler was mounted high on a pedestal and had a Belpaire firebox. Of the total production of 264 locomotives, 151 were built by Henschel. 63 came from Hitachi, 40 from MÁVAG and 10 from Robert Stephenson and Hawthorns.

130 were operated by the North Eastern Railway and 74 by the Western Railway. Smaller numbers came to the Southern, Northern and Central Railway. The last ones were withdrawn in 1976 and 5001 is still on static display at Gorakhpur. 5000 and 5010 are also existing, but are stored in poor condition.

General
Built1952-1957
ManufacturerHenschel, Hitachi, MÁVAG, Robert Stephenson & Hawthorns
Wheel arr.2-6-2 (Prairie)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length53 ft 9 1/2 in
Wheelbase21 ft 4 in
Rigid wheelbase8 ft 4 in
Total wheelbase43 ft 10 in
Service weight85,680 lbs
Adhesive weight53,536 lbs
Total weight159,600 lbs
Axle load18,032 lbs
Water capacity3,603 us gal
Fuel capacity10,080 lbs (coal)
Boiler
Grate area17.8 sq ft
Firebox area86.9 sq ft
Tube heating area435.1 sq ft
Evaporative heating area522 sq ft
Superheater area130 sq ft
Total heating area652 sq ft
Power Plant
Driver diameter43 in
Boiler pressure210 psi
Expansion typesimple
Cylinderstwo, 12 1/4 x 22 in
Power
Power sourcesteam
Estimated power450 hp (336 kW)
Starting effort13,705 lbf
Calculated Values
steam locomotive
passenger
freight
narrow gauge
