French Northern Railway No. 3.1101 and 3.1102
go back
| 1911
2 produced

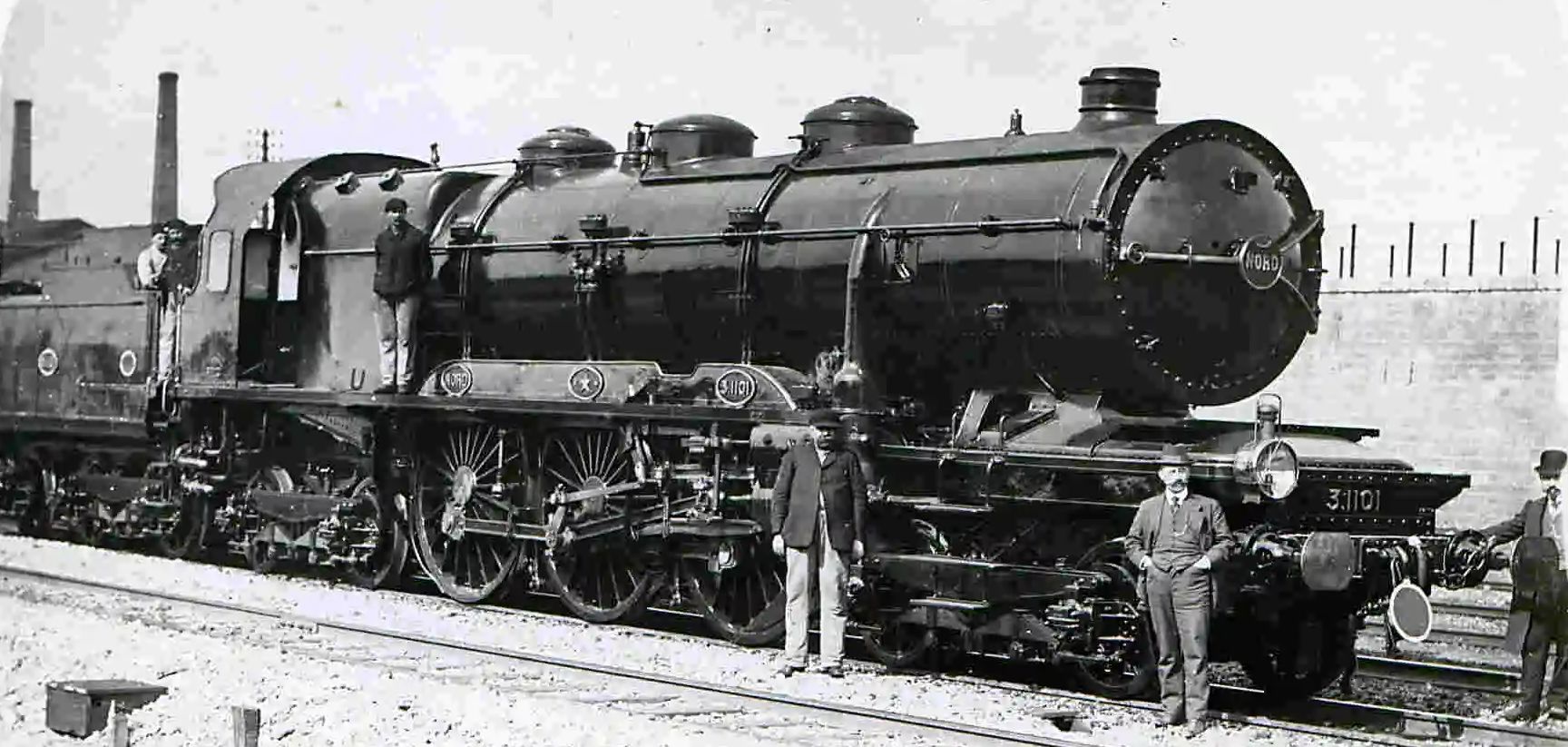

Image of locomotive

The 3.1101 and 3.1102 were two 4-6-4 locomotives designed by Gaston du Bousquet for the Nord and built at their La Chapelle works in 1911. They were the first tender locomotives of this wheel arrangement in the world and were built because the existing Atlantics were not powerful anymore for the growing train weights. They were four-cylinder De Glehn compounds and had drivers with a diameter of 2,040 mm. Du Bousquet died while they were still under construction. For nearly 30 years, they remained the only 4-6-4 tender locomotives in France since the railways ordered efficient Pacifics instead.

3.1101 was completed in April 1911 and had a conventional superheated boiler, although with a large grate of 4.28 square metres. 3.1102 was completed three months later and had a water-tube boiler. This did not prove itself and was exchanged for a conventional boiler in 1913. This locomotive was withdrawn in 1936 and sectioned. Today it can be found at the Cité du Train in Mulhouse and is filled with lights that show the path of the fire, smoke, water and steam. 3.1101 was withdrawn in 1939.

Variant3.11013.1102
General
Built1911
ManufacturerLa Chapelle
Wheel arr.4-6-4 (Hudson)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length80 ft 10 1/4 in
Wheelbase50 ft 5 1/2 in
Rigid wheelbase14 ft 1 5/16 in14 ft 5 3/16 in
Total wheelbase69 ft 5 7/8 in
Service weight224,871 lbs
Adhesive weight119,049 lbs
Total weight349,432 lbs
Axle load40,785 lbs
Water capacity6,868 us gal
Fuel capacity15,432 lbs (coal)
Boiler
Grate area46.1 sq ft
Firebox area209 sq ft1,270.1 sq ft
Tube heating area3,187 sq ft2,629.8 sq ft
Evaporative heating area3,396 sq ft3,900 sq ft
Superheater area753 sq ft667 sq ft
Total heating area4,149.1 sq ft4,567 sq ft
Variant3.11013.1102
Power Plant
Driver diameter80.3 in
Boiler pressure232 psi
Expansion typecompound
Cylindersfour, HP: 17 5/16 x 25 3/16 in
and LP: 24 7/16 x 28 3/4 in
four, HP: 17 11/16 x 25 3/16 in
and LP: 24 7/16 x 28 3/4 in
Power
Power sourcesteam
Indicated power2,132 hp (1,590 kW)
Top speed75 mph
Starting effort25,768 lbf26,579 lbf
with start valve30,922 lbf31,895 lbf
Calculated Values
steam locomotive
express
De Glehn compound
last changed: 11/2025

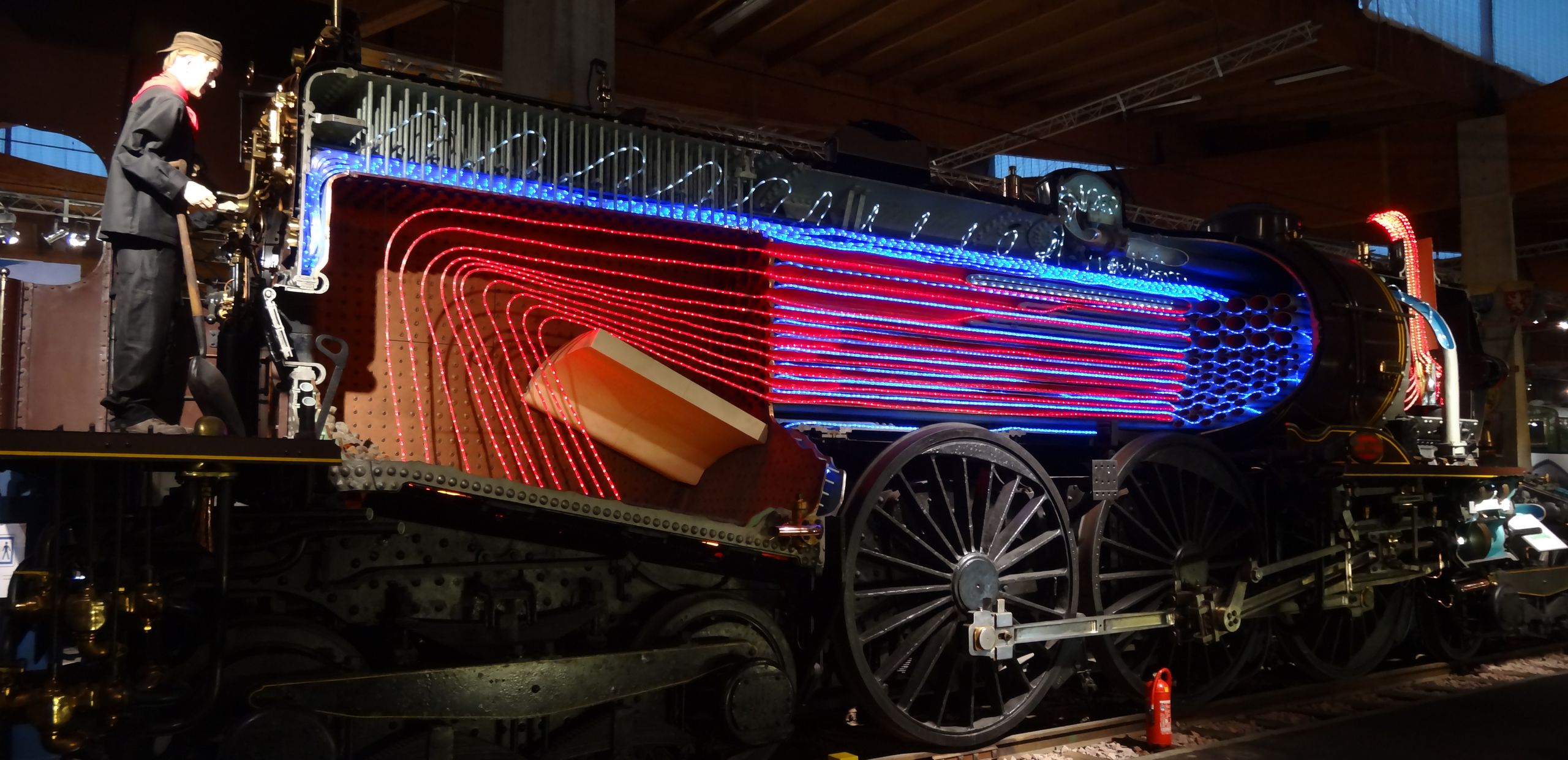

3.1102 with sectioned and illuminated boiler at the Cité du Train, Mulhouse
