Maschinenbau Kiel G 763 C
go back
Germany | 1982
27 produced

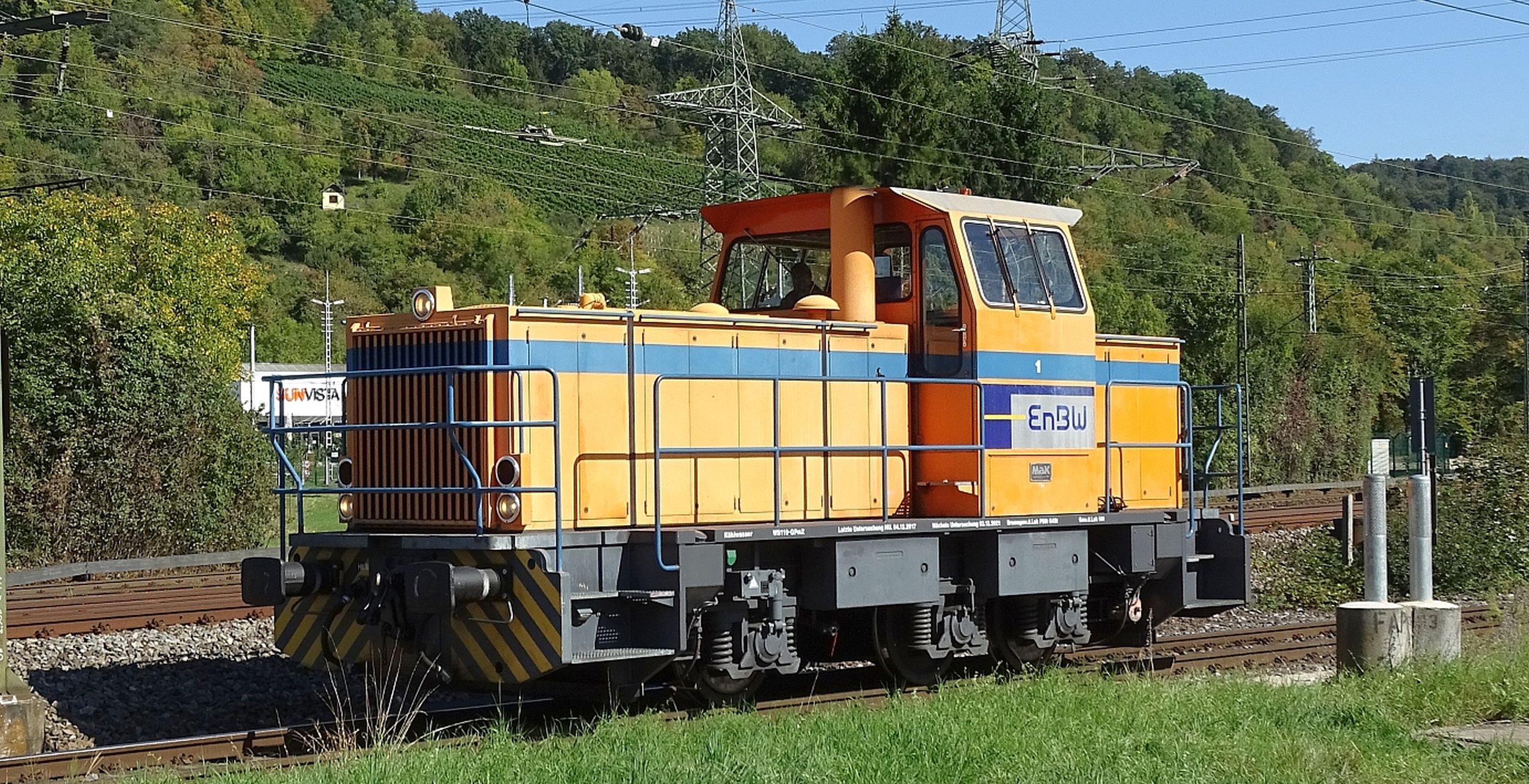

EnBW No. 1 in September 2020 at Altbach
EnBW No. 1 in September 2020 at Altbach
Joachim Lutz

The G 763 C is a three-axle diesel shunter used by several German industrial and port operators. Together with its predecessor, the G 761 C, it was part of MaK's third generation of diesel locomotives. Features of this generation were fast-running engines and cabs without side doors which were only accessible through running boards. The G 763 C was powered by a six-cylinder MTU 396 with 560 kW or 760 hp. The Voith hydraulic transmission allows a top speed of 32 or 40 km/h, depending on customer requirement. The basic variant weighs 54 tonnes, but ballast weights can be used to create a service weight of up to 66 tonnes. Between 1982 and 1993, 27 locomotives were built for 15 different customers. The largest customers were the Siegener Kreisbahn and the Hanover ports with three each.

Variantlight variantheavy variant
General
Built1982-1993
ManufacturerMaK
Wheel arr.C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length32 ft 4 9/16 in
Wheelbase12 ft 5 5/8 in
Rigid wheelbase12 ft 5 5/8 in
Service weight119,049 lbs145,505 lbs
Adhesive weight119,049 lbs145,505 lbs
Axle load37,479 lbs48,502 lbs
Boiler
Variantlight variantheavy variant
Power Plant
Power
Power sourcediesel-hydraulic
Top speed25 mph
EngineMTU 6V 396 TC13
Engine typeV6 diesel
Fuel396 us gal (diesel)
Engine output751 hp (560 kW)
Calculated Values
diesel locomotive
switcher
last changed: 06/2026
