Weyerhaeuser Timber 2-6-6-2ST
go back
| 1928
7 produced

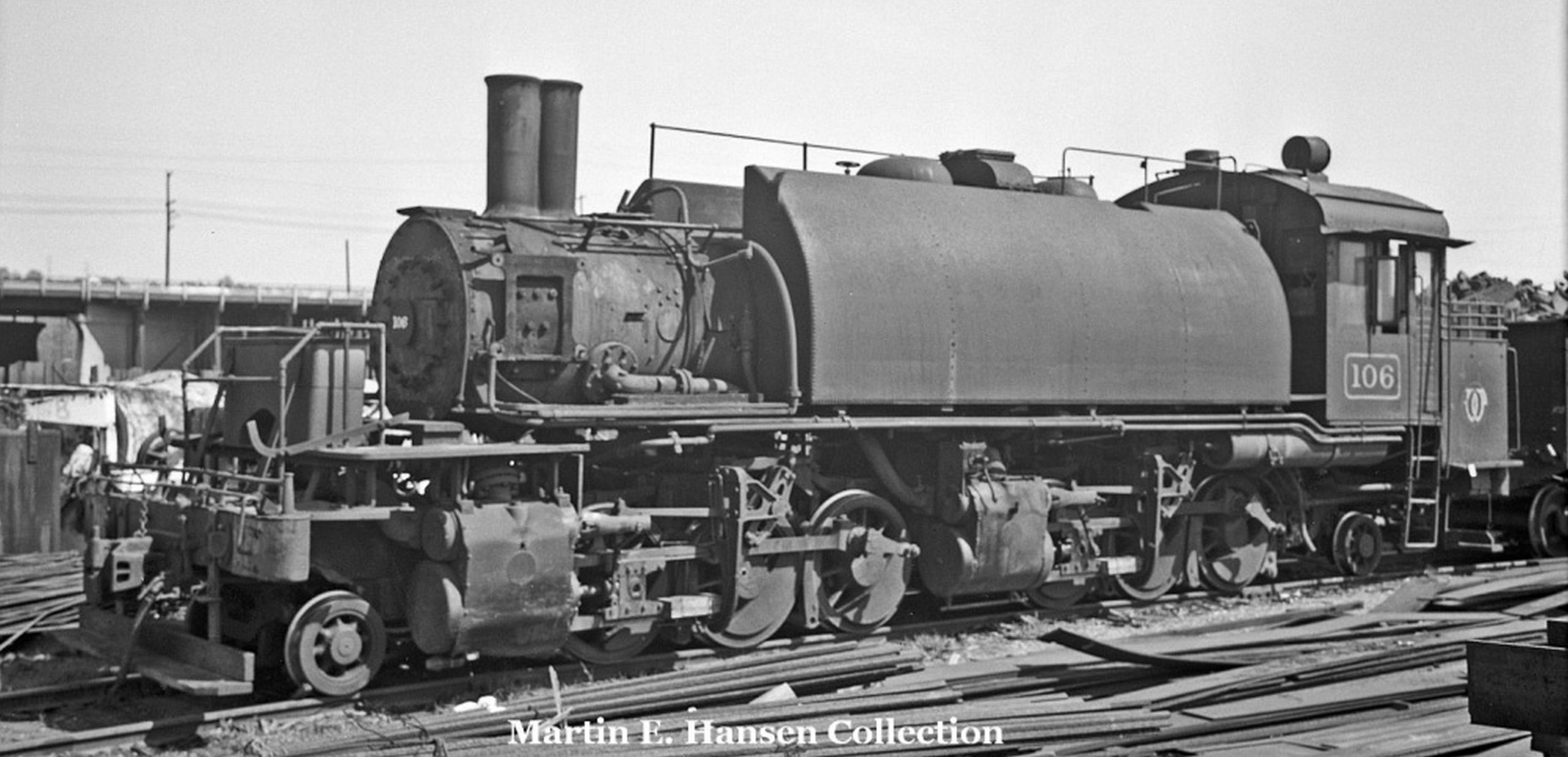

No. 106
No. 106
Martin Hansen collection

The Weyerhaeuser Timber Co. was one of the American logging railroads which used Mallets instead of geared steam locomotives for their steep and winding lines. They hoped that these would be easier to maintain than a Shay, while having the same flexibility. Their first 2-6-6-2ST saddle tank locomotive No. 110 was delivered by Baldwin in 1928 for lines with grades between four and eight percent. It was oil fired for reduced fire risk when running in dry forests. The water tank was split into two parts which were located on sides of the boiler. In accordance with the original Mallet principle, it was a compound.

In the next year numbers 105 and 106 followed, but in contrast to the first one these had four cylinders of the same size. In other respects they were identical to 110, but heavier. In 1929, Baldwin delivered No. 111 that also worked with simple expansion, but had a much larger boiler. Some years later in 1936, Baldwin delivered three more which included the second No. 110, No. 112 and No. 9. These were again nearly identical to the first No. 110, but had larger cylinders.

111 was retired as the first one in 1947. It was sold to Canadian Forest Products and used on Vancouver Island until 1962. The others were used by Weyerhaeuser until the fifties and several were then sold to Rayonier, where they received an additional tender. The first 110 was restored between 1999 and 2001 and is today running on the Black Hill Central. The second 110 was sold to the California Western in 1967 to haul the Super Skunk tourist train. Later it came to the San Diego Railroad Museum.

Variant110/1105, 106111110/2, 112, 9
General
Built192819291936
ManufacturerBaldwin
Wheel arr.2-6-6-2ST (Mallet Mogul)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase37 ft 9 in
Rigid wheelbase8 ft
Service weight222,000 lbs246,000 lbs264,000 lbs247,000 lbs
Adhesive weight183,000 lbs208,000 lbs220,000 lbs210,000 lbs
Water capacity3,200 us gal2,500 us gal
Fuel capacity1,200 us gal (oil)
Boiler
Grate area26.2 sq ft41.5 sq ft26.2 sq ft
Firebox area128 sq ft142 sq ft128 sq ft
Tube heating area1,526 sq ft2,158 sq ft1,526 sq ft
Evaporative heating area1,654 sq ft2,300 sq ft1,654 sq ft
Superheater area358 sq ft583 sq ft358 sq ft
Total heating area2,012 sq ft2,883 sq ft2,012 sq ft
Variant110/1105, 106111110/2, 112, 9
Power Plant
Driver diameter44 in
Boiler pressure200 psi210 psi200 psi
Expansion typecompoundsimplecompound
Cylindersfour, HP: 17 x 24 in
and LP: 26 x 24 in
four, 16 x 24 infour, HP: 18 x 24 in
and LP: 28 x 24 in
Power
Power sourcesteam
Estimated power1,100 hp (820 kW)1,500 hp (1,119 kW)1,100 hp (820 kW)
Starting effort37,545 lbf47,476 lbf49,850 lbf42,517 lbf
with start valve45,054 lbf51,020 lbf
Calculated Values
steam locomotive
tank locomotive
Articulated
Mallet
freight
last changed: 03/2026

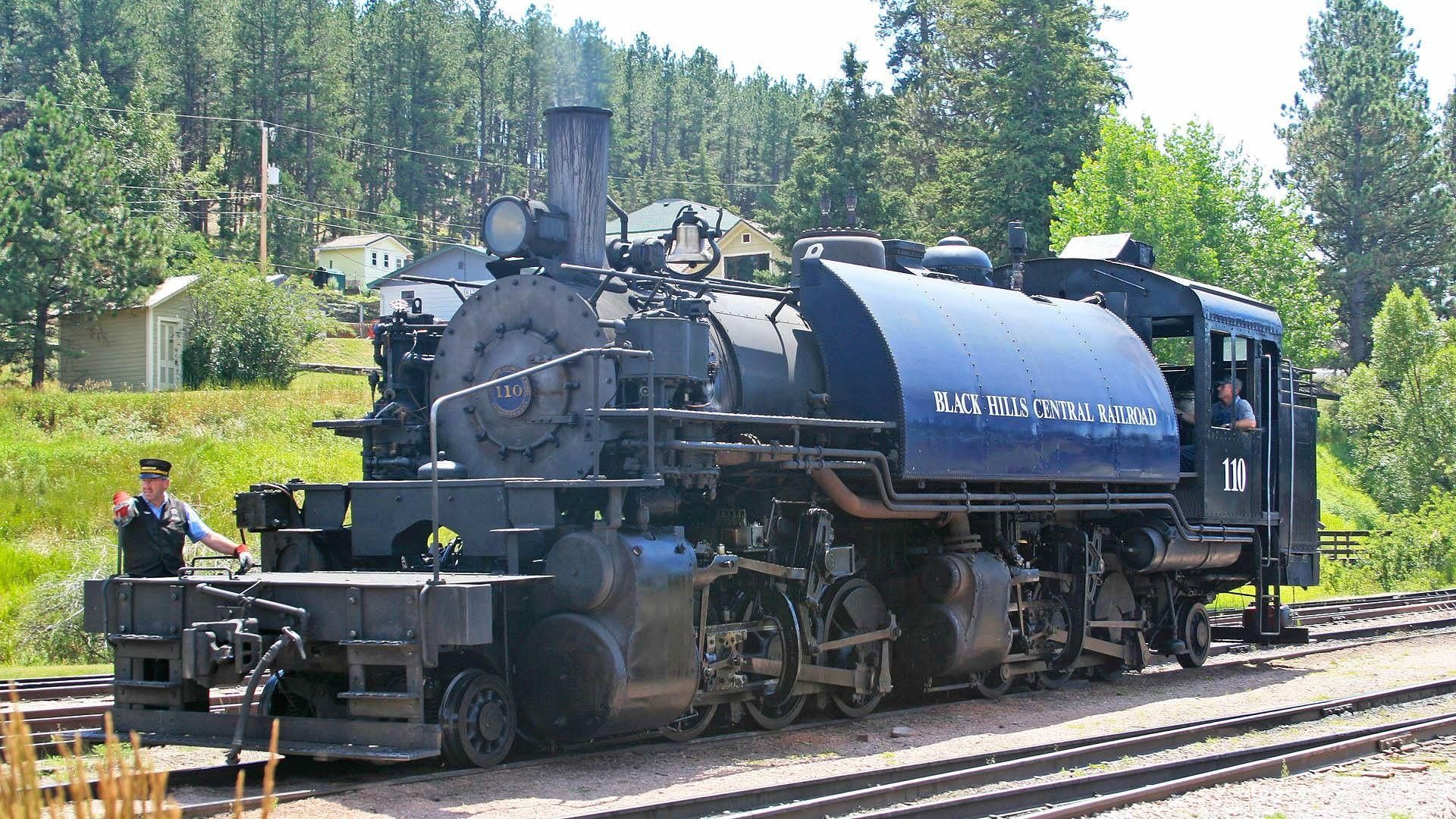

The first No. 110, now running on the Black Hills Central
The first No. 110, now running on the Black Hills Central
