Buffalo, Rochester & Pittsburgh class XX
Baltimore & Ohio class EE-2a
go back
United States | 1918
9 produced

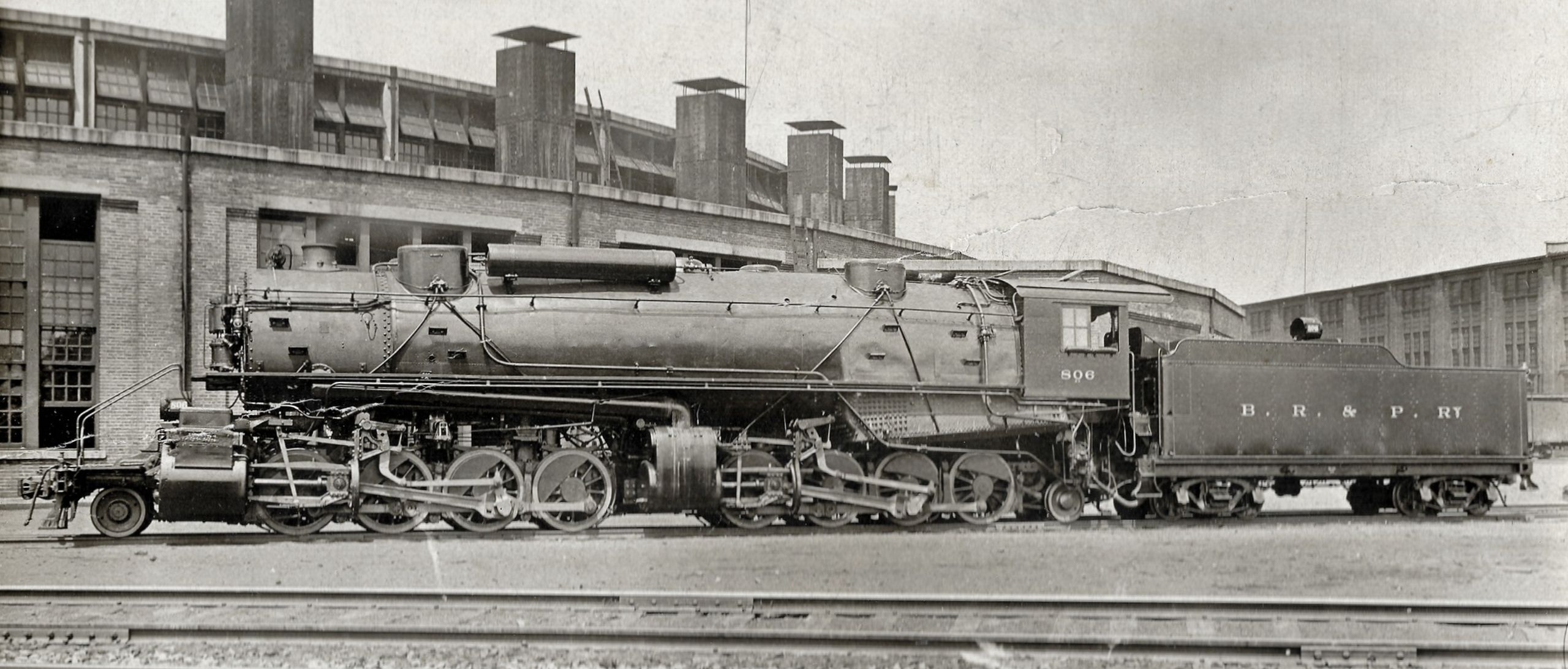

No. 806 at DuBois, Pennsylvania
No. 806 at DuBois, Pennsylvania
Taylor Rush collection

The 2-8-8-2 Mallets built by ALCO-Brooks in 1918 for the BR&P were among the heaviest locomotives in the world when they were built. They had drivers of 57 inches and cylinder diameters of 28 and 44 inches, with a stroke of 32 inches. The firebox had a grate of 99.2 square feet and a direct heating surface of 410 square feet. Additionally there were arch tubes with a total surface of 69 square feet. A Duplex stoker was installed to feed such a huge boiler. The valve gear was operated by a Ragonnet & Mellin power reverser.

They were rated to haul 140 empties or 70 loaded cars over a 1.1% incline of 17 miles. Although the railroad originally planned to order 15 of these locomotives, the first order only included seven locomotives which were delivered in March and April 1918. Two more were delivered in September 1923 which were somewhat heavier, but otherwise identical. Running numbers were 800 to 808. When the BR&P was bought by the Baltimore & Ohio in 1932, they became class EE-2a No 7316 to 7324. They were scrapped in 1950 and 1951.

Variant800-806807-808
General
Built19181923
ManufacturerALCO
Wheel arr.2-8-8-2 (Mikado Mallet)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length102 ft 3 3/8 in
Wheelbase57 ft 5 in
Rigid wheelbase15 ft 6 in
Total wheelbase91 ft 5 in
Service weight569,000 lbs575,000 lbs
Adhesive weight500,000 lbs502,500 lbs
Total weight774,600 lbs780,600 lbs
Water capacity12,000 us gal
Fuel capacity28,000 lbs (coal)
Boiler
Grate area99.2 sq ft
Firebox area479 sq ft
Tube heating area6,163 sq ft
Evaporative heating area6,642 sq ft
Superheater area1,632 sq ft
Total heating area8,274 sq ft
Variant800-806807-808
Power Plant
Driver diameter57 in
Boiler pressure200 psi
Expansion typecompound
Cylindersfour, HP: 28 x 32 in
and LP: 44 x 32 in
Power
Power sourcesteam
Estimated power3,400 hp (2,535 kW)
Starting effort106,514 lbf
with start valve127,817 lbf
Calculated Values
steam locomotive
freight
Mallet
last changed: 05/2026

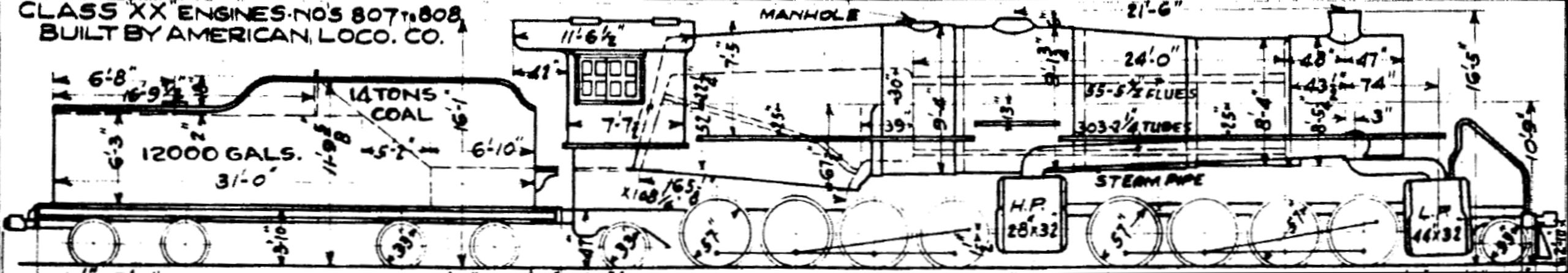

Schematic drawing
