Chemins de fer départementaux X 900 (A 75 D)
go back
France | 1946
16 produced

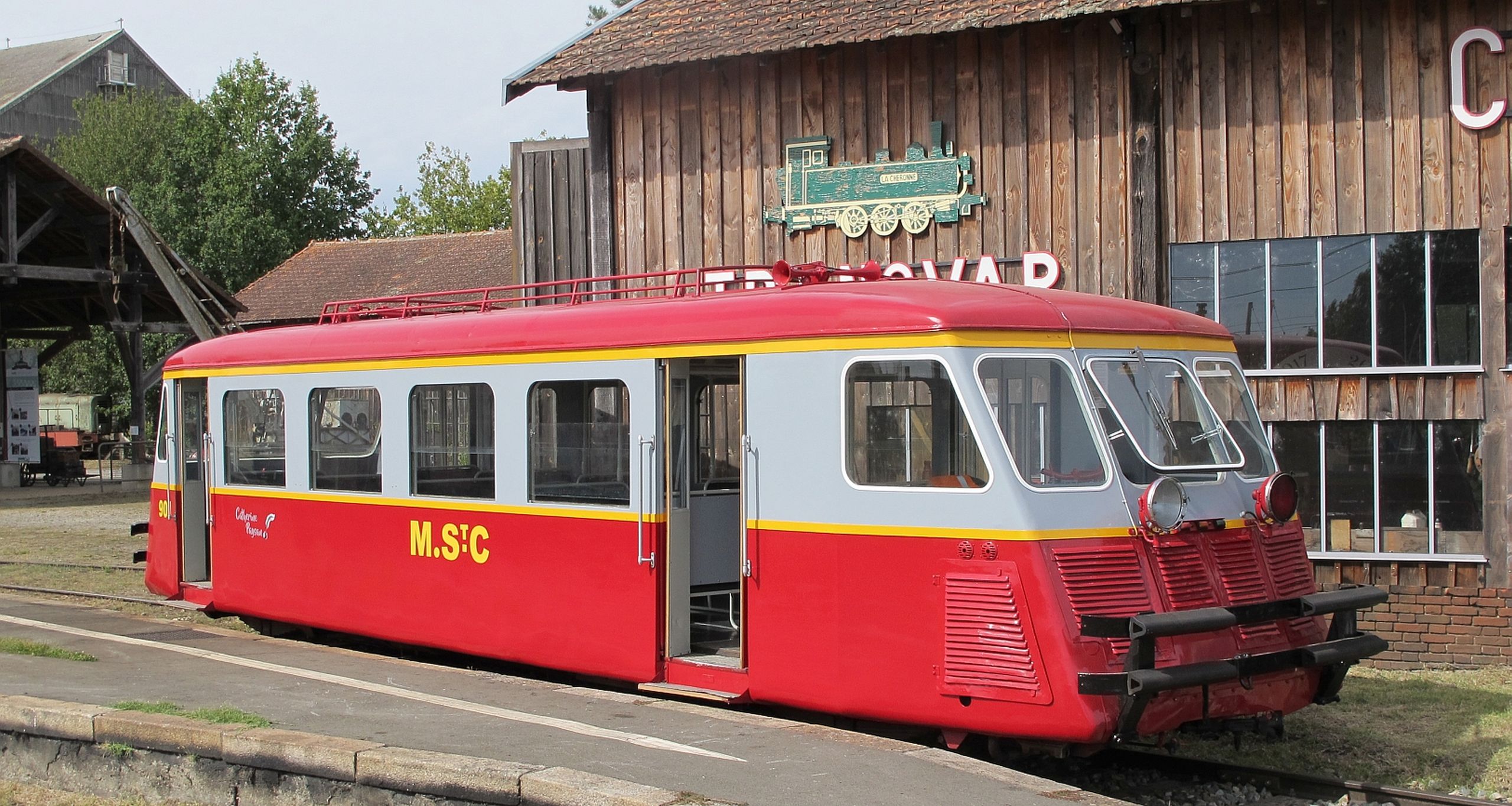

X 901 of the Chemin de fer touristique de la Sarthe in September 2018
X 901 of the Chemin de fer touristique de la Sarthe in September 2018
Didier Duforest

The X 900 was a type of light diesel railcar developed by Établissements Billard for the Compagnie de chemins de fer départementaux in the forties. Its manufacturer designated it A 75 D. It had two axles, one of which was powered by an 80-hp diesel engine mounted transversely on one end. Cabs were on both ends. The interior had 32 seats and additional space for 25 standing passengers. Luggage could be stored in a rack on the roof.

Only the first five were built by Billard at Tours between 1946 and 1949. Eleven more were built by the CFE's own shops at Montmirail between 1948 and 1953. Later the power was increased to 100 hp. But two lost their engine and were now used as trailers. The last ones were withdrawn from passenger service in 1968. After that, some were used as inspection vehicles. Five have been preserved, three of which are being owned by the Chemin de fer touristique de la Sarthe.

General
Built1946-1953
ManufacturerÉtablissements Billard, Montmirail
Wheel arr.A1
Gauge4 ft 8 1/2 in (Standard gauge)
Seats32
Dimensions and Weights
Length36 ft 11 11/16 in
Empty weight15,432 lbs
Service weight26,455 lbs
Boiler
Power Plant
Power
Power sourcediesel-mechanic
Top speed47 mph
EnginePanhard 4 HL
Engine type4-cyl. diesel
Fuel20 us gal (diesel)
Engine output79 hp (59 kW)
Calculated Values
DMU
railbus
local
last changed: 05/2026
