Glasgow & South Western class 540
go back
Great Britain | 1922
6 produced

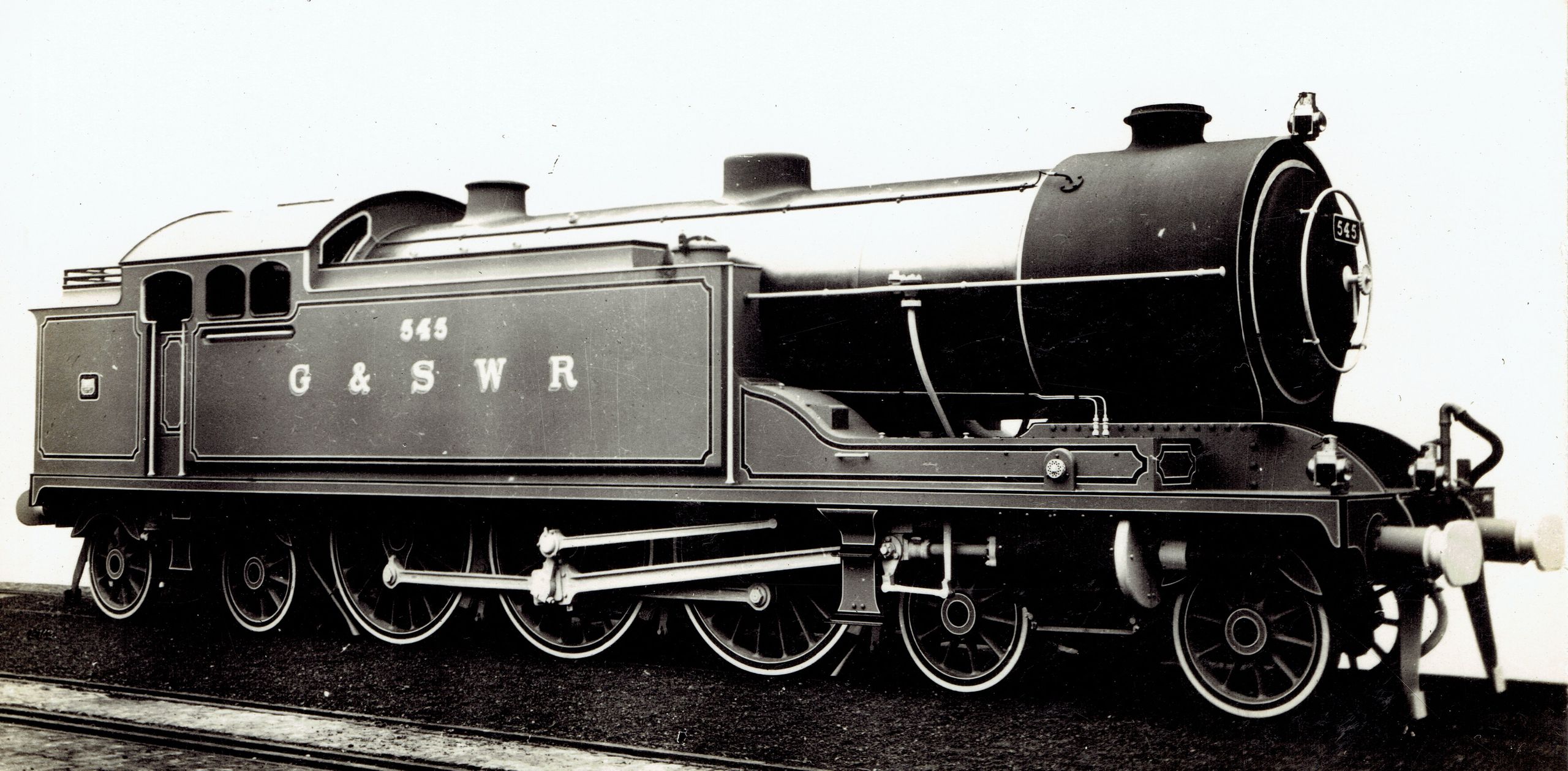

No. 545
No. 545
flickr/Historical Railway Images

At a time when the Glasgow & South Western needed a much more powerful express locomotive, Robert Whitelegg had just come from the London, Tilbury & Southend as new Chief Mechanical Engineer. He had been an advocate of heavy tank locomotives in suburban and commuter service and had introduced Britain's first 4-6-4T at the LT&SR with his class 2100. Now he even chose this wheel arrangement for his new express locomotive.

Only six were built by North British in 1922. They were the most powerful locomotives of the G&SWR and served as their flagship, incorporating the latest practices in steam locomotive design. The railway successfully marketed them as the “Baltic Class”, while the crews called them “Big Pugs”, since they were tank locomotives

Shortly after their introduction, they became part of the LMS. With increasing traffic on the former G&SWR network, the LMS introduced a larger number of smaller tender locomotives for express service. Since there was now little to do for these large tank locomotives, they were withdrawn in 1935 and 1936 once their boiler was due for renewal.

General
Built1922
ManufacturerNorth British
Axle config4-6-4T (Hudson)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase39 ft
Rigid wheelbase13 ft 2 in
Service weight221,920 lbs
Adhesive weight120,960 lbs
Axle load40,320 lbs
Water capacity2,882 us gal
Fuel capacity8,960 lbs (coal)
Boiler
Grate area30 sq ft
Firebox area156 sq ft
Tube heating area1,574 sq ft
Evaporative heating area1,730 sq ft
Superheater area255 sq ft
Total heating area1,985 sq ft
Power Plant
Driver diameter72 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 22 x 26 in
Power
Power sourcesteam
Estimated power1,400 hp (1,044 kW)
Starting effort26,741 lbf
Calculated Values
steam locomotive
tank locomotive
express
passenger
last changed: 04/2025
