Italian State Railway D.445
go back
Italy | 1974
150 produced

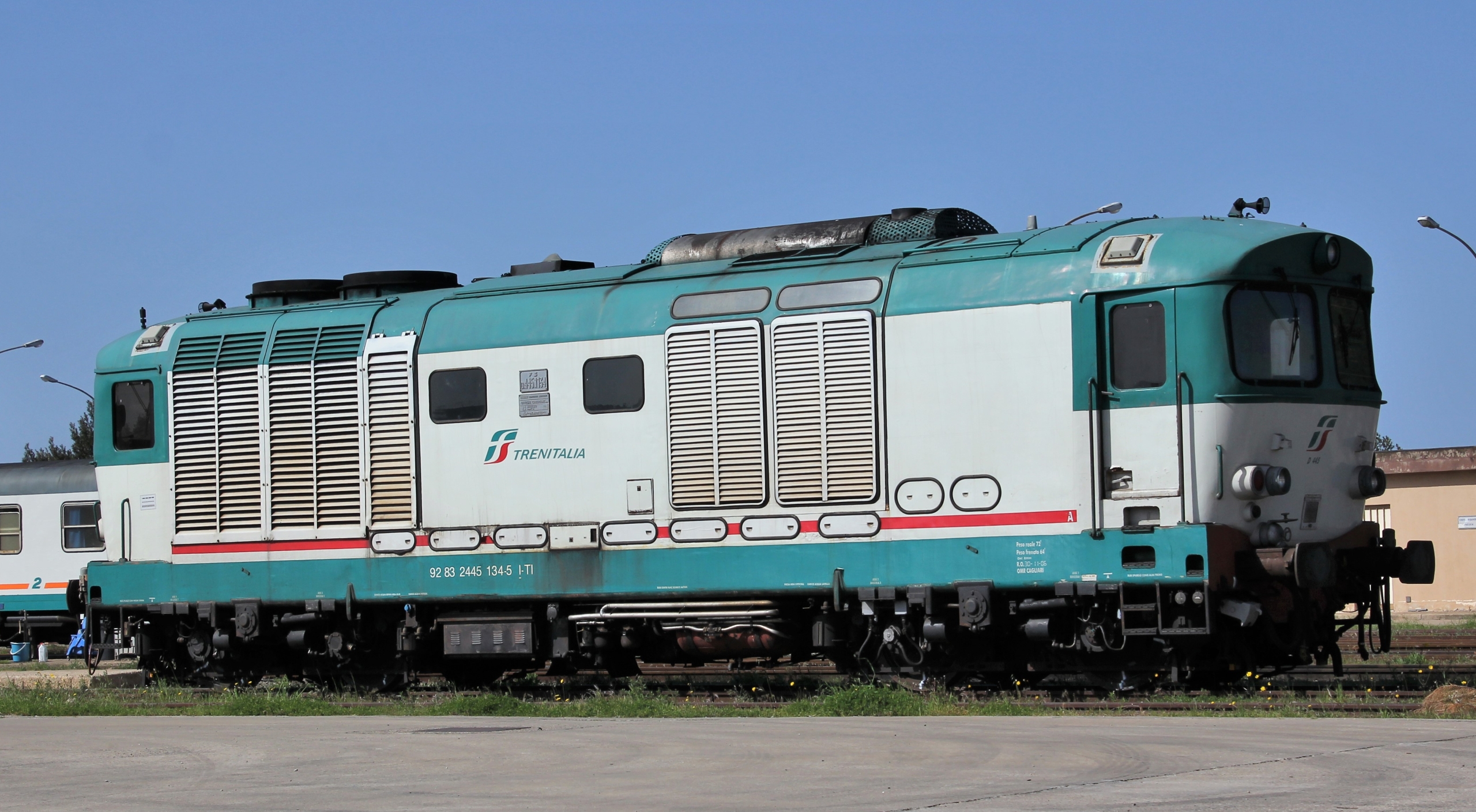

Locomotive of the first batch with rounded cab windows
Locomotive of the first batch with rounded cab windows
Gianni Careddu

The D.445 is a class of four-axle diesel locomotives for use in passenger service. They are being powered by a FIAT V12 with 1,560 kW or 2,090 hp that is connected to a large generator for traction and a smaller generator for train supply. Like on many French locomotives, each bogie has only one traction motor that transmits its power via a dancing ring to both axles. Top speed is 130 km/h. With maximum load on the train supply generator, 1,140 kW or 1,530 hp are available for traction.

Three batches of 35, 20 and 95 locomotives were built by FIAT between 1974 and 1988 with additional equipment from Sofer and Officine Meccaniche Calabresi. The first batch could be distinguished by rounded front windows and only weighed 72 tonnes. The two other batches had flat windows, multiple controls and were four tonnes heavier. They were not only used on the Italian mainland, but also on Sardinia. Until today, more than half of the class has either been stored or scrapped after being replaced by DMUs

General
Built1974-1988
ManufacturerFIAT
Wheel arr.B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length46 ft 3 1/8 in
Wheelbase34 ft 2 1/4 in
Rigid wheelbase6 ft 5 3/16 in
Service weight167,551 lbs
Adhesive weight167,551 lbs
Axle load41,888 lbs
Boiler
Power Plant
Power
Power sourcediesel-electric
Top speed81 mph
Starting effort49,458 lbf
EngineFIAT A210-12
Engine typeV12 diesel
Engine output2,092 hp (1,560 kW)
Calculated Values
diesel locomotive
passenger
last changed: 11/2025
D.445.1034 with “Centoporte” carriages in May 2015 on the bridge over the Nocella between Carini and Partinico
D.445.1034 with “Centoporte” carriages in May 2015 on the bridge over the Nocella between Carini and Partinico
Giorgio Stagni
