Companhia Paulista No. 204 to 211, later 401 to 408
go back
Brazil | 1921
8 produced

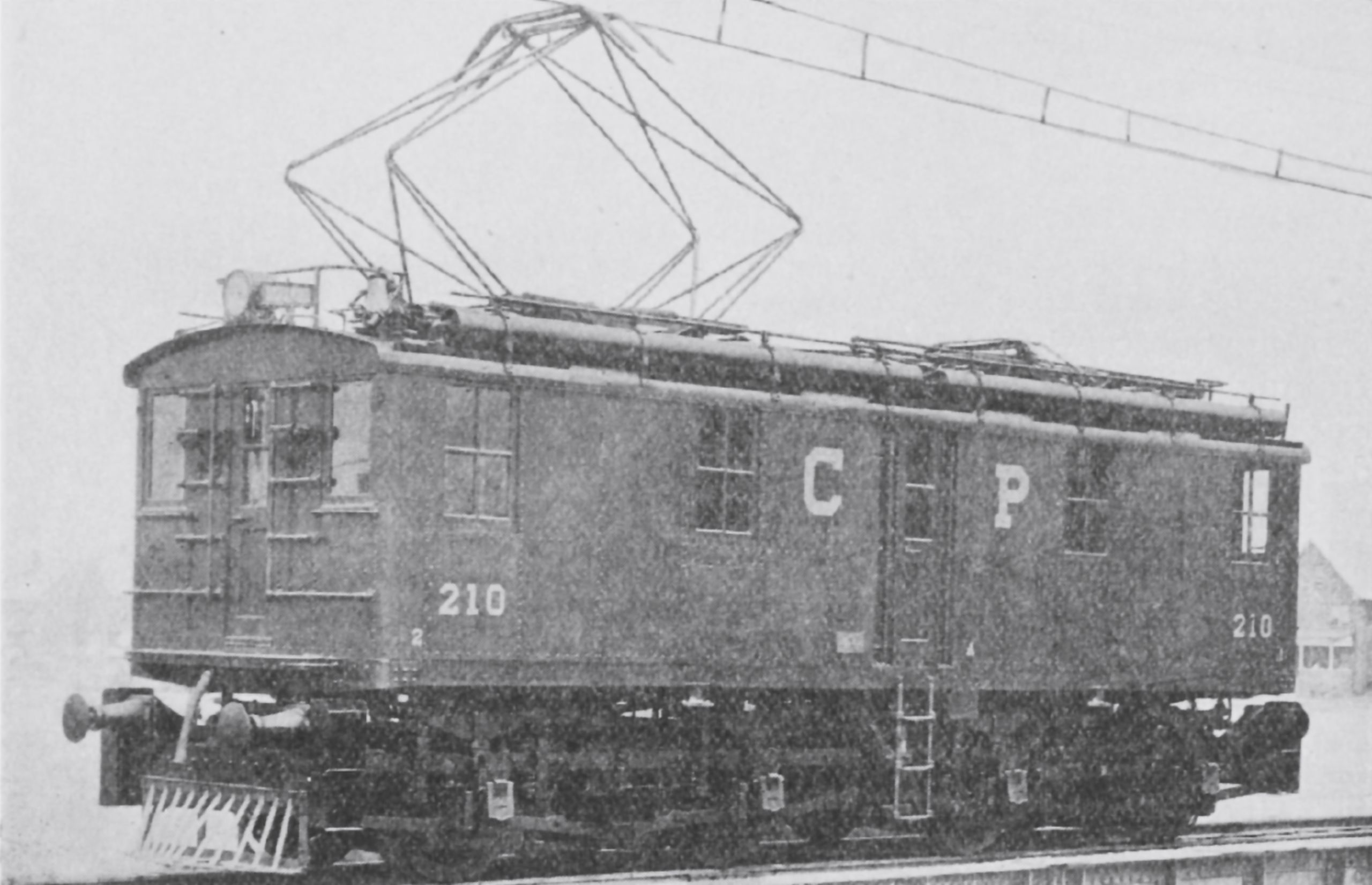

Image of locomotive
Locomotive Magazine, January 1922

In 1921 ALCO-GE built twelve electric locomotives for the Paulista of which eight were designed for freight traffic. The first line that had been electrified with 3 kV DC was the one between Jundiahy and Campinas that was 45 km long and had inclines of 1.8 percent. The main reason for electrification was that fire wood for steam locomotives had become scarce and good coal was difficult to obtain.

The freight locomotives had two two-axle bogies with a 420 hp traction motor on each axle and a boxcab body that led to the nickname “Quadradinha”. Haulage capacity on 1.8 percent inclines was 700 tonnes at speeds between 19 and 26 km/h. When running downhill, they could use their regenerative brake. Originally numbered 204 to 211, they were later renumbered to 401 to 408. When FEPASA was founded in 1971, they became class 6400. They were withdrawn between 1974 and 1978.

General
Built1921
ManufacturerALCO-GE
Wheel arr.B-B
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Length39 ft 2 in
Wheelbase26 ft 8 in
Rigid wheelbase8 ft 8 in
Service weight200,000 lbs
Adhesive weight200,000 lbs
Axle load50,000 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power1,680 hp (1,253 kW)
Continuous power1,600 hp (1,193 kW)
Top speed28 mph
Starting effort60,000 lbf
Calculated Values
electric locomotive
freight
last changed: 01/2026

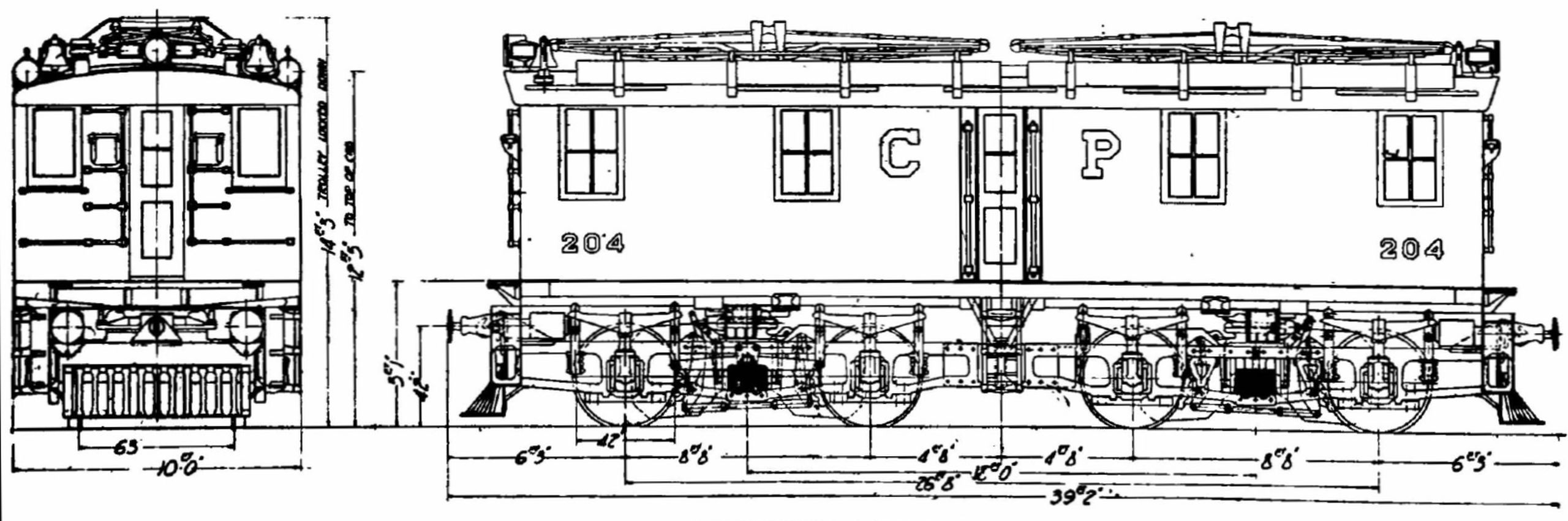

Schematic drawing
Schematic drawing
Locomotive Magazine, January 1922
