British Rail class 92
go back
Great Britain | 1993
46 produced
92010 in Caledonian Sleeper livery in December 2017 at Edinburgh
92010 in Caledonian Sleeper livery in December 2017 at Edinburgh
Bill Harrison

The class 92 is a six-axle mixed-traffic electric locomotive designed for working through the Channel tunnel. This included international freight trains and the planned, but never introduced “Nightstar” service that was intended to run between various destinations in Britain and the European mainland. The majority of the fleet of 46 of these locomotives was operated by the BR sector Railfreight Distribution, but some were operated by SNCF.

Production was carried out by a consortium of ABB and Brush Traction between 1993 and 1996. The body is similar to that of the class 60 diesel locomotive also built by Brush, but has other noses. Each locomotive has two three-axle bogies which also carry the contact shoes for operation under 750 V DC. While they have an output of 5,040 kW (6,760 hp) under 25 kV AC, power is reduced to 4,000 kW (5,360 hp) under DC.

After privatization, new operators in Britain were GB Railfreight, EWS and DB Cargo UK. In 2009, part of the fleet was equipped with the TVM-430 signalling system for use on High Speed 1. Since 2015, the class 92 also hauls the Caledonian Sleeper. Meanwhile, some have been sold to Transagent Rail of Croatia, DB Cargo Romania and DB Cargo Bulgaria.

General
Built1993-1996
ManufacturerABB, Brush Traction
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length70 ft 1 in
Wheelbase56 ft 6 in
Rigid wheelbase14 ft 1 in
Service weight277,760 lbs
Adhesive weight277,760 lbs
Axle load46,293 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC/DC
Electric system25,000 V 50 Hz, 750 V
Hourly power6,760 hp (5,041 kW)
Top speed87 mph
Starting effort90,000 lbf
Calculated Values
electric locomotive
third rail
freight
passenger
multi-system
last changed: 07/2025

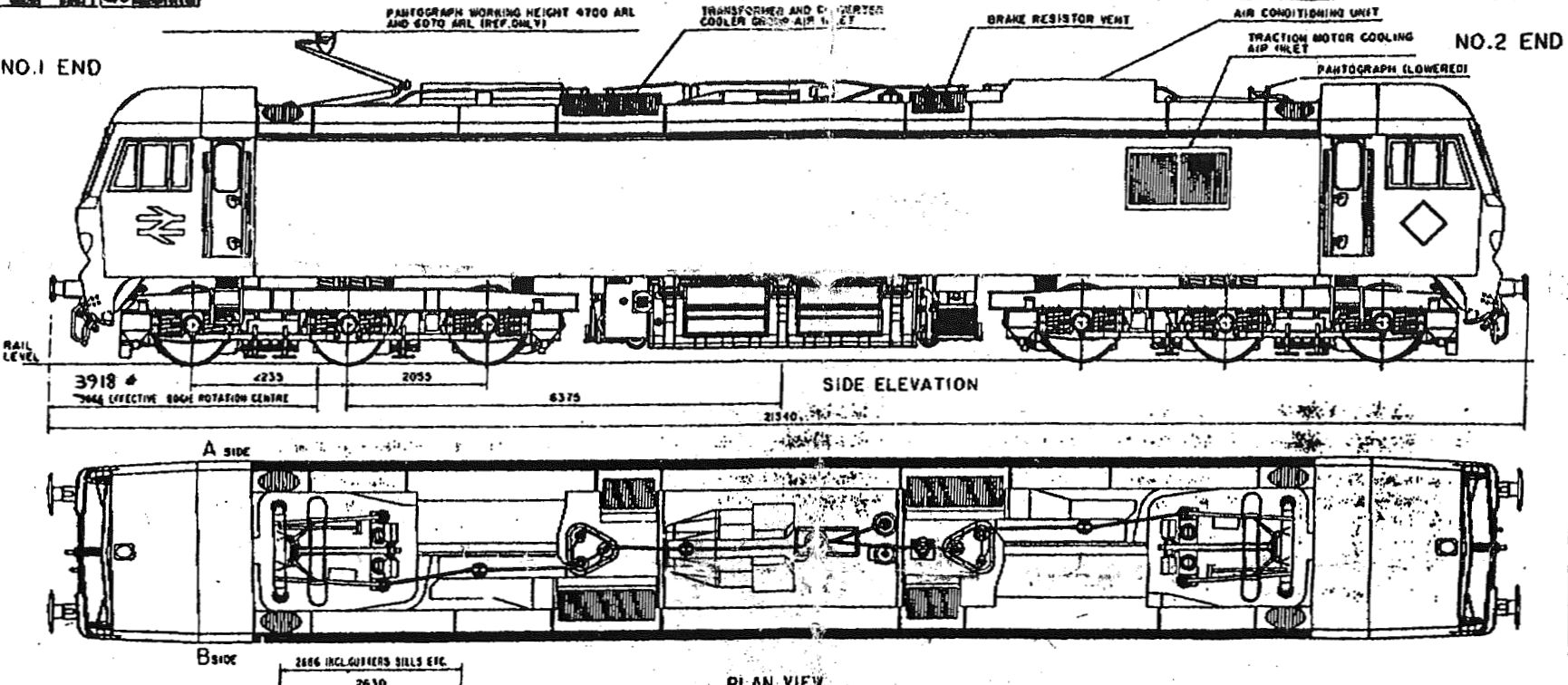

Image of locomotive
BRB (Residuary)
