New Zealand Railways class EO
go back
New Zealand | 1922
5 produced

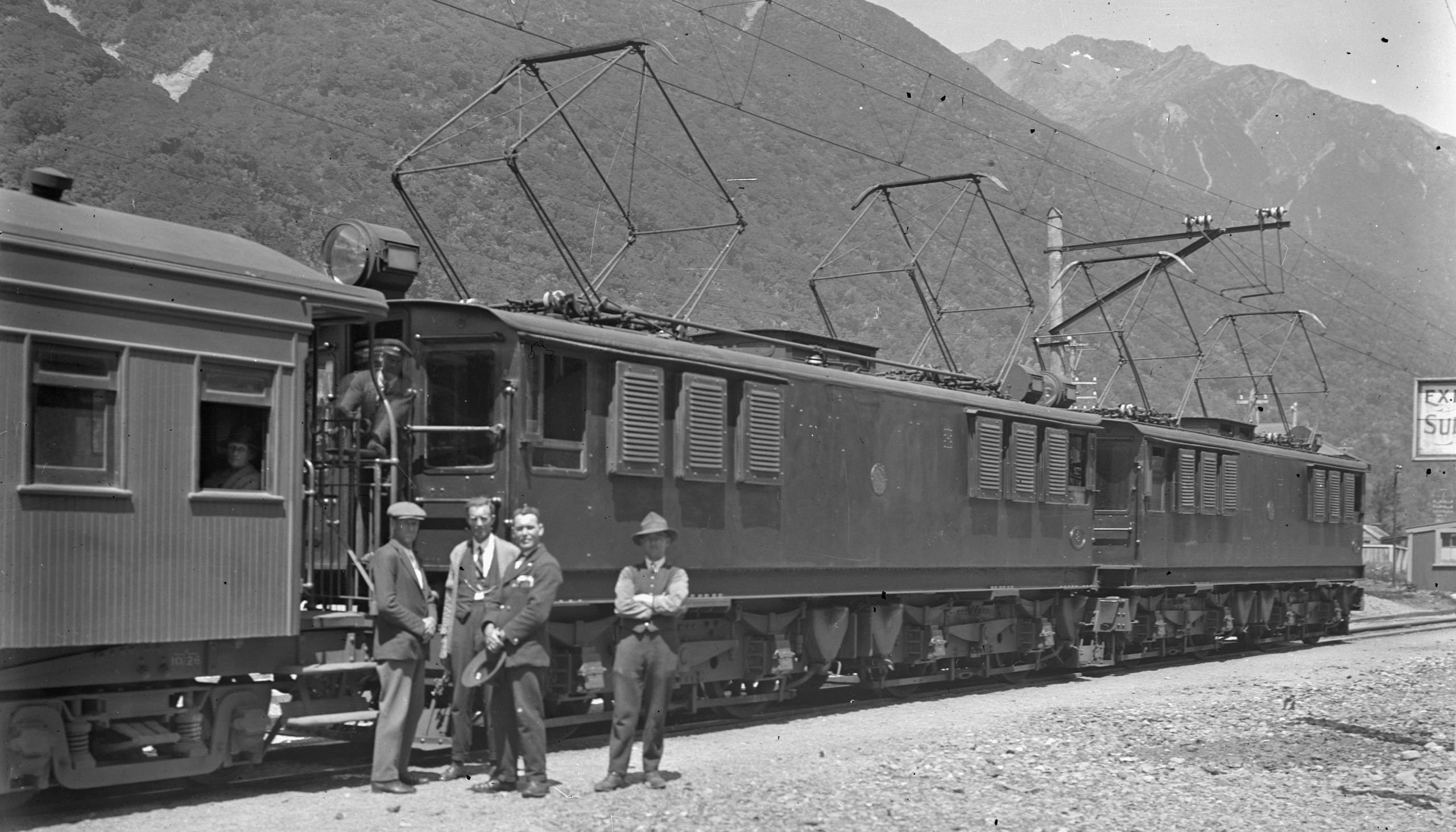

E<sup>O</sup> 3, presumably in 1923 at Arthur's Pass
EO 3, presumably in 1923 at Arthur's Pass
Albert Percy Godber

In 1907, the NZR started to build Otira Tunnel in the Southern Alps to cross Arthur's Pass. As the tunnel had a length of 5.3 miles (8.5 km) and an incline of 1 in 33 (3 percent), it was unsuited for steam traction. So a contract was put out to build a power station, overhead lines and six locomotives that was won by English Electric. Five of these locomotives were delivered for regular service in 1923 which collected their power from the 1,500-Volt overhead lines, while the sixth one was a battery-electric locomotive for maintenance.

The five locomotives for overhead service were numbered E 2 to E 6. They were four-axle boxcab locomotives with a total of 680 hp and their nickname was “trams”. A distinctive feature were the ventilation grilles on the sides. After the EC had been introduced in 1928, the E was renamed to EO to designate that they were operated at Otira. Although they originally had two cabs, one cab was removed in 1940. From 1942, they were always used in a combination of three. Their service ended in 1968 when they were replaced by the class EA. This class later also became EO. From the original class, only No. 3 was preserved by the Canterbury Railway Society. It is in operating order again since 1977 and got its second cab back. Today it is running on the Ferrymead Railway, together with EC 7.

General
Built1922
ManufacturerEnglish Electric
Wheel arr.B-B
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length38 ft 5 in
Service weight110,208 lbs
Adhesive weight110,208 lbs
Axle load27,552 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Continuous power680 hp (507 kW)
Top speed40 mph
Starting effort14,000 lbf
Calculated Values
electric locomotive
freight
passenger
