Manchester, Sheffield & Lincolnshire No. 117 and 121
London, Brighton & South Coast No. 117 and 121
go back
Great Britain | 1853
2 produced

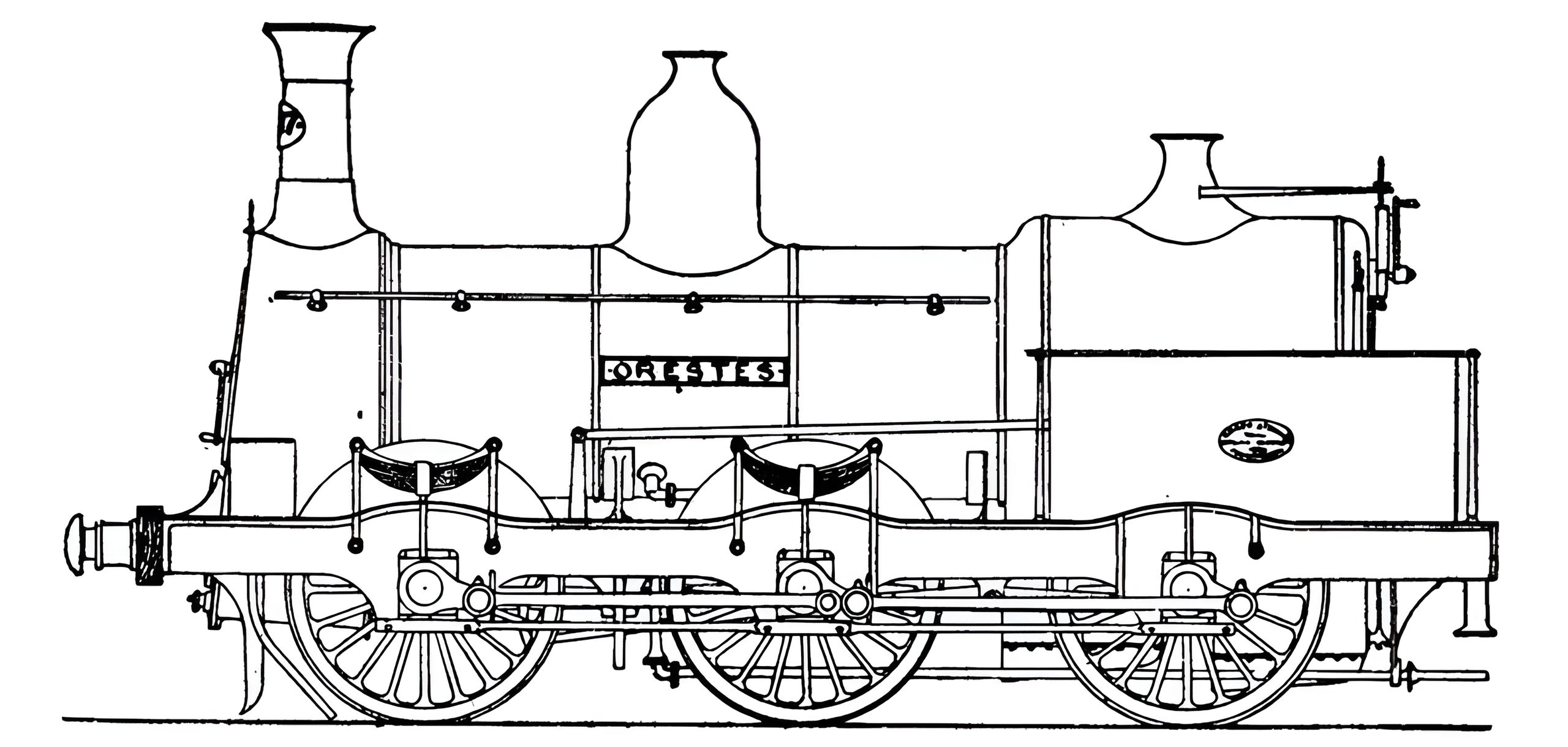

No. 117 “Orestes”
No. 117 “Orestes”
Locomotive Magazine, October 1896

In 1853 and 1854, the Manchester, Sheffield & Lincolnshire Railway received two 0-6-0 goods locomotives from Sharp, Stewart & Co. which were probably the most powerful standard freight locomotives in the UK at this time. They had a large firebox with a direct heating surface of 145 square feet or 13.5 m² that was located above the third driving axle. As usual for a 0-6-0, the cylinders and valve gear were on the inside, with only the coupling rods on the outside.

The first one, No. 117 “Orestes”, was delivered in September 1853 and No. 121 “Europa” followed in February of the following year. Later in this year, the LB&SCR bought these two locomotives as they were apparently too powerful for the tasks of the MS&LR. At their new owner, they were used to haul chalk trains with 50 loaded wagons. In 1877 and 1878, they were renumbered to 362 and 370. The second one was withdrawn in 1886, but the other one was renumbered again to 398 in 1887 and withdrawn in 1888.

General
Built1853, 1854
ManufacturerSharp, Stewart & Co.
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase14 ft
Rigid wheelbase14 ft
Service weight75,040 lbs
Adhesive weight75,040 lbs
Axle load30,240 lbs
Fuel capacitycoal
Boiler
Firebox area145.6 sq ft
Tube heating area1,426.9 sq ft
Evaporative heating area1,572.5 sq ft
Total heating area1,572.5 sq ft
Power Plant
Driver diameter60.5 in
Expansion typesimple
Power
Power sourcesteam
Calculated Values
steam locomotive
freight
last changed: 03/2026

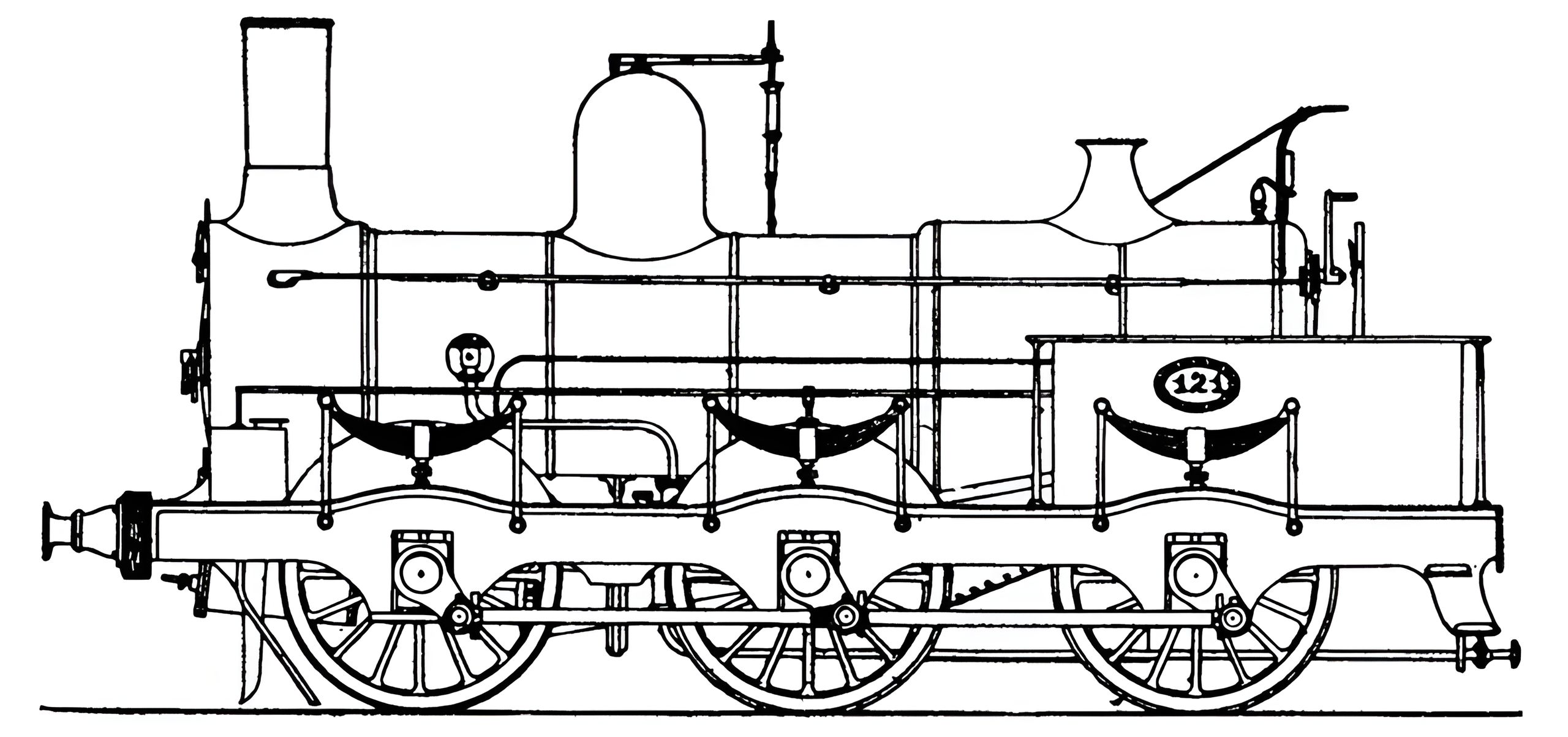

No. 121 “Europa” after the rebuild with the new boiler
No. 121 “Europa” after the rebuild with the new boiler
Locomotive Magazine, October 1896
