Nigerian Railways River class
go back
Nigeria | 1947
136 produced

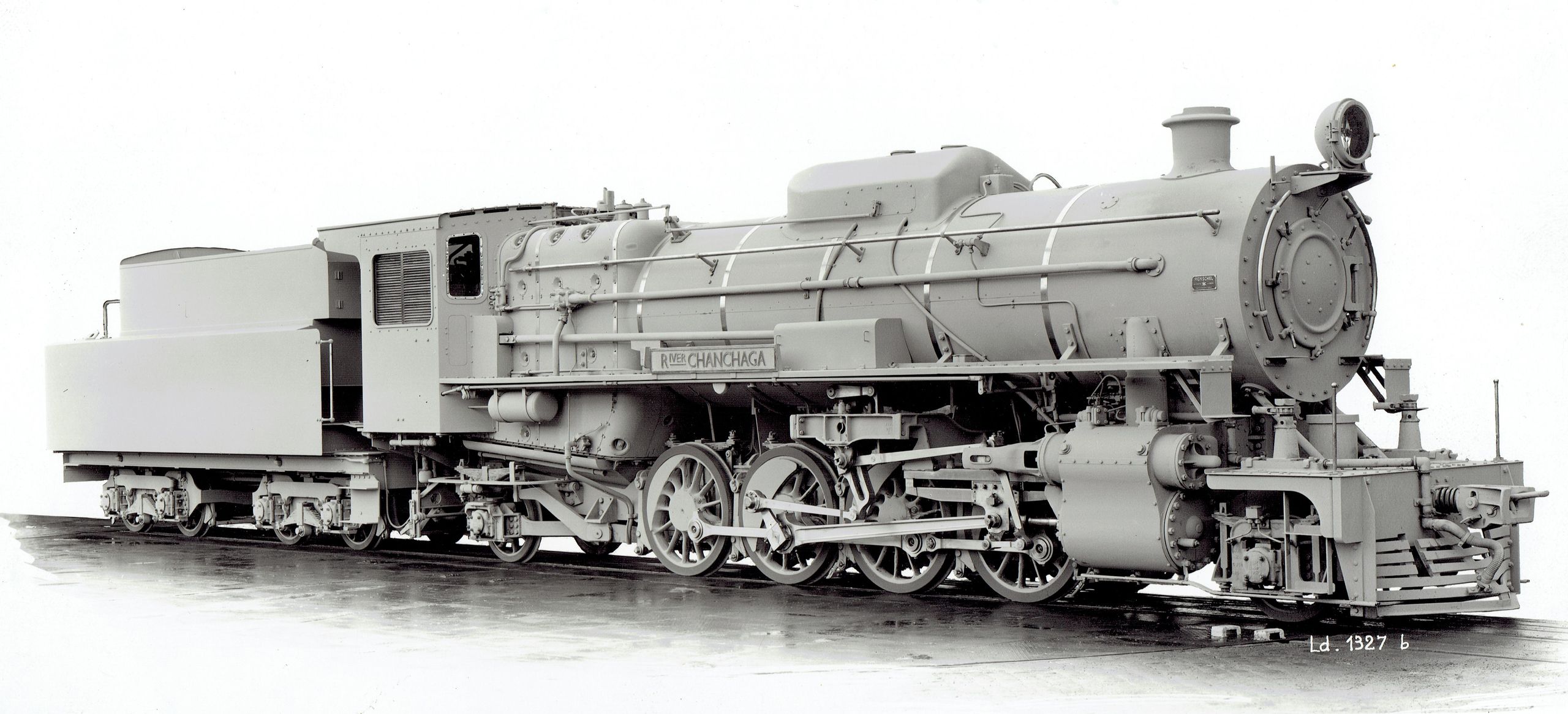

No. 205 “River Chachaga,” built by Henschel, on a factory photo
No. 205 “River Chachaga,” built by Henschel, on a factory photo
flickr/Historical Railway Images

In 1947, Vulcan Foundry built the first 20 locomotives of the River class for the Nigerian Railways. These were 2-8-2 freight locomotives ordered to cope with the rapidly increasing post-war traffic, what most of all included peanuts. The Hulson-Tuyere grate had an area of 38 square feet, what was suitable for low-calorific coal from Nigeria. The leading and trailing axles had roller bearings. The tender had a capacity of 4,000 gallons of water and ten tons of coal.

Until 1954, more batches were ordered from Vulcan Foundry and North British. One order in 1953 for 15 that was to come from Vulcan Foundry was instead built by Henschel in Germany. The last batch of 30 built by Vulcan Foundry in 1954 also had roller bearings on the driving axles. These were the last steam locomotives placed into service by the Nigerian Railways. Some were later converted to burn oil. Similar locomotives were built for Malawi and East Africa.

General
Built1947-1954
ManufacturerVulcan Foundry, North British, Henschel
Wheel arr.2-8-2 (Mikado)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Wheelbase30 ft 2 in
Rigid wheelbase13 ft 3 in
Total wheelbase56 ft 5 in
Service weight161,560 lbs
Adhesive weight114,548 lbs
Total weight270,928 lbs
Axle load29,064 lbs
Water capacity4,804 us gal
Fuel capacity22,400 lbs (coal)
Boiler
Grate area38 sq ft
Firebox area163 sq ft
Tube heating area1,732 sq ft
Evaporative heating area1,895 sq ft
Superheater area489 sq ft
Total heating area2,384 sq ft
Power Plant
Driver diameter48 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 18 x 26 in
Power
Power sourcesteam
Estimated power1,600 hp (1,193 kW)
Starting effort29,835 lbf
Calculated Values
steam locomotive
freight
last changed: 09/2025

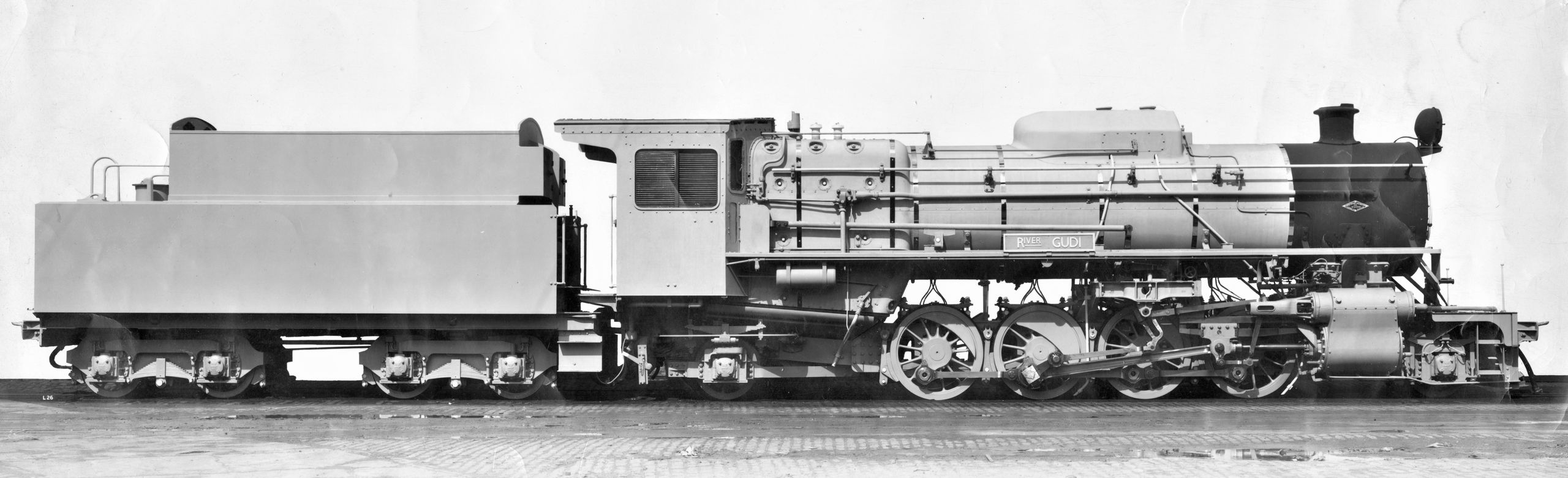

No. 174 “River Gudi,” built by North British, on a factory photo
No. 174 “River Gudi,” built by North British, on a factory photo
flickr/Historical Railway Images
