Mozambique Railways No. 101 to 104
go back
Mozambique | 1923
4 produced

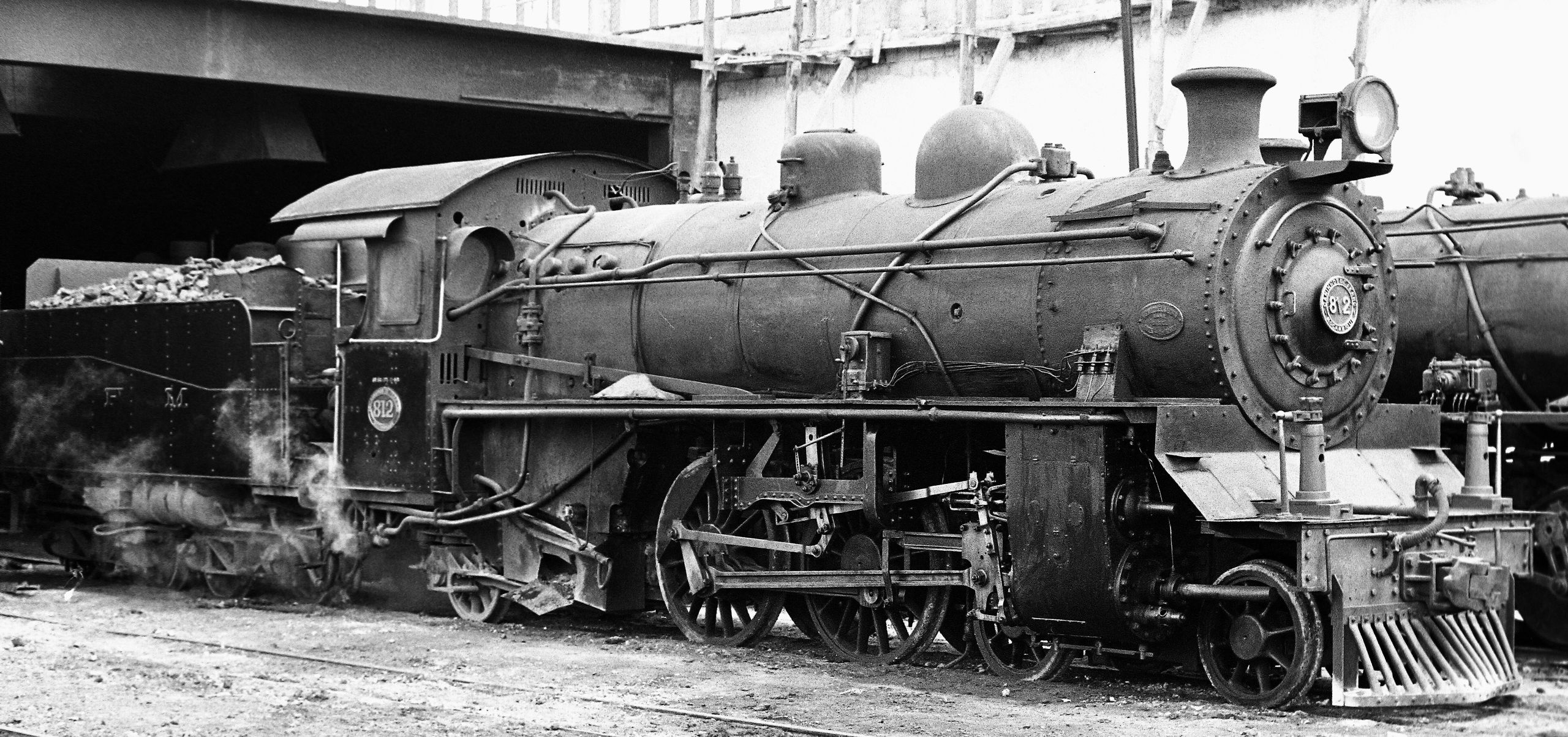

No. 812, ex 102, in 1974 at Nampula
No. 812, ex 102, in 1974 at Nampula
flickr/Historical Railway Images

In 1923, Henschel delivered ten locomotives to the Mozambique Railways. These were four 4-4-2, four 2-4-2 and two 2-8-2. The Atlantics had the works numbers 19906 to 19910 and were originally numbered 101 to 104 by their operator. They had a wide firebox with a huge grate mounted between the rear driving axle and the trailing axle that was originally designed for burning wood, but was later operated with coal. Unfortunately, it is hard to obtain technical specifications for these locomotives.

They were allocated to the shed at Nampula and operated in northern Mozambique. Later they were renumbered 811 to 814 and fitted with smoke deflectors. Still in operation between Nacala and Lumbo in the eighties, they were likely the last Atlantics in regular service anywhere in the world. 813 survived into the 21st century and there are reports of it being restored to working condition.

General
Built1923
ManufacturerHenschel
Wheel arr.4-4-2 (Atlantic)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Fuel capacitywood
Boiler
Power Plant
Expansion typesimple
Power
Power sourcesteam
Calculated Values
steam locomotive
express
last changed: 09/2025
