Missouri Pacific class MT-73
go back
United States | 1921
19 produced

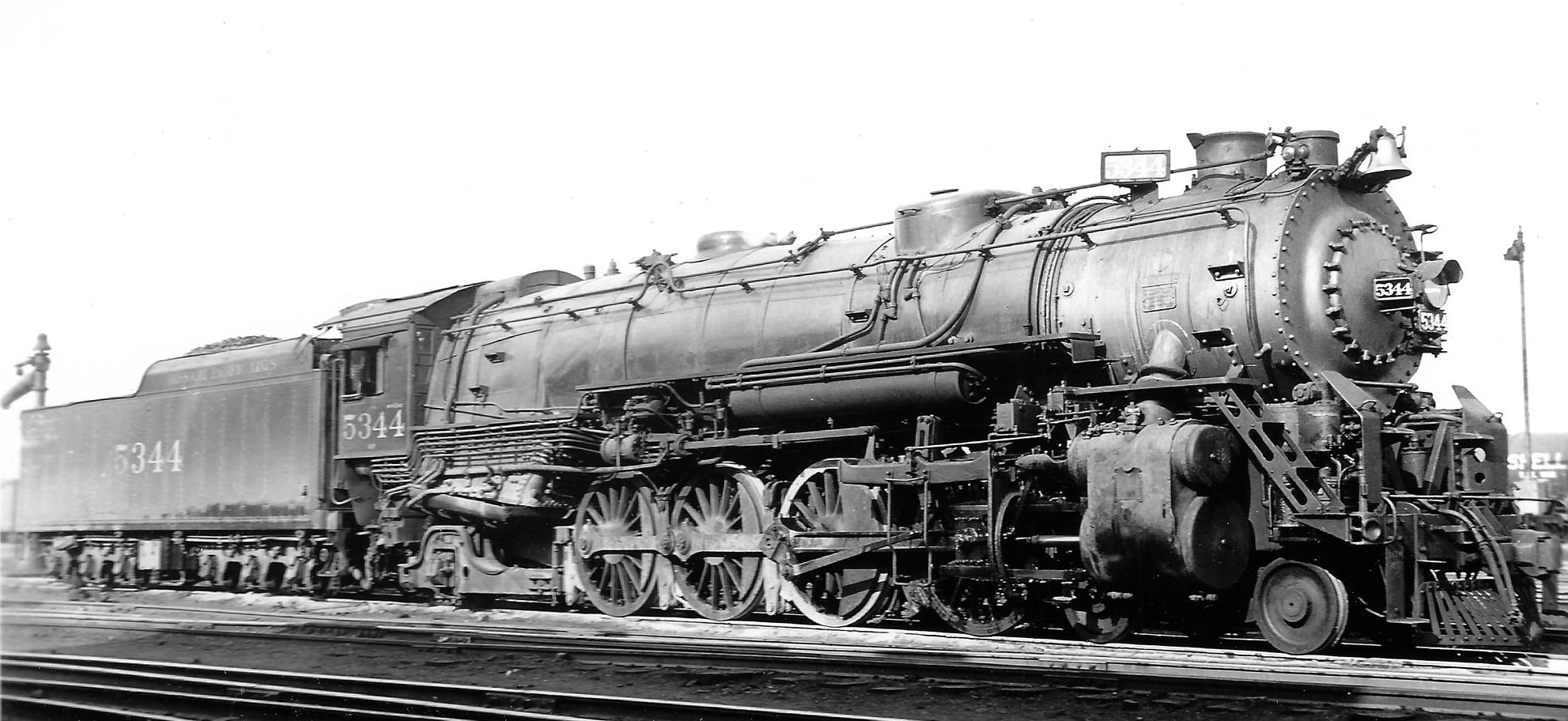

No. 5344, built in 1930
No. 5344, built in 1930
collection Taylor Rush

After World War I, the Missouri Pacific ordered a 4-8-2 that would be faster than the MT-63, but had to be limited to an adhesive weight of 226,000 pounds. The goal was to use the heating surface as best as possible, what was accomplished by curved circulating plates and thermic syphons. They also got a large superheater with a surface of more than 1,000 square feet. With a driver diameter of 73 inches, it was designated MT-73. Numbers 5308 to 5312 were built by ALCO-Schenectady in 1921, followed by 5313 to 5316 in 1923.

Since these were still not powerful enough for some passenger services, the following two batches were heavier, had a larger boiler, a pressure of 250 instead of 210 psi and roller bearings. These were 5335 to 5339 built by ALCO-Brooks in 1927 and 5340 to 5344 built by ALCO-Schenectady in 1930. In the result these were considerably more powerful, but could only be used on lines which had been upgraded for the higher weight. While the first two batches were retired in 1955, the last two already followed in the next year.

Variant5308-53165335-5344
General
Built1921, 19231927, 1930
ManufacturerALCO
Wheel arr.4-8-2 (Mountain)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length88 ft 5 1/2 in110 ft 5 1/2 in
Length loco54 ft 5 3/4 in56 ft 1 3/4 in
Wheelbase41 ft 4 in42 ft 2 in
Rigid wheelbase19 ft 7 in
Total wheelbase77 ft 2 in88 ft 3 1/4 in
Empty weight296,200 lbs352,000 lbs
Service weight335,000 lbs396,000 lbs
Adhesive weight226,000 lbs267,500 lbs
Total weight527,800 lbs716,000 lbs
Axle load56,500 lbs66,875 lbs
Water capacity10,000 us gal14,000 us gal
Fuel capacity32,000 lbs (coal)26,000 lbs (coal)
Boiler
Grate area67 sq ft84.3 sq ft
Firebox area327 sq ft465 sq ft
Tube heating area3,607 sq ft4,661 sq ft
Evaporative heating area3,934 sq ft5,126 sq ft
Superheater area1,084 sq ft1,352 sq ft
Total heating area5,018 sq ft6,478 sq ft
Variant5308-53165335-5344
Power Plant
Driver diameter73 in
Boiler pressure210 psi250 psi
Expansion typesimple
Cylinderstwo, 27 x 30 in
Power
Power sourcesteam
Estimated power3,300 hp (2,461 kW)4,100 hp (3,057 kW)
Starting effort53,477 lbf63,663 lbf
Calculated Values
steam locomotive
passenger
express
last changed: 07/2025
Image of locomotive

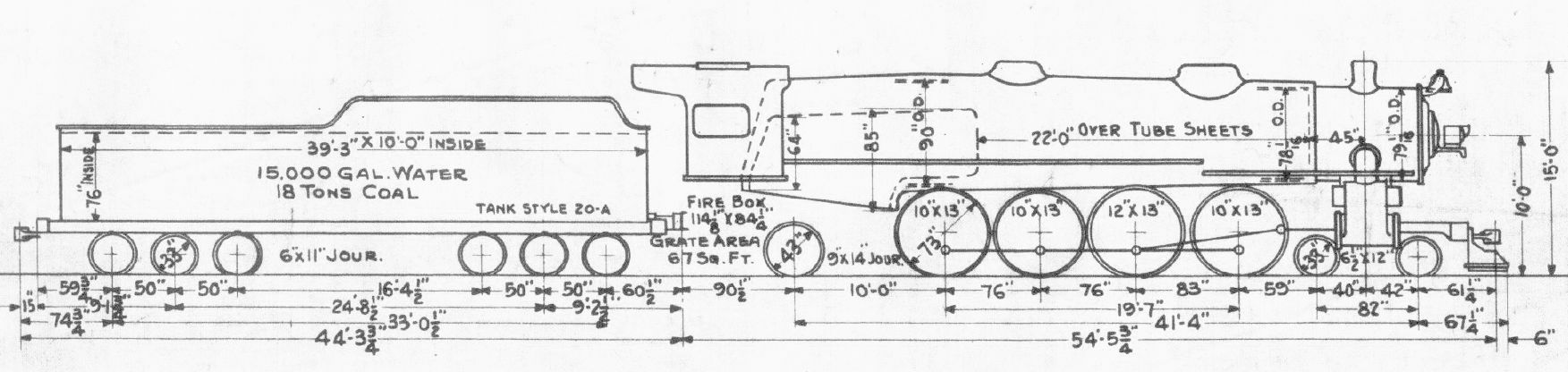

Missouri Pacific Locomotive Diagrams, 1938
