Gold Coast Government Railways class 221
go back
Ghana | 1924
24 produced

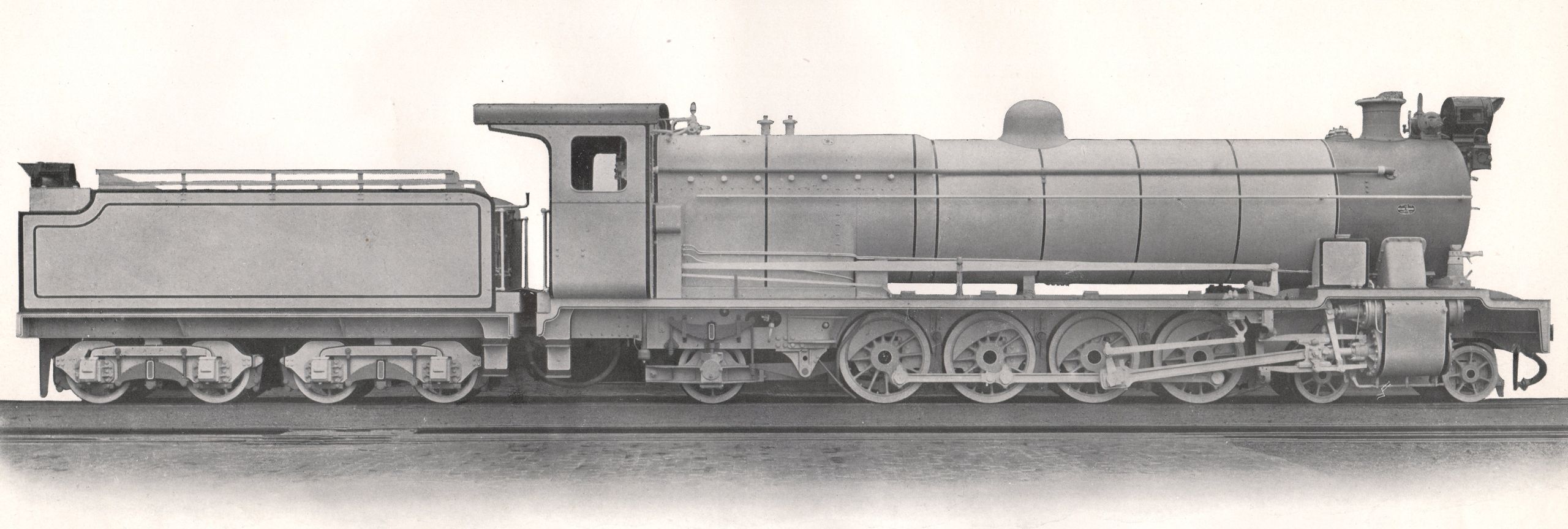

Image of locomotive
flickr/Historical Railway Images

The class 221 was a successful design of Mountain locomotive that was built by Vulcan Foundry over a long period of 24 years. It had a long and sleek boiler with Belpaire fireboxcombustion chamber and Robinson superheater. The drivers measured only three feet and nine inches or 1,143 mm. With cylinders of 19.25 by 24 inches, this led to a tractive effort of more than 30,000 pounds or 138 kN. The first four were completed in 1924, followed by five more in 1938. The last and largest batch of 15 was delivered in 1948.

General
Built1924, 1938, 1948
ManufacturerVulcan Foundry
Wheel arr.4-8-2 (Mountain)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Wheelbase30 ft 9 in
Rigid wheelbase12 ft 9 in
Total wheelbase55 ft 8 1/4 in
Service weight164,976 lbs
Adhesive weight116,480 lbs
Total weight238,336 lbs
Water capacity3,002 us gal
Fuel capacity14,560 lbs (coal)
Boiler
Grate area32.1 sq ft
Firebox area198 sq ft
Tube heating area1,775 sq ft
Evaporative heating area1,973 sq ft
Superheater area347 sq ft
Total heating area2,320 sq ft
Power Plant
Driver diameter45 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 19 1/2 x 24 in
Power
Power sourcesteam
Estimated power1,400 hp (1,044 kW)
Starting effort31,028 lbf
Calculated Values
steam locomotive
freight
