Central RR of New Jersey class E-1
go back
United States | 1912
25 produced

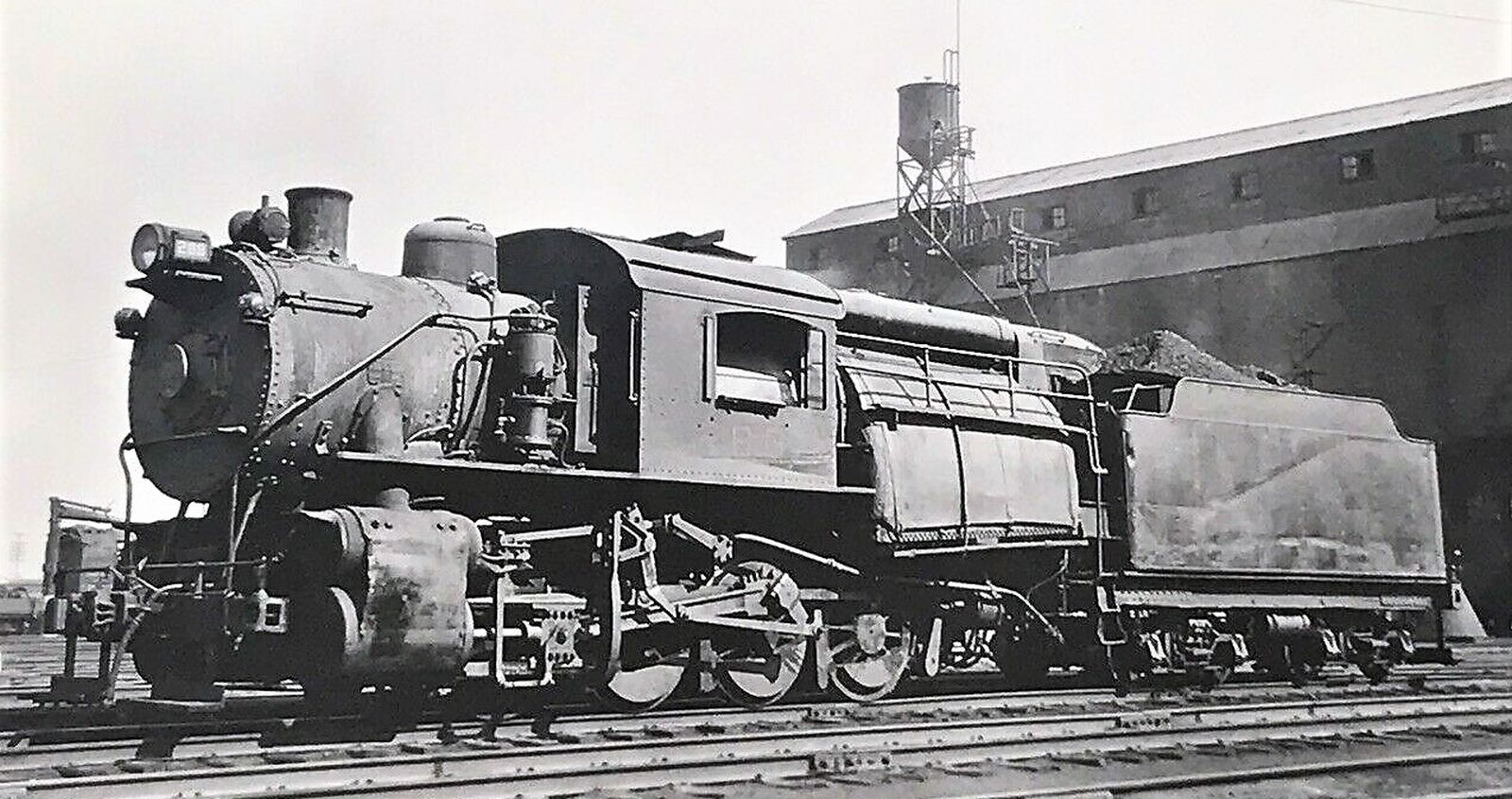

Image of locomotive
flickr/stratfordman72

The class E-1 consisted of 25 0-8-0 Camelback switchers built by ALCO-Schenectady between 1912 and 1918. For burning fine anthracite, they had a large grate of 91.6 square feet. The Wootten firebox had a surface of 202 square feet, with additional 18 square feet in a combustion chamber. They were also designated 8S53 due to their eight wheels and 53,000 pounds of tractive effort. The superheated class E-2s had the same designation. The E-1 was retired between 1948 and 1954.

General
Built1912-1918
ManufacturerALCO
Wheel arr.0-8-0 (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft 3 in
Rigid wheelbase15 ft 3 in
Total wheelbase49 ft 10 1/8 in
Service weight230,000 lbs
Adhesive weight230,000 lbs
Total weight375,000 lbs
Axle load57,500 lbs
Water capacity7,500 us gal
Fuel capacity24,000 lbs (coal)
Boiler
Grate area91.6 sq ft
Firebox area220 sq ft
Tube heating area3,132 sq ft
Evaporative heating area3,352 sq ft
Total heating area3,352 sq ft
Power Plant
Driver diameter56 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 24 x 30 in
Power
Power sourcesteam
Estimated power1,650 hp (1,230 kW)
Starting effort52,457 lbf
Calculated Values
steam locomotive
switcher
camelback
