Egyptian National Railways class 30
go back
Egypt | 1907
20 produced

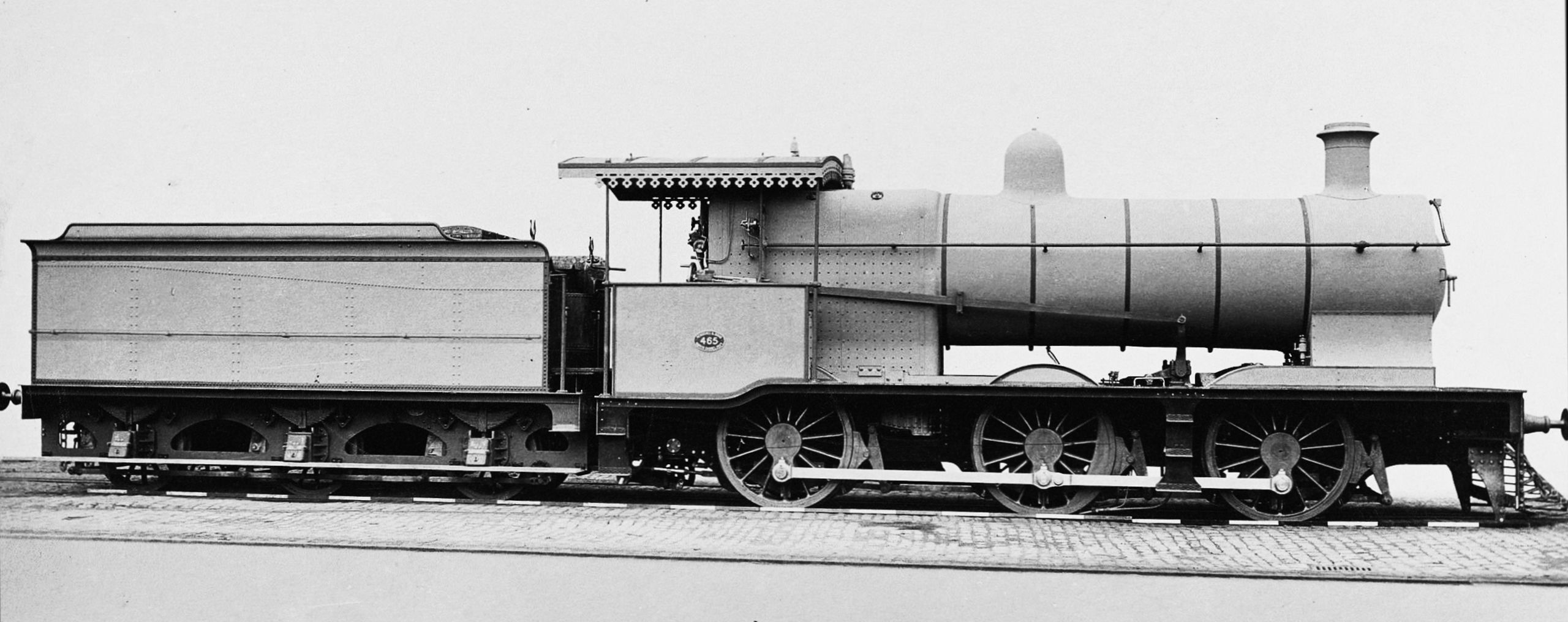

Image of locomotive
Henschel

In 1907, Henschel delivered 20 0-6-0 freight locomotives to the Egyptian State Railway which were numbered 459 to 478. They were the heaviest locomotives of this wheel arrangement in Egypt. After 50 years, they were the first inside frame locomotives in this country. The cylinders were mounted on the inside of the frames and were controlled by inside Walschaerts valve gear. The boiler was pitched high with a large gap underneath and had a large Belpaire firebox. In heavy freight service, their coal consumption was 62 to 66 pounds per mile. Number 464 that was identified as the class member with the highest consumption, later received a smokebox superheater that led to a consumption that was roughly 15 percent lower than the class average.

General
Built1907
ManufacturerHenschel
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase17 ft 3 in
Rigid wheelbase17 ft 3 in
Service weight122,080 lbs
Total weight219,912 lbs
Water capacity4,804 us gal
Fuel capacitycoal
Boiler
Grate area24.7 sq ft
Firebox area161.5 sq ft
Tube heating area1,808 sq ft
Evaporative heating area1,969.5 sq ft
Total heating area1,969.5 sq ft
Power Plant
Driver diameter60 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 19 x 26 in
Power
Power sourcesteam
Estimated power900 hp (671 kW)
Starting effort23,934 lbf
Calculated Values
steam locomotive
freight
