New Haven class Y-3
US Railroad Administration 0-8-0
go back
United States | 1920
35 produced

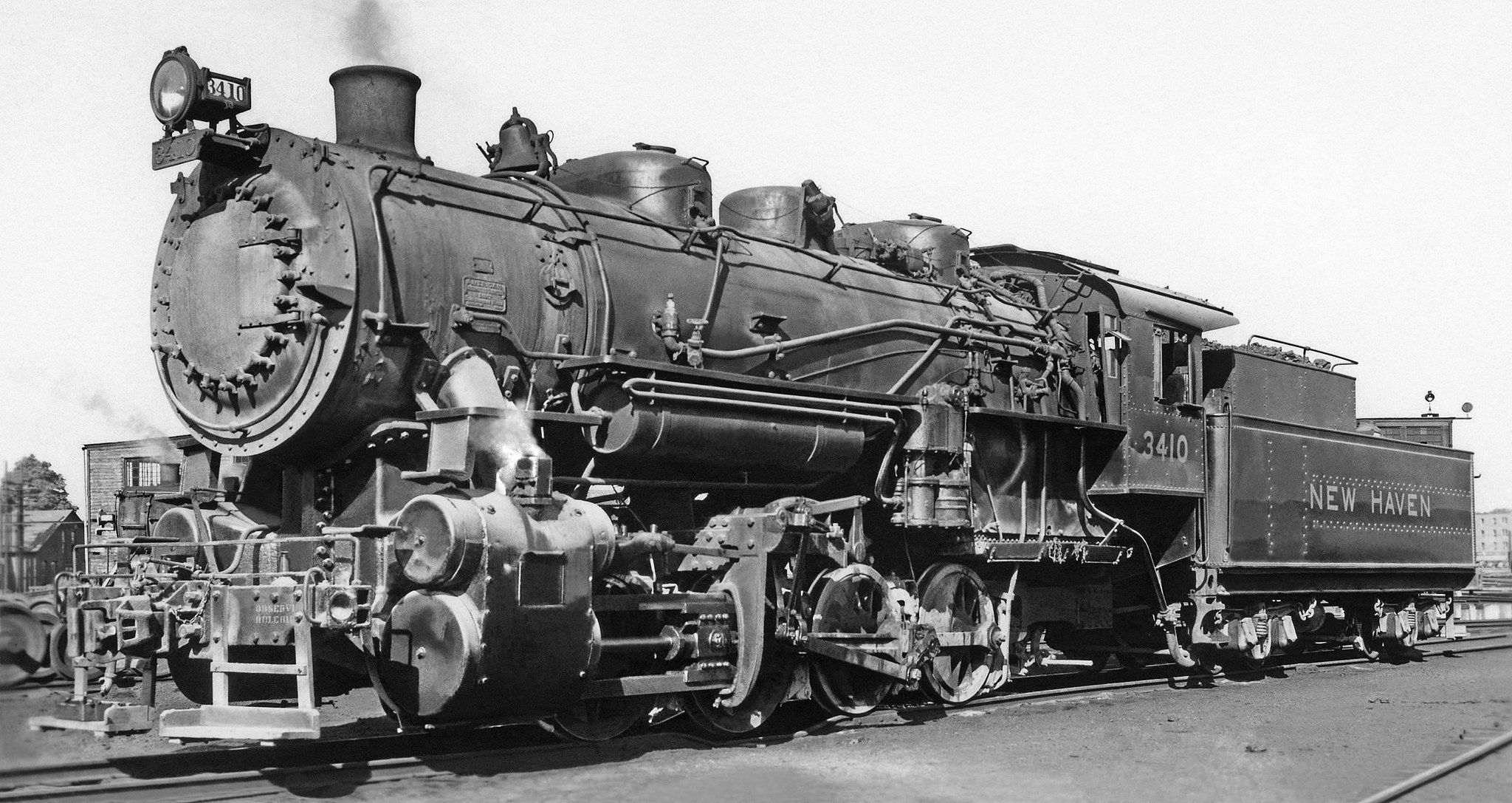

No. 3410 in the late forties at Hartford, Connecticut
No. 3410 in the late forties at Hartford, Connecticut
Mike Robbins

The New Haven operated a total of 35 of the original USRA 0-8-0 design. All were built by ALCO-Schenectady, 15 in 1920 and 1923 directly for the New Haven and 20 in 1922 originally for the Chicago & North Eastern. The specs given in the diagrams of the operator differ a bit from the original USRA diagrams, most notable a boiler pressure of 190 instead of 175 psi. The firebox surface given below contains three arch tubes with a total area of 18 square feet. They were retired between 1949 and 1952.

General
Built1920-1923
ManufacturerALCO
Wheel arr.0-8-0 (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length69 ft 11 3/4 in
Wheelbase15 fr
Rigid wheelbase15 ft
Total wheelbase53 ft 0 1/2 in
Service weight219,000 lbs
Adhesive weight219,000 lbs
Total weight381,000 lbs
Axle load57,000 lbs
Water capacity8,750 us gal
Fuel capacity26,000 lbs (coal)
Boiler
Grate area47 sq ft
Firebox area204 sq ft
Tube heating area2,514 sq ft
Evaporative heating area2,718 sq ft
Superheater area652 sq ft
Total heating area3,370 sq ft
Power Plant
Driver diameter51 in
Boiler pressure190 psi
Expansion typesimple
Cylinderstwo, 25 x 28 in
Power
Power sourcesteam
Estimated power1,475 hp (1,100 kW)
Starting effort55,417 lbf
Calculated Values
steam locomotive
switcher
