Grande Compagnie du Luxembourg No. 56 to 71 and 80 to 90
Belgian Railway type 35
go back
Belgium | 1866
27 produced

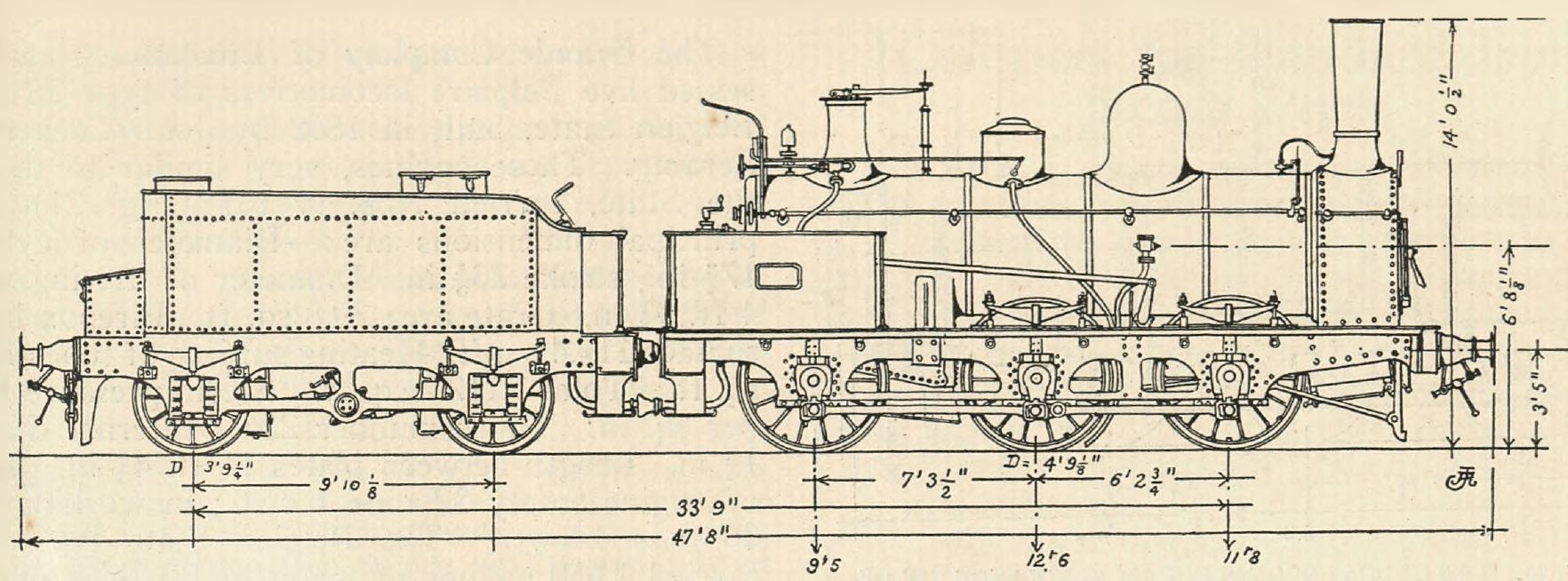

Image of locomotive
Locomotive Magazine, August 1932

Since the Luxembourg line that went from Brussels over Namur to Luxembourg had challenging terrain, the Grande Compagnie du Luxembourg needed all-adhesion locomotives for freight service as early as in the 1860s. Starting with No. 56, they received a type that had been designed by Kitson, but built by Belgian manufacturers. It had inside cylinders and valve gear, outside frames and an open footplate

In 1866, numbers 56 to 63 were built by Compagnie Belge founded by Charles Evrard that later became the well-known company of Franco-Belge. In the same year, 64 to 71 came from Cockerill. One year later, 80 to 90 were added by the Compagnie Belge. There were some differences among both manufacturers, like a shorter wheelbase for the Cockerill locomotives.

They often hauled long freight trains double-headed, most notably on the section between Schaerbeek and Namur. When the Grande Compagnie du Luxembourg was nationalized in 1873, these locomotives became type 35 and carried the numbers 911 to 937. The State Railway also provided them with a standard cab. The first one was withdrawn in 1882 and the last one in 1904.

General
Built1866-1867
ManufacturerCompagnie Belge, Cockerill
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length47 ft 8 in
Wheelbase13 ft 6 1/4 in
Rigid wheelbase13 ft 6 1/4 in
Total wheelbase33 ft 9 in
Service weight73,808 lbs
Adhesive weight73,808 lbs
Axle load27,552 lbs
Fuel capacitycoal
Boiler
Grate area21.9 sq ft
Firebox area91.4 sq ft
Tube heating area1,096.1 sq ft
Evaporative heating area1,187.5 sq ft
Total heating area1,187.5 sq ft
Power Plant
Driver diameter57.1 in
Boiler pressure128 psi
Expansion typesimple
Cylinderstwo, 17 3/4 x 25 1/2 in
Power
Power sourcesteam
Estimated power420 hp (313 kW)
Starting effort15,317 lbf
Calculated Values
steam locomotive
freight
