Victorian Railways class Y
go back
Australia | 1885
31 produced

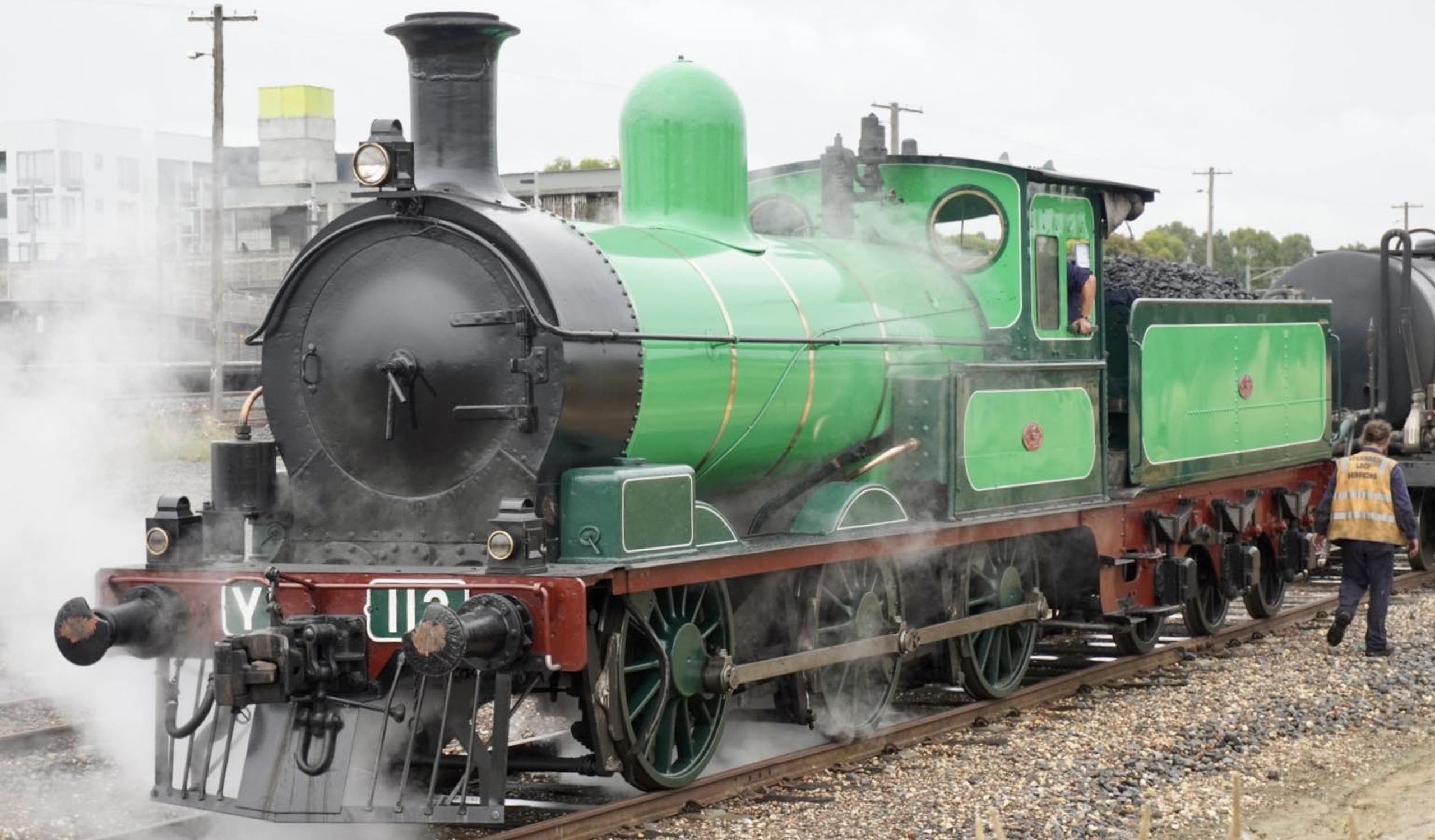

Y112 in March 2021
Y112 in March 2021
Stefan Sanders

The class Y was the heaviest and most powerful 0-6-0 locomotive in Australia when it was introduced in the 1880s. It was one of several classes designed with standard parts by Edward Alexander Jeffreys for the VR, but the prototype was built by Kitson & Co. in England in 1885. 30 more were built in Australia by Phoenix Foundry 1888 and 1889. Although built as goods locomotives, they were also used in suburban passenger service. Between 1904 and 1909 they were rebuilt with new boilers with a higher pressure.

Withdrawals started in 1926, but greater numbers were only withdrawn from the 1940s. In later years, they were mostly used as shunters and the last one was gone in 1963. From three which have been preserved, Y108 is on static display in the Newport Railway Museum. Y112 is in working order since 1996. Sometimes it is running with its original number Y419. The third one that survived was Y109 that had been rebuilt into a diesel-mechanical locomotive in 1954. Parts of it were used for the restoration of Y112 and its remains can today be found at Meringur.

Variantas builtrebuilt
General
Built1885, 1888-18891904-1909
ManufacturerKitson & Co., Phoenix FoundryVR
Wheel arr.0-6-0 (Six-coupled)
Gauge5 ft 3 in (Irish broad gauge)
Dimensions and Weights
Wheelbase15 ft
Rigid wheelbase15 ft
Service weight94,080 lbs98,224 lbs
Adhesive weight94,080 lbs98,224 lbs
Total weight152,320 lbs165,760 lbs
Water capacity2,642 us gal
Fuel capacity11,200 lbs (coal)
Boiler
Grate area21 sq ft
Firebox area95 sq ft101.8 sq ft
Tube heating area1,056 sq ft1,333.2 sq ft
Evaporative heating area1,151 sq ft1,435 sq ft
Total heating area1,151 sq ft1,435 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter54 in
Boiler pressure140 psi175 psi
Expansion typesimple
Cylinderstwo, 18 x 26 in
Power
Power sourcesteam
Estimated power450 hp (336 kW)550 hp (410 kW)
Starting effort18,564 lbf23,205 lbf
Calculated Values
steam locomotive
freight
last changed: 02/2206
