Crown Prince Rudolf Railway III
Imperial-Royal State Railways class 34 and Italian State Railway class 194
go back
| 1868
43 produced

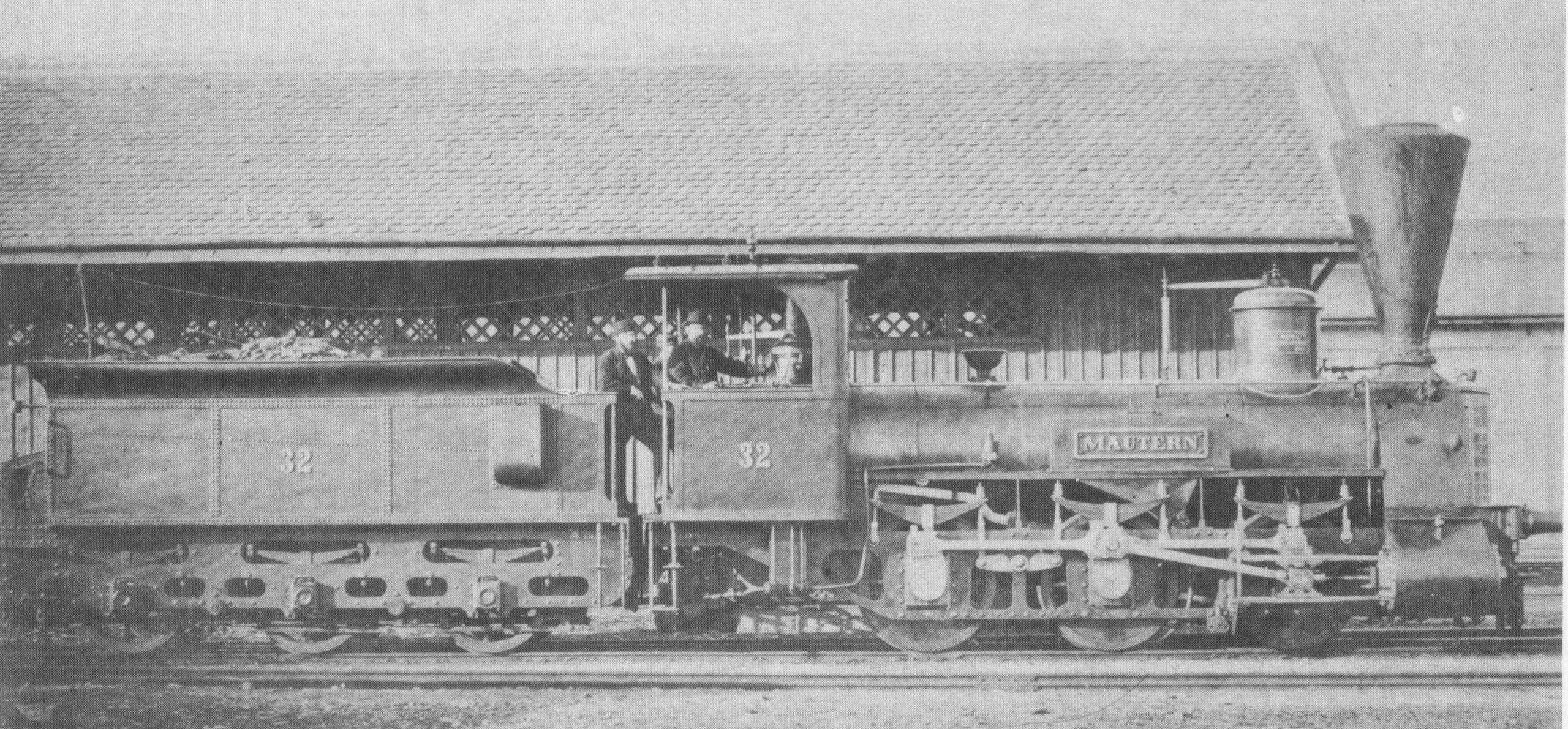

No. 32 “Mautern”, later 34.16
No. 32 “Mautern”, later 34.16

The series III was an 0-6-0 freight locomotive, similar to many others in the Austro-Hungarian Empire. It had outside frames, outside cylinders, Hall cranks and inside valve gear. A total of 43 locomotives were built between 1868 and 1873 by Sigl at his Wien and Wiener Neustadt works, by Maffei and in the short-lived factory at Mödling. They received only even numbers between 2 and 74 and between 98 and 108.

They came to the kkStB in 1887 when the KRB was nationalized and later became class 34. In 1901, 34.29 was rebuilt into the 0-6-2T tank locomotive 65.01. 34.33 received a Brazda feed water heater. After World War I, 18 came to the BBÖ and retained their class number 34. They were used until 1929. The PKP had received nine locomotives, but these were already withdrawn before 1924. While the railway of the SHS state got seven and withdrew them between 1930 and 1932, the FS designated their three locomotives class 194 and used the last one until 1925.

General
Built1868-1873
ManufacturerSigl, Wiener Neustadt, Maffei, Mödling
Wheel arr.0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase10 ft 4 7/16 in
Rigid wheelbase10 ft 4 7/16 in
Empty weight69,225 lbs
Service weight77,162 lbs
Adhesive weight77,162 lbs
Fuel capacitycoal
Boiler
Grate area16.1 sq ft
Firebox area75.3 sq ft
Tube heating area1,173.3 sq ft
Evaporative heating area1,248.6 sq ft
Total heating area1,248.6 sq ft
Power Plant
Driver diameter46.3 in
Boiler pressure116 psi
Expansion typesimple
Cylinderstwo, 17 1/8 x 24 7/8 in
Power
Power sourcesteam
Estimated power335 hp (250 kW)
Top speed28 mph
Starting effort15,555 lbf
Calculated Values
steam locomotive
freight
last changed: 06/2026
